- Page 1 2498C/D Optical Power Meter User Manual China Electronics Technology Instruments Co., Ltd.
- Page 2 Foreword Thank you very much for choosing and using the 2498C/D optical power meter produced by China Electronics Technology Instruments Co., Ltd., which integrates high, sophisticated and cutting-edge technologies, making our product enjoy high cost performance among similar products. The Company follows the ISO9000 standard always during production and adheres to the customer-oriented and quality-first principles.
-
Page 3: Table Of Contents
Contents Chapter I Overview ............................. 1 Part I Instructions ............................3 Chapter II Instructions and Operation Methods ..................4 Section I Structure and Description of Optical Power Meter .............. 4 Section II Instructions of the optical power meter ................5 Part II Technical Description ........................ -
Page 4: Chapter I Overview
-50dBm to +26dBm is available. The 2498C/D optical power meter has two power meter modules, and only one of them can be selected at one time. Based on different optical source, it is divided into two types as shown in Table 1-1. - Page 5 Chapter I Overview However, it has self-discharging phenomenon. If the battery is stored at low voltage for a long time, it may damage the internal structure and shorten the service life due to self-discharge. Therefore, the lithium batteries should be charged every 3 to 6 months if they are stored for a long period of time. The lithium battery is a built-in battery and is stored along with the machine.
-
Page 6: Part I Instructions
Part I Instructions Part I Instructions... -
Page 7: Chapter Ii Instructions And Operation Methods

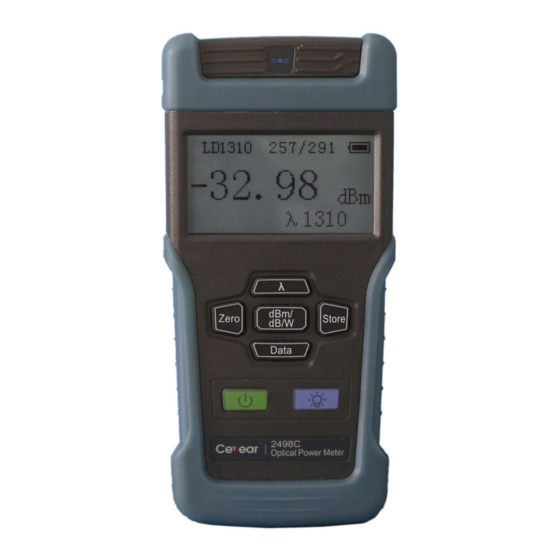

Section I Structure and Description of Optical Power Meter Appearance The appearance of the optical power meter is shown in Figure 2-1. Figure 2-1 Appearance Photo of 2498C/D Optical Power Meter Description of Panel 2.1 Dust cover The dust cover should be closed normally and only allowed to open when testing. The dust cover has the functions of dustproof, windproof etc., so as to avoid insertion loss or the test error caused by dust. -
Page 8: Section Ii Instructions Of The Optical Power Meter
LC, SC, or ST connector, it should be converted before using the 2498C/D for test. Pay attention to the intensity and wavelength of the input light to avoid damage to the instrument if the optical power is too large or exceeds the measurement range of the instrument. - Page 9 Chapter II Instructions and Operation Methods 1) Absolute measurement: According to the user's habits and test characteristics, press the [ ] key at any time to get linear (W) and logarithmic (dBm) readings. If the unit displayed on the screen is mw, μw or nw, the test result is linear;...
-
Page 10: Part Ii Technical Description
Part II Technical Description Part II Technical Description... -
Page 11: Chapter Iii Main Technical Indicators And Working Principles
Chapter III Main Technical Indicators and Working Principles Chapter III Main Technical Indicators and Working Principles Section I Main Technical Indicators and Environment Condition 1 Technical Indicators* 1 Technical Indicators* Power meter operating wavelength: 850nm, 1300nm, 1310nm, and 1550nm P1 module power range: -70dBm～+3dBm P2 module power range: -50dBm～+26dBm... -
Page 12: Section Ii Working Principle Of Optical Power Meter
EEPROM data memory STM32 MCU & Data Optical input Optical input analog-digital communication converter module Optical Light source control output circuit Upper cover plate component Power supply power-up module Figure 3-1 Block Diagram of the 2498C/D optical power meter... -
Page 13: Part Iii Maintenance Description
Part III Maintenance Description Part III Maintenance Description... -
Page 14: Chapter Iv Maintenance And Troubleshooting Of Optical Power Meters
2 Maintenance The 2498C/D is a precision instrument with high reliability and complex maintenance and calibration. a) When the instrument has a malfunction, it should be sent back to the Company for repair; b) If the deviation of the test value is found to be large or the output power value of the optical source is too small, check whether the input and output ports are contaminated. - Page 15 3 After-sales service The 2498C/D optical power meter is warranted for 18 months, and will be repaired free of charge if it fails during the warranty period. However, the following conditions are not covered by the free warranty. ...
