aci aSENSE RL Installation And Operation Instructions

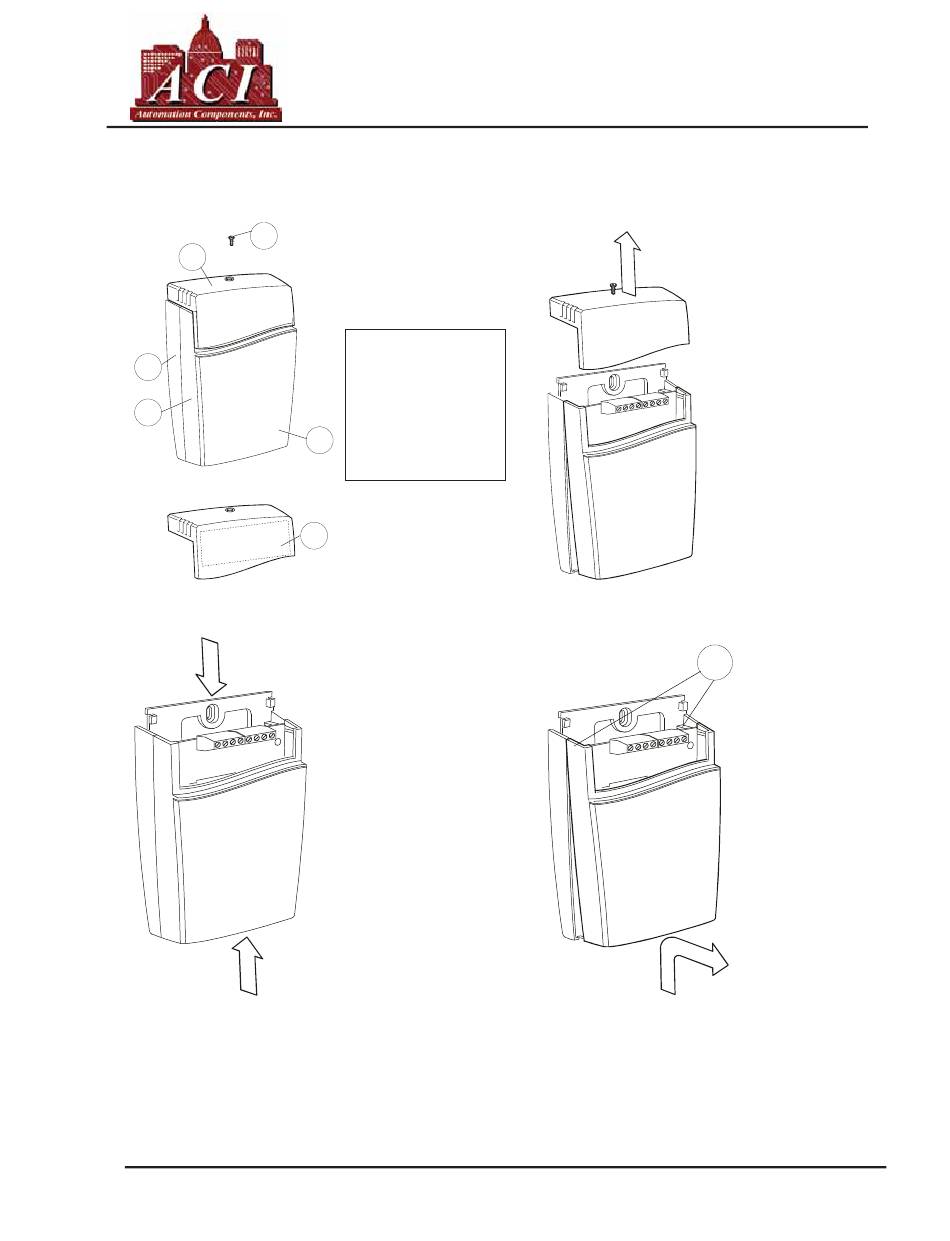

Push the front part with the lid upwards

while keeping the wall plate steady

Installation Instructions

I0000658Rev 1

Installation and Operation Instructions

1 top part

2 lid

3 front part

4 wall plate

5 screw

6 label with settings

inside the top part

Page 1 of 4

aSENSE RL

Dismounting of the sensor

Pull the top part upwards

Fold the front part with the lid forwards

and loose it from the hooks (#1)

AUTOMATION COMPONENTS, INC

2305 Pleasant View Road

Middleton, Wisconsin 53562

(888) 967-5224

www.workaci.com

Table of Contents

Do you have a question about the aSENSE RL and is the answer not in the manual?

Page 1 Installation and Operation Instructions aSENSE RL Dismounting of the sensor 1 top part 2 lid 3 front part 4 wall plate 5 screw 6 label with settings inside the top part Pull the top part upwards Push the front part with the lid upwards...
Page 2 (B) Press the lower edge of the case onto the wall plate to latch (Unit without Relay) The top part is pushed under the Terminals and jumpers on aSENSE RL. locking hooks of the wall plate The darker positions are default settings. and is secured with a screw Terminals and jumpers are located under the top part.
Page 3: Electrical Connections
(halfwave rectifier). A single transformer may be used for the entire system. Note 2: aSENSE RL can deliver a voltage or a current loop for Out(1) / Out(2). To change between voltage and current output mode the hardware jumpers are used. There is one jumper for Out(1) and one for Out(2), so that one output can be a voltage output and the other a current output.
Page 4 Dimensions and holes 83(3,26) 31(1,22) 120(4,72) Dimensions of sensor in mm and (inches) 30(1,18) 30(1,18) 4,2(0,16) 7,8(0,31) Mounting of the sensor onto the wall Please use screws with screw head diameter less than 7,5 mm (0,295 inches) and screw head height less than 2,5 mm (0,1 inches) Dimensions of mounting plate in mm and (inches)
