The following procedure will guide you through the Channel Scan of the Embedded E-TRe and E-TRxe treadmills.

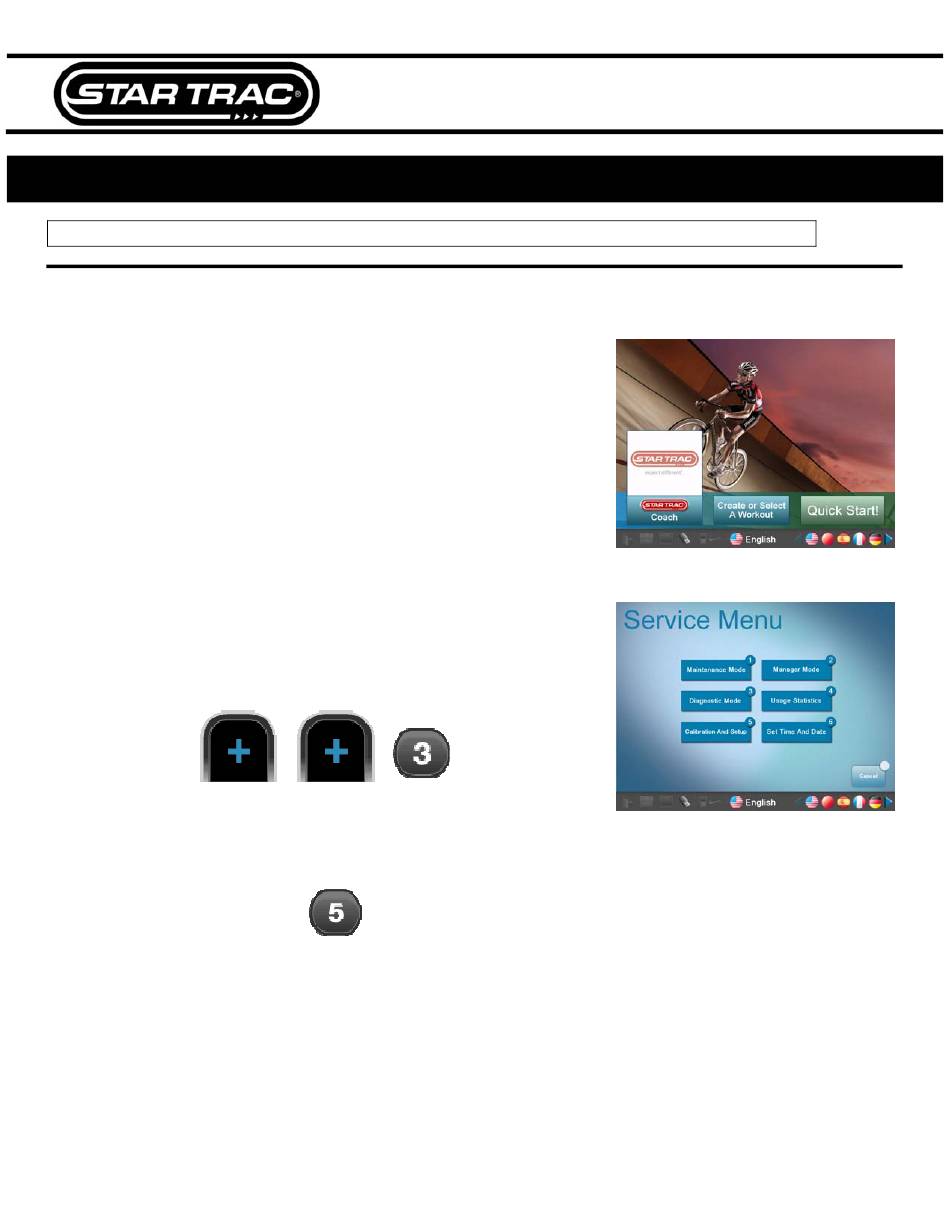

Step 1

Start on the default screen (Fig. 1).

Step 2

Press and hold the VOL '+' key and the CH '+' key and the number '3'

key on the keyboard at the same time to enter the Service Menu (Fig.

2).

VOL

Step 3

Press the number '5' key on the keyboard or touch "Calibration And

Setup".

STAR TRAC FITNESS

TV Setup and Troubleshooting

E-TRe & E-TRxe

Service Menu

1 of 8

Fig. 1

Fig. 2

637-1414 Rev: A

Need help?

Do you have a question about the E-TRe and is the answer not in the manual?

Questions and answers

Summary of Contents for Star Trac E-TRe

Page 1 Service Menu TV Setup and Troubleshooting E-TRe & E-TRxe The following procedure will guide you through the Channel Scan of the Embedded E-TRe and E-TRxe treadmills. Step 1 Start on the default screen (Fig. 1). Fig. 1 Step 2 Press and hold the VOL ‘+’ key and the CH ‘+’ key and the number ‘3’...
Page 2 Enter the Password “2 1 8” and press ‘OK’ (Fig. 3). Fig. 3 Step 5 Press the number ‘6’ key on the keyboard or touch “TV Set Up” (Fig.4). Fig. 4 STAR TRAC FITNESS 2 of 8 637-1414 Rev: A...
Page 3 Service Menu Once in the TV Setup menu, there will be six options (Fig. 5). Fig. 5 STAR TRAC FITNESS 3 of 8 637-1414 Rev: A...
Page 4: Step
E. These start or stop the channel scan process. If the scanning process is stopped before completion, it will not save any channels found thus far. Note: The channel scan can take between 15 minutes to 1 hour (depending on the number of frequencies available for scanning. STAR TRAC FITNESS 4 of 8 637-1414 Rev: A...
Page 5 Remove TV Config Files Remove TV configuration allows you to clear all TV settings in the event the TV configuration becomes corrupted. STAR TRAC FITNESS 5 of 8 637-1414 Rev: A...
Page 6 Allows you to export the channel scan information from one TV and import it to another. 1. Connect a USB drive into the port on the center console (Fig. 10). Fig. 10 STAR TRAC FITNESS 6 of 8 637-1414 Rev: A...
Page 7 7. Test TV function. Troubleshooting This document contains the follow troubleshooting instructions: • TV icon is inactive after a channel scan/ no channels found • No channel scan options • Cable/Signal Requirement and Issues STAR TRAC FITNESS 7 of 8 637-1414 Rev: A...
Page 8 TV icon and screen B has and good unit. units. cable feed. (637-1412) an active TV icon. Does 2 Contact Star Trac Technical Screen A = Inactive Icon Find another TV or find channels? Service Screen B = Active Icon screen to test the feed from the wall.
Page 9 1. Remove the back plastic housing of the display (Fig. 1). Fig.1 2. Disconnect the coax cable going into the screen (Fig. 2) and disconnect the coax cable going into the bottom of the treadmill (Fig. 3). Fig. 2 Fig. 3 STAR TRAC FITNESS 1 of 2 637-1413 Rev: A...
Page 10 3. Transfer the ‘quick connect’ from the internal cable to the external cable (Fig. 4). Fig. 4 4. Connect the coax cable from the wall directly into the back of the screen (Fig. 5). Fig. 5 Return to the flow chart. STAR TRAC FITNESS 2 of 2 637-1413 Rev: A...
Page 11 Find a nearby unit that has good picture quality (if available) and plug the ‘good’ cable directly into the ‘suspect’ screen (A) and the ‘suspect’ cable into the good screen (B). Before After Return to the flow chart to continue. STAR TRAC FITNESS 1 of 1 637-1412 Rev: A...
Page 12 This will void the warranty on the screen. Fig. 2 *Embedded Screen refers to the complete assembly including plastics. There is no need to remove the computer touch screen alone. STAR TRAC FITNESS 1 of 3 637-1344 Rev: B...
Page 13 Check the tuner card. Ensure that it is seated completely into the slot. Gently push the card to reseat it completely. There should not be any of the tuner card’s contacts showing (Fig. 4) Fig. 4 STAR TRAC FITNESS 2 of 3 637-1344 Rev: B...
Page 14 Reinstall the sheet metal cover and embedded screen back on the machine. Be careful, do not pinch any cables while reinstalling. Boot up the machine and enter the Service Menu to perform the channel scan. STAR TRAC FITNESS 3 of 3...
Page 15 Cable/Signal Requirements and Issues PVS and Embedded Touch Screens Coax Cable Connector To ensure the proper delivery of both analog and digital signals, Star Trac requires all coax cables to have compression connectors (Fig. 1). Fig. 1 The dielectric must be flush with the hole in the connector (Fig. 2). The center connector must be free from braid debris as well (Fig.
Page 16 These connectors do not offer a water-tight solid connection like the compression connectors. They are also more likely to interfere with digital signals. Possible Symptoms: • Analog Interference (Fig. 5) • Digital Interference (Fig. 6) • Digital Pixilation (Fig. 6) Fig. 6 Fig. 5 STAR TRAC FITNESS 2 of 4 637-1415 Rev: A...
Page 17 This occurs when any of the braiding is touching the center conductor (Fig. 7) or if there is no dielectric around the center conductor. Fig. 7 Possible Symptom • Analog :Snowy/grainy picture (Fig. 8) • Digital: No digital channels • Digital : Freezing or pixilation (Fig. 9) Fig. 9 Fig. 8 STAR TRAC FITNESS 3 of 4 637-1415 Rev: A...
Page 18 This is often caused by a broken connector (Fig. 11). Fig. 11 Fig. 10 Possible Symptoms • Analog: Snowy/Grainy Picture • No Digital Channels Only • No Digital or Analog Channels STAR TRAC FITNESS 4 of 4 637-1415 Rev: A...
