Calibration & Setup: Touchscreen Calibration

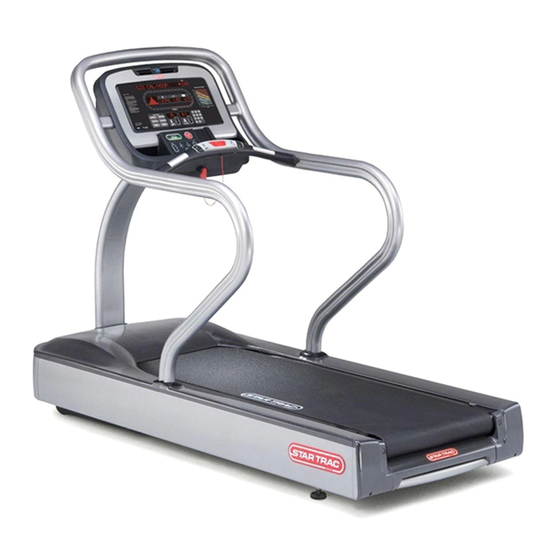

The following procedure will guide you through the Touchscreen calibration of the E Series E-TRe and E-TRxe treadmills.

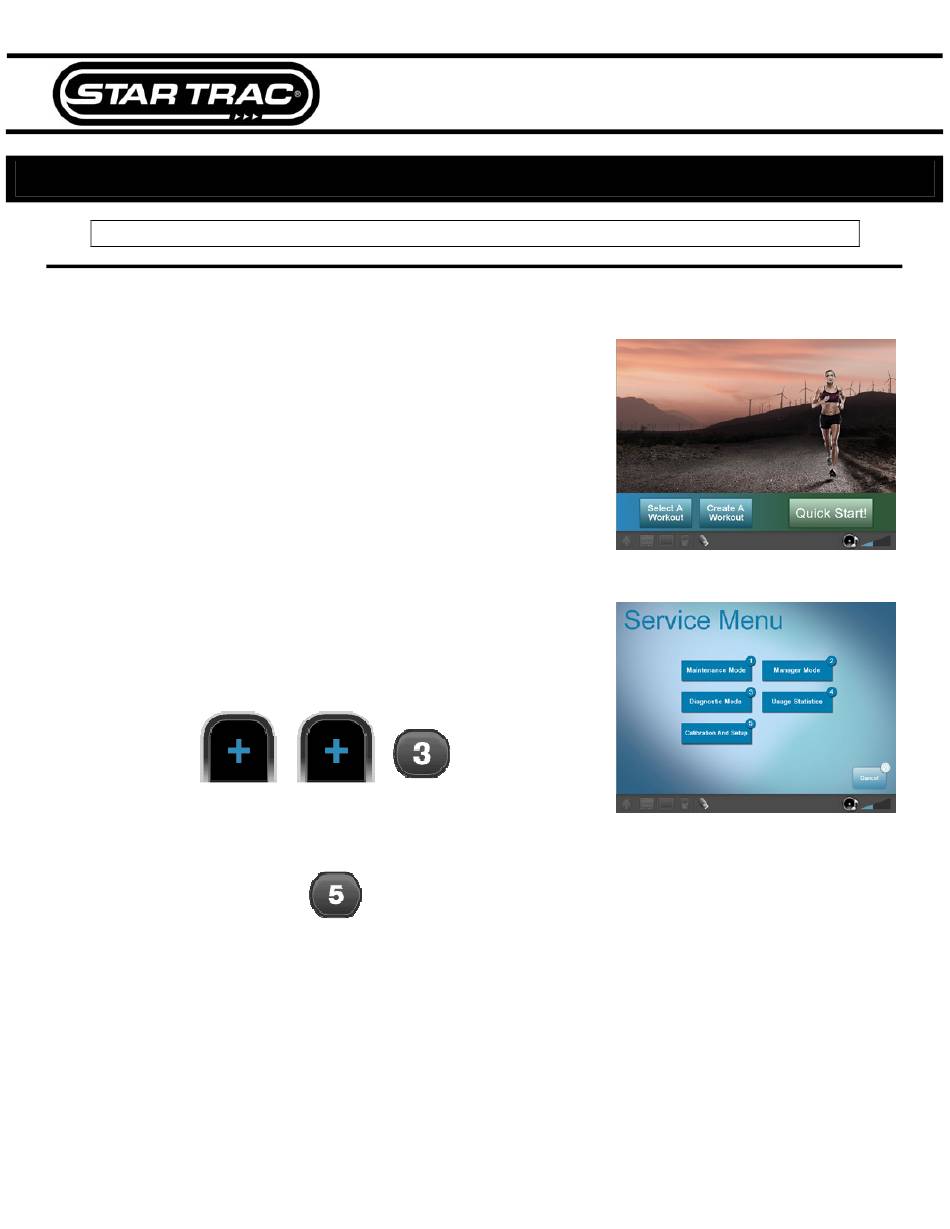

Step 1

Start on the default screen (Fig. 1)

Step 2

Press and hold the VOL '+' key and the CH '+' key and the number '3'

key on the keyboard at the same time to enter the Service Menu (Fig.

2).

VOL

Step 3

Press the number '5' key on the keyboard or touch "Calibration Setup".

STAR TRAC FITNESS

E Series Treadmills: E-TRe & E-TRxe

Service Menu

Fig. 1

Fig. 2

635-4113 Rev: A
