INTRODUCTION

Associated's hugely popular RC10L series Dynamic Strut front
suspension kit includes adjustments for caster, camber, toe in
and toe out, and other tuning tricks, all explained in detail in the
tuning tips section following the assembly instructions.
1:1
8415, qty 2 8411, qty 2
upper suspension upper suspension
arm turnbuckle arm eyelet

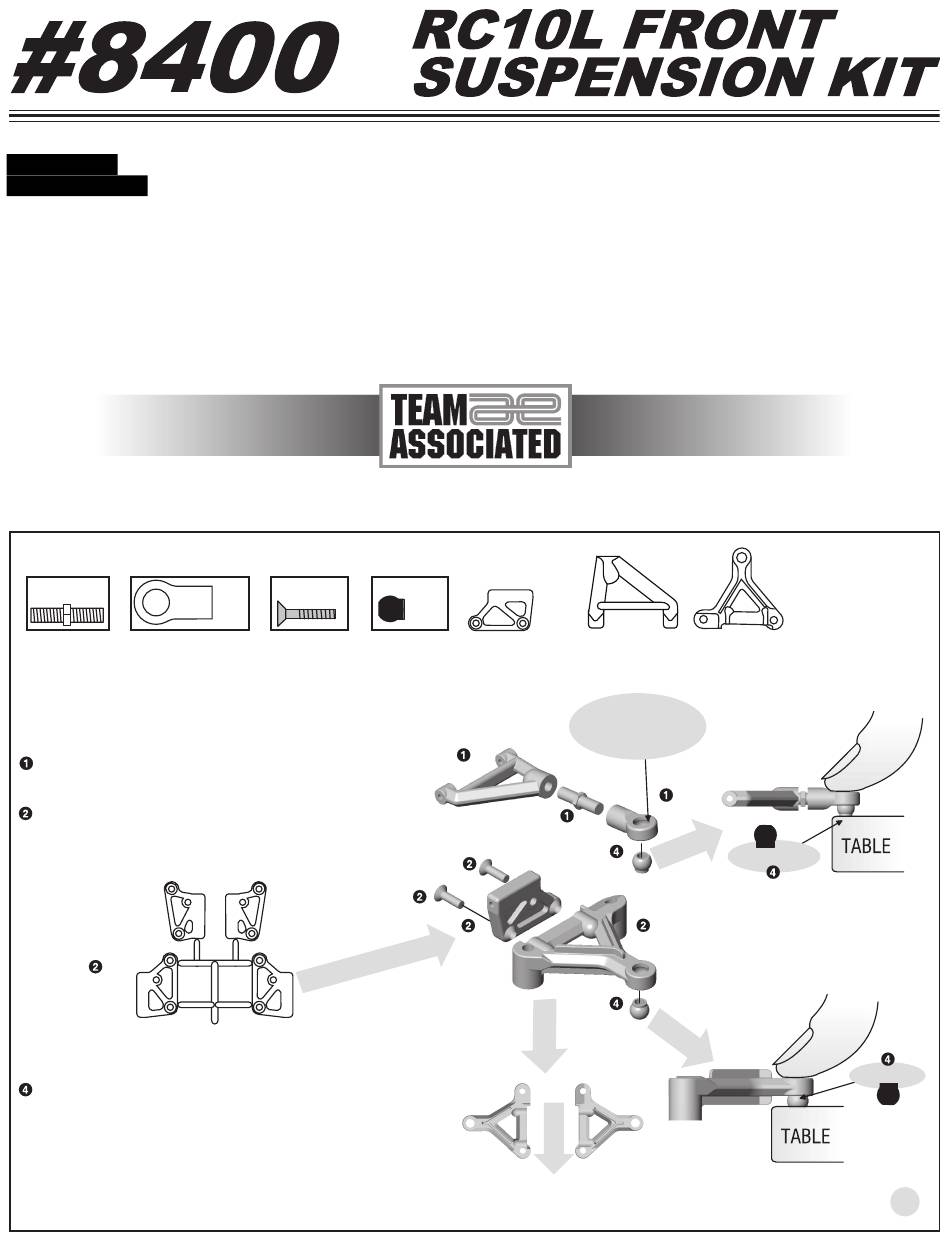

ASSEMBLE UPPER SUSPENSION ARM

Assemble parts #8405, 8415, and 8411.

ATTACH UPPER ARM MOUNT TO LOWER ARM

Attach #8407 0° mount to the #8419 lower suspension
arm using two #8409 screws. WARNING! Screws are
difficult to screw in. Turn carefully so you do not strip
out the head.
10° mounts
8407
0° mounts

INSTALLING UPPER AND LOWER PIVOT BALLS

3 Before popping in the #8417 pivot balls, make sure
there are no burrs inside the pivot ball holes.
Pop the #8417 pivot balls into the suspension arms as
shown. Make sure that the shoulders of the pivot balls
in the lower suspension arms are facing upward and
the pivot balls in the upper arm are facing downward
as shown. Orient ball to the rounded side of the upper
arm as shown.
5 Now assemble the right side.
3585 Cadillac Ave.
Costa Mesa, CA 92626-1401
1:1
1:1
8409, qty 4 8417, qty 4
4-40 x 1/2" pivot ball
shoulder screw,
blue aluminum

HOW THESE INSTRUCTIONS ARE ORGANIZED

1 The line drawings indicate which parts you'll need to take out
of the bag for that step. A "1:1" indicates that part is drawn
actual size. You can place your part on top to make sure you
have the right part.
2 We put numbers within black circles to help you link the text
instructions with the drawing.
3 The instructions in each step are ordered in the order you
complete them, so read the words AND follow the pictures.
4 When we refer to the left and right sides of the car, we are
referring to the river's point of view from inside the car.
1:1
8407, qty 2
0° upper suspension
arm mount
8405
8415
8409 (blue)
8409
(blue)
8407
F
R
O
N
T
right side left side
8405, qty 2 8419, qty 2
upper suspension lower suspension
arm arm
the side with
the rounded corner
should face up
8411
shoulder down
8417
8419
8417
shoulder up
