Check that the distance "C" on the gate support structure is no greater than the value given in the table below. If the distance is higher than this value,
it is necessary to intervene by making a niche in the structure to obtain the indicated value. This is to avoid the linear operator colliding with the edge of
the structure during closure. The niche must be made in the area in which the linear operator is to be installed and it must have a height such as to allow
operator passage.
OP3 - OP3L - OP3 UNI – OP3L UNI – OP324
Ω
OP324 UNI
AMAXmm BMAXmm
Ω1=90° 140 140
Ω2=120° 140 100

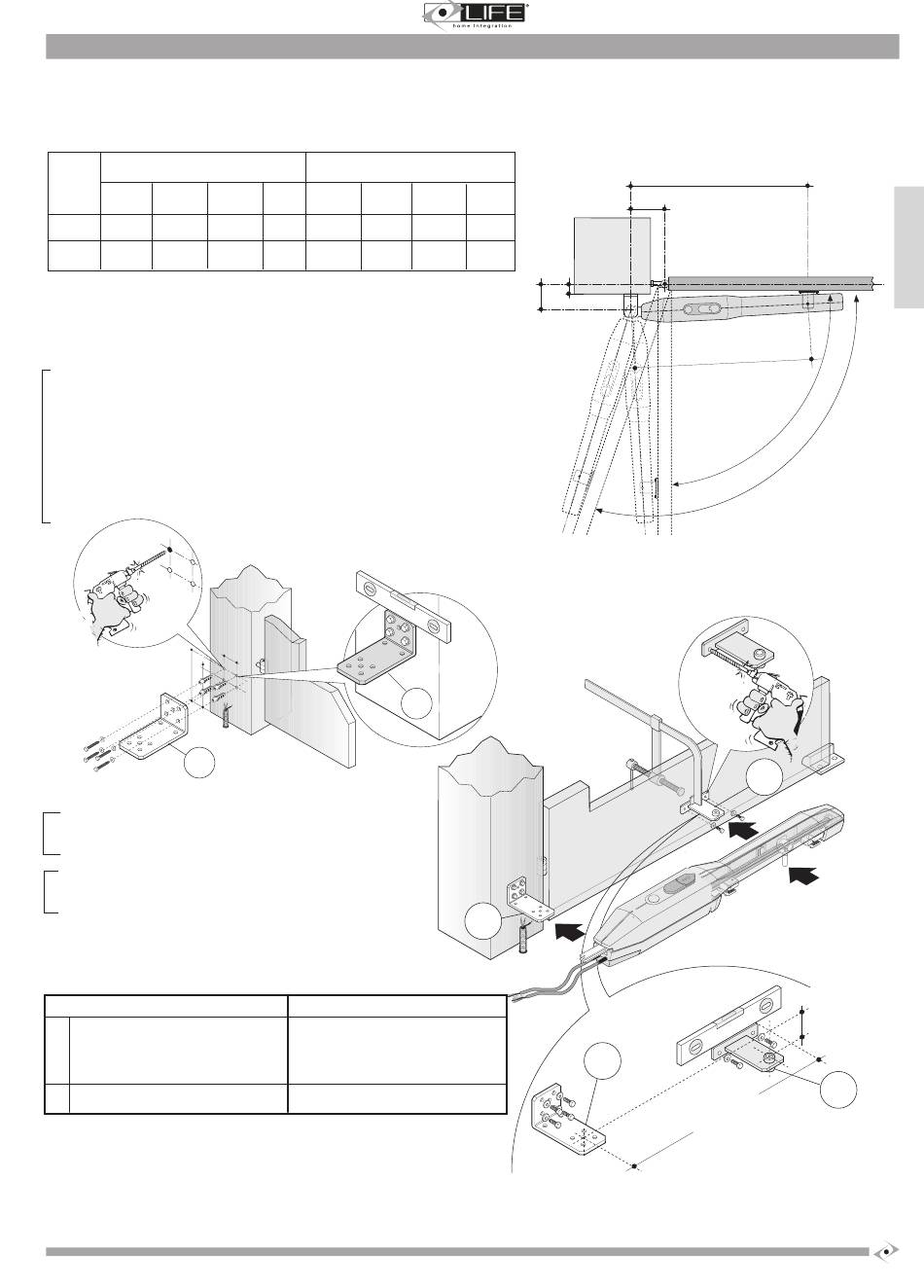

2.3 Rear and front bracket positioning
a) Define the clamping position of the rear bracket (1) of the operator, observing
the distances A, B and C.
b) Check that the outlet of the pipe housing the electric cables is below the
bracket (1).
c) Check that there is enough space on the leaf, at the point in which the operator's
A
front bracket is to be clamped, and that the surface is suitable for clamping (with
screws or by means of welding).
d) Fix (with screws or by means of welding) the rear bracket (1) to the pillar in the
established position.
e) Make sure that the rear bracket (1) is perfectly level.
1
a. Take the leaf to the closure position, resting it against
B
the closure stop plates.
b. Position the front bracket (2) at distance E from the rear
C
bracket (1) and 80 mm lower.
OPTIMO 3
OP3 - OP3L - OP3 UNI – OP3L UNI
OP324-OP324UNI
E 745 mm
E
The value of must be just lower (10 mm) than
a) Temporarily block the front bracket (2) with a clamp.
b) Check that the bracket is level using a spirit level.
WWW.Roham-tech.ir
OP5 – OP5L – OP5UNI – OP5L UNI – OP524
OP524 UN
CMAXmm D*mm AMAXmm BMAXmm
90 max 755 210 210
50 max 755 210 120
A
OPTIMO 5
OP5 – OP5L – OP5UNI – OP5L UNI
OP5-OP5L–OP524 UNI
895 mm
(maximum space between centres) to allow optimal stop plate adjustment.
D
CMAXmm D*mm
140 max 905
70 max 905
C
B
1
B
1
3
E
A
D
Ω
2
C
1
E
OP3= 745
E
OP5= 895
1
Ω
2
80
2
