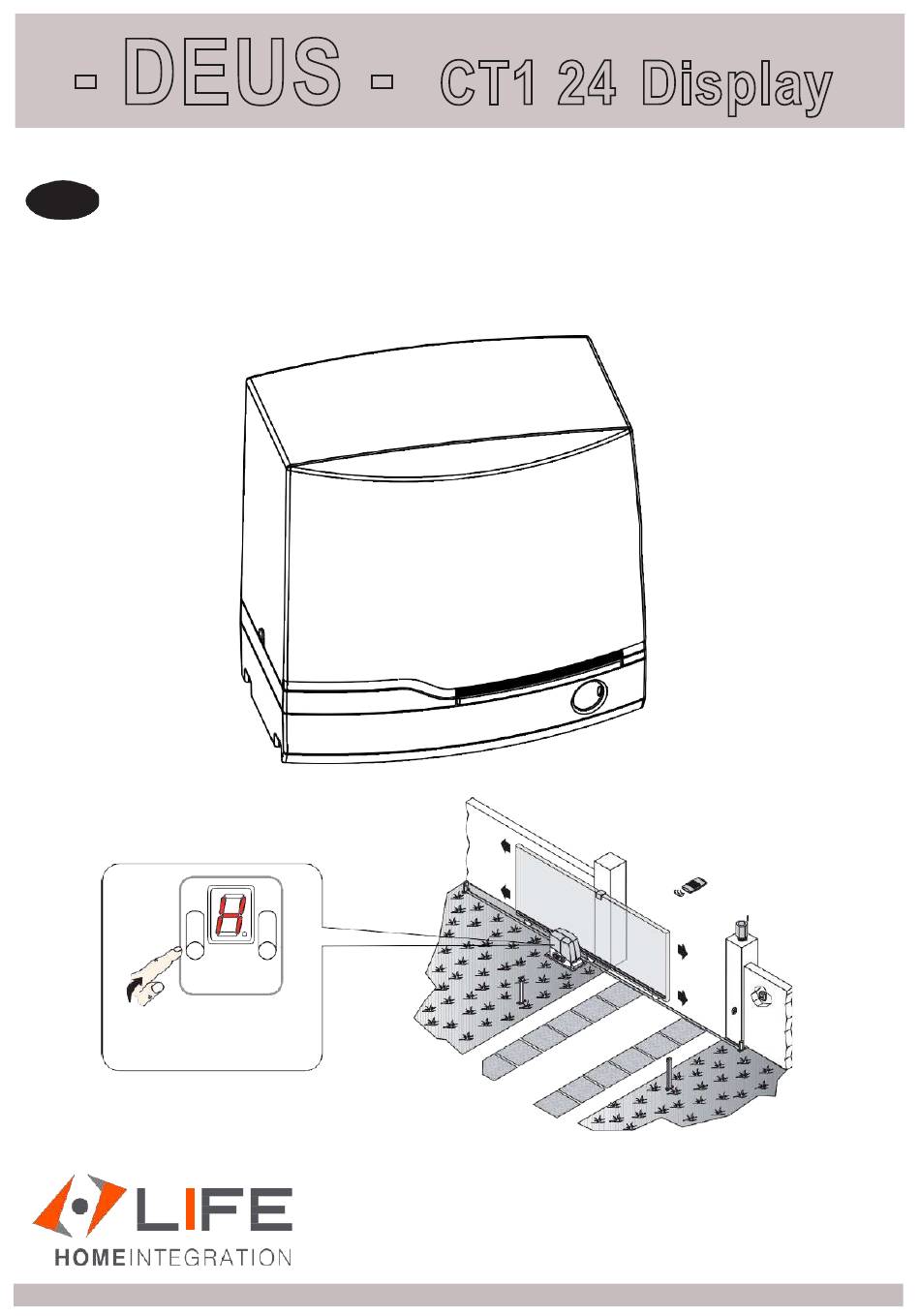

- Page 1 CT1 24 Display ELECTROMECHANICAL GEARMOTOR FOR SLIDING GATES WITH CONTROL UNIT INSTRUCTIONS AND WARNINGS FOR INSTALLATION USE AND MAINTENANCE DEUS 4HP for gates Max 400Kg DEUS 6HP for gates Max 600Kg DEUS 4HS for gates Max 400Kg Rev. 11 - 03/06/2024...
- Page 2 GENERAL INDEX 1 - GENERAL SAFETY INSTRUCTIONS P. 3 1.1 - Important safety instructions 1.2 - General Safety Warnings 1.3 - Warnings and symbols used 1.4 - General Information 1.5 - Manufacturer's data 1.6 - Intended use 1.7 - Safety instructions and warnings 1.8 - Installation requirements and warnings 1.9 - Commissioning 1.10 - Testing...
-
Page 3: General Safety Instructions
1 - GENERAL SAFETY INSTRUCTIONS 1.1 Important safety instructions For your personal safety, it is important to follow these instructions and keep them in a safe place. The device must be disconnected from the power supply during installation, cleaning, maintenance and replacement of components. - Page 4 This document reflects the state of the car to which it is attached at the time of its marketing. 1.5 - Manufacturer's data LIFE Home Integration is the manufacturer of DEUS 4HP - 4HS - 6HP motors and holder of all rights to this document. • Manufacturer: LIFE Home Integration •...
- Page 5 1.6 - Intended use The DEUS 4HP - 4HS - 6HP electromechanical gearmotor is designed exclusively for auto mating swing gates. Any other use is considered non-compliant with the intended use and is prohibited by the regulations in force. • The control unit should only be used with LIFE products.
- Page 6 1.8 - Installation requirements and warnings WARNING: Important safety instructions. Follow all instructions carefully, incorrect installation can cause serious injury. Before starting installation, we strongly recommend that you carefully read the instructions and warnings in this manual (see chapter GENERAL SAFETY INSTRUCTIONS) and observe the instructions contained therein.
- Page 7 • The drive can only be tested if a non-hazardous force tolerance has been set. The force tolerance must be set to a minimum value so that there is no danger of injury during closing. • Adjust the maximum force in line with EN 12445. •...
-
Page 8: Engine Technical Data
2 - ENGINE TECHNICAL DATA 24V irreversible mechanical gearmotor for sliding gates. DEUS4HP DEUS6HP DEUS4HS Supply voltage 230 50/60Hz 230Vac line power Line current 230Vac Engine type Maximum engine power Maximum motor current Thrust Maximum starting torque 0.23 0.34 Maximum speed 0.23 Work intermittence Continuous working time... -
Page 9: Installation Instructions
3 - INSTALLATION INSTRUCTIONS 3.1 - Installation of the gearmotor components. The installation area of the geared motor must provide the necessary space for maintenance and manual release operations. Left-hand closure Right-hand closure 3.2 - Installation and fixing of the anchor plate. a) To position the anchor plate correctly, respect its orientation (LEFT - RIGHT) as shown in the picture. - Page 10 3.3 - Installing and securing the geared motor a) Remove the geared motor cover by unscrewing the screws; position the geared motor on the anchor plate and screw in the two M10 bolts with washers. b) If necessary, adjust the gearmotor vertically by turning the 4 adjusting screws and levelling it.
- Page 11 3.5 - Manual release WARNING: Switch off the power supply before proceeding. • Manual release can cause uncontrolled gate movement, • due to mechanical damage, or mechanical imbalance ATTENTION conditions. This control unlocks the gearmotor drive and moves the sash manually; it can be used in •...
- Page 12 3.6 - Wiring the geared motor Before proceeding with connections, please read the SAFETY sections carefully. All wiring and connection work must be carried out with the control board disconnected. Power supply; if the disconnecting device is not visible, affix a warning sign: 'CAUTION: MAINTENANCE IN PROGRESS'.
- Page 13 3.7 - Buffer battery connection (AGEX optional kit) Battery operation allows emergency operation in the absence of mains power; autonomy is about 8 hours for about ten manoeuvres. For connections, follow the diagram shown here. Batteries Switching Transformer Transformer output 230 Vac Black INTEGRATED...
- Page 14 4 - ELECTRONIC CONTROL UNIT CONNECTIONS - Before wiring, please read carefully what is written in the SAFETY PRECAUTIONS AND WARNINGS and INSTALLATION PRECAUTIONS AND WARNINGS. - All wiring and connection work must be carried out with the power supply disconnected. If the device is not visible, a warning sign must be affixed: 'WARNING: IN MAINTENANCE'.
- Page 15 4.1 - List of links and connections Clamps Description ANTENNA: Antenna sock input, use RG58-50 Ohm cable. ANTENNA: Antenna input. COMMON for STOP, OPEN, CLOSE, STEP-by-Step, SECURITY, PHOTO inputs STOP: Input N.C. Determines the stop of the gate. Safety devices such as an emergency stop 6 - 7 button can be connected to it.
- Page 16 4.2 - Wiring diagram and connections INTEGRATED CONN. RADIO ANTENNA DIODO COMMON Encoder + STOP Encoder A COND. MICRO RELE1 OPENS Encoder B PEDESTRIAN Encoder - CLOSES Motor STEP-BY-STEP COND. Motor SECURITY OPENING RELE2 Transformer - PHOTO IN CLOSING Transformer + LM317 N.O.
-
Page 17: Control Unit Configuration
5 - CONTROL UNIT CONFIGURATION 5.1 - Total reset Switch off power, press and hold buttons A and B simultaneously, switch on power and hold until [ H ] flashes on the display. Release the buttons. All parameters are now reset to factory default. - Page 18 6 - REMOTE CONTROL MANAGEMENT 6.1 - Programming remote control full opening Press and hold button A. After 5", [ A ] lights up on the display. Release the button and transmit with the button on the remote control that you want to memorise within 5". Successful memorisation is indicated by a brief flashing of the display.
- Page 19 6.4 - Radio remote control programming From an open gate with a safety enabled: STOP and/or PHOTO. 1 - Press a previously memorised remote control for 10" in succession: full opening remote control programming is entered, the memory opens, the flashing light performs 1 short blink.
- Page 20 7 - SETTING OPTIONS Press and hold button B immediately afterwards press button A, now release both buttons. Now each time button A is pressed the display indicates the menu number [ 0 ] - [ 1 ] ..[ 9 ] for 5", to confirm the desired menu press B.
- Page 21 [3] - Obstacle Sensitivity Adjustment [0] Minimum [1] (Default) [3] ----- [5] Maximum [4] - Slowdown Space Adjustment [0] Minimum [2] (Default) [4] ----- Maximum Minimum [5] Massimo [5] - Slowdown Speed Adjustment [0] Minimum [2] (Default) [4] ----- [5] Maximum [6] - Pedestrian Opening [0] 10% Of the run Total [1] 20%...
- Page 22 [8] - Setting Relay Output [0] Gate Open Indicator Light (Default) [1] Courtesy light 30" [2] Courtesy light 1' [3] Courtesy light 3' [4] Pulsed radio contact [5] Radio contact Step-by-Step [9] - Enable safety inputs N.C. 7 - 11 - 12 With Menu 9, the safety inputs can be manually enabled according to the indications given here.
-
Page 23: Instructions And Warnings For The User
9 - INSTRUCTIONS AND WARNINGS FOR THE USER • It is the installer's responsibility to carry out a risk analysis and to inform the user/owner of any residual risks that may exist. Any residual risks detected must be recorded and reported. •... - Page 24 • Any checks, maintenance or repairs must be carried out by a PROFESSIONAL INSTALLER. • Always switch off the power supply in the event of malfunctions, faults and before any other maintenance or cleaning work in order to prevent the gate from being operated. •...
-
Page 25: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM ENCOUNTERED RESOLUTION The control unit does not switch on. - Check that the main switch is on. - Check Fuses - Check that the remote control is memorised. Motor does not respond to remote - Check the remote control battery. control commands - Check the wiring and antenna position. - Page 26 NOTES P.26...
-
Page 27: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY LIFE home integration 31014 COLLE UMBERTO (TV) Italia Via Sandro Pertini 3/5 Declares that the following product: DEUS4HP - DEUS6HP - DEUS4HS Electronic control unit for sliding gates. It complies with the essential requirements of the following directives:... - Page 28 Adress: Via Sandro Pertini 3/5 31014 Colle Umberto (TV) ITALY Telephone: +39 0438 388592 Telefax: +39 0438 388593 http: www.homelife.it e-mail: info@homelife.it www.homelife.it www.homelife.it P.28...
