LIFE home integration OPTIMO OP3 Series Instructions And Warnings For Installation, Use And Maintenance page 3

OP3 - OP3L - OP3 UNI - OP3L UNI - OP324 - OP324 UNI
Max leaf length (m)
2,00
2,50
3,00

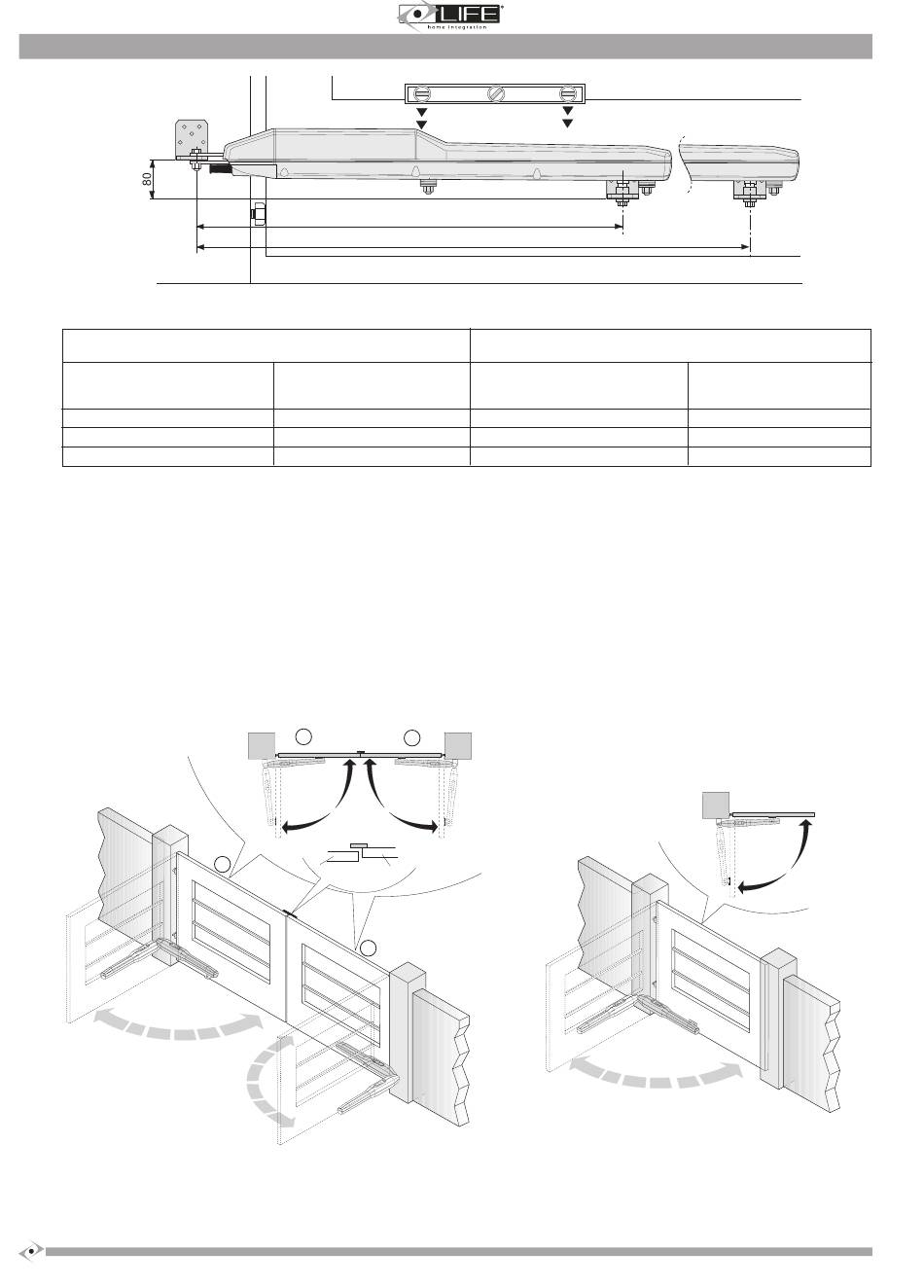

2.2 Typical installation
A) TWO-LEAF SYSTEM
The definition of leaf 1 and leaf 2 of the gate is essential for automation operation.
Leaf 1: is the first to open (1) when the gate is closed and the second to move when the gate is open; it finishes its closure travel after leaf 2.
Leaf 2: is the second to open (2) when the gate is closed and the first to move when the leaves are open; it finishes its closure travel before leaf 1.
B) ONE-LEAF SYSTEM
Leaf 1: the gate's only leaf.
A
WWW.Roham-tech.ir
E
Max leaf weight (kg)
800
600
400
1
1
1
2
2
OP3= 745 mm
E
OP5= 895 mm
OP5 - OP5L - OP5UNI - OP5L UNI - OP524 - OP524
Max leaf length (m)
3,00
4,00
5,00
2
2
Max leaf weight (kg)
B
500
400
300
