C 4 ®
ONFIGURING TOOL COOL

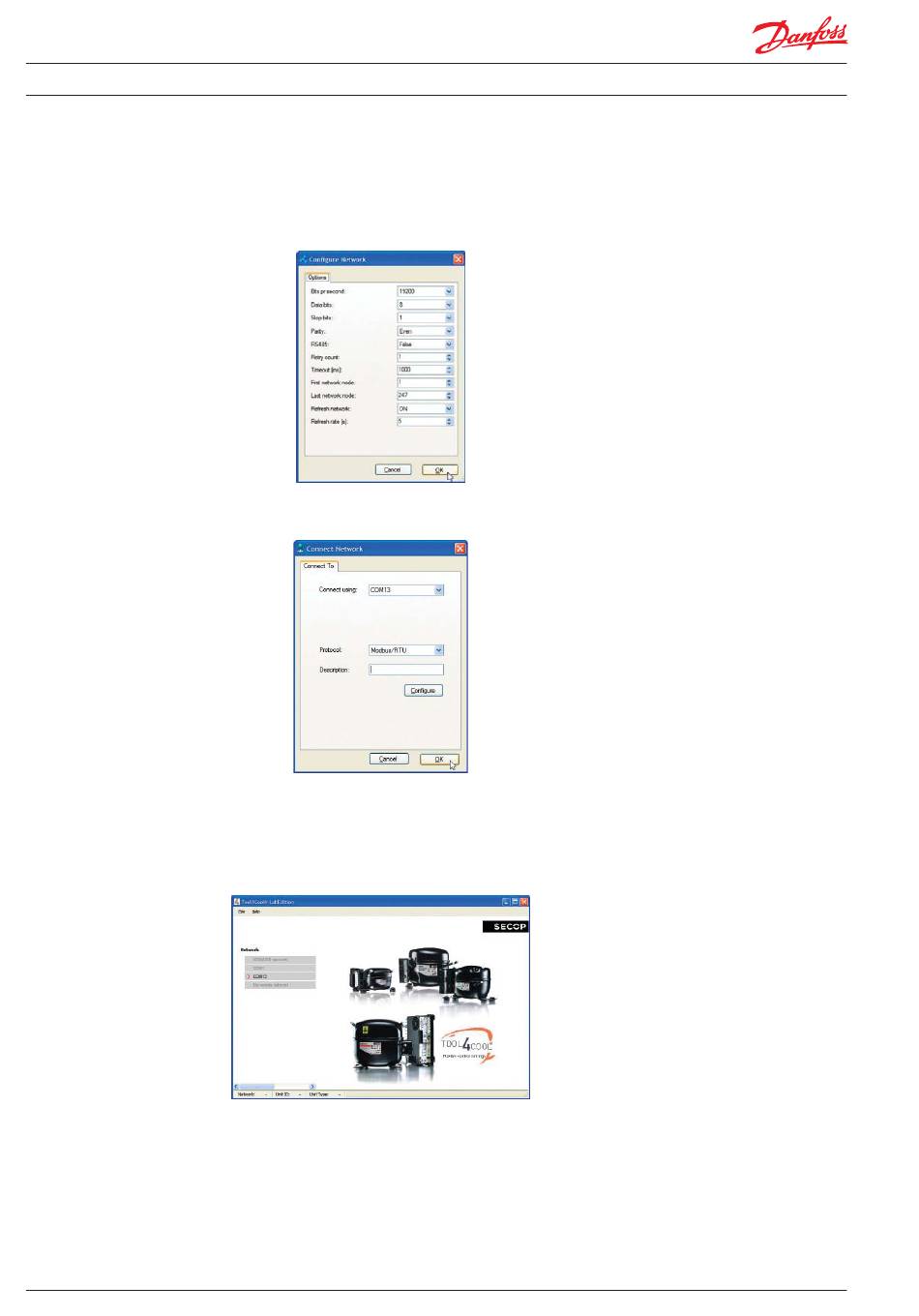

6. The Confi gure Network dialog box will appear.
7. Set the Refresh rate to ~5 times the number of addressable nodes,
5 x [(Last network node +1) - First network node]
This ensures that Tool4Cool® will prevent the Bluetooth® gateway from timing out and turning the
power off . Tool4Cool® scans the network and detects changes.
Then click OK to return to the Connect Network dialog.
8. Check the gateway is turned on.
In the Connect Network dialog, click OK.
Wait a short time. A red arrow will appear in front of the description (COM/USB network).
The controller is now accessible via Tool4Cool®.
FRCC.ES.011.A1.02
