Installing the Unit
2.5

CONNECTING THE BOOSTER TO THE CELLTEST SYSTEM

2.5.1

BOOSTED CHANNEL CONNECTIONS

A cable is provided for connecting a
connector on the booster rear panel. This cable carries the connections
CellTest
for CE, RE1, RE2, Lo, and WE. See Figure 2-2.

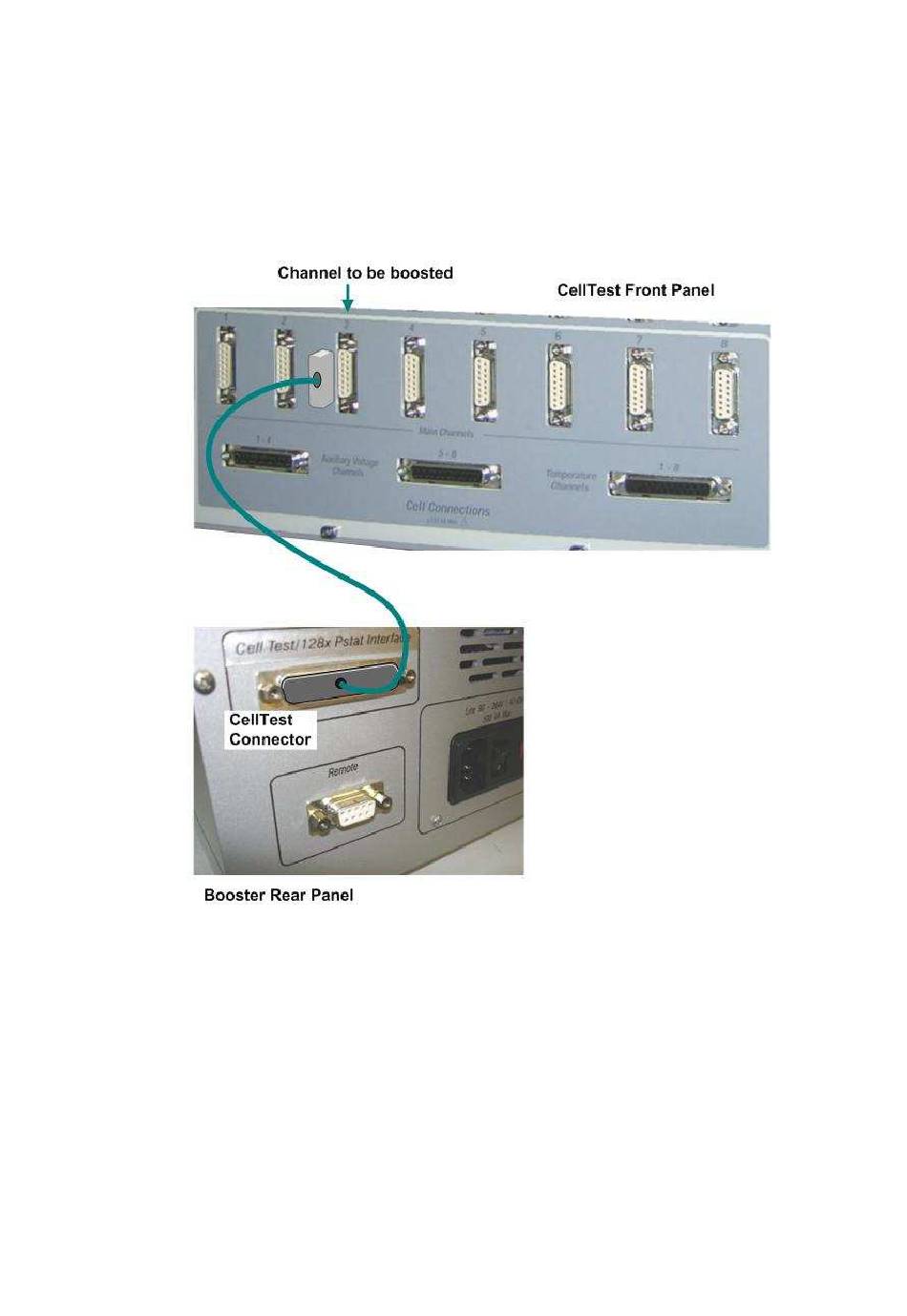

Figure 2-2 Boosted channel connection to the CellTest
2-4
channel on the CellTest unit to the
MAIN
Booster User Guide
14906001_AA 12-09-07
