2.4 CONNECTING THE BOOSTER TO A 1280 SERIES
POTENTIOSTAT
2.4.1

POTENTIOSTAT CONNECTIONS

On potentiostats such as the 1280, 1285 and 1287, the
connectors connect to a single 25-way 'D' type connector on the booster rear
Lo
panel. (The circular multiway connectors on the front panel are reserved for other
use.)
NOTE:
2.4.2

REMOTE CONTROL CONNECTIONS

The
REMOTE
connected and disconnected from the load at the start and end of the experiment.
The load is connected when pins 4 and 5 are shorted. This can be done from the
BOOSTER CONTROL
of the cable supplied for this purpose are shown in Figure 2-1.

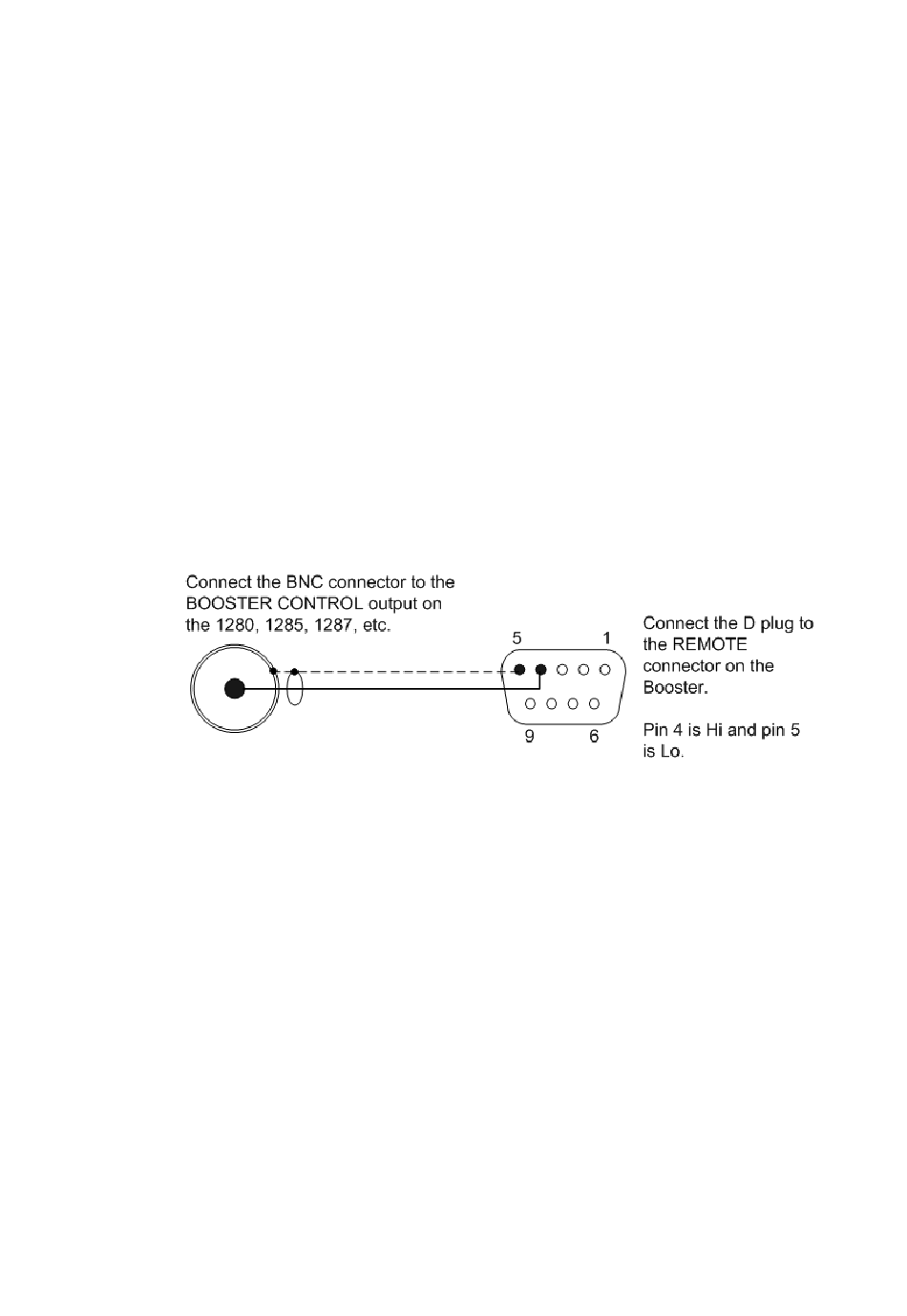

Figure 2-1 Booster control cable for 1280 series instruments.
See also Figure 3-2, Section 3.3.1, for a version of this cable that includes a
remote emergency stop switch.
NOTE:
14906001_AA 12-09-07
The banana plug connector on the
where it should be inserted into the
connector on the booster enables the unit to be automatically
output on a unit such as the 1280, 1285 and 1287. Details
Contact the Service Department at Solartron if the potentiostat does
not have a booster control output connection on the rear panel.
Installing the Unit
, ,
CE WE RE1
cable goes to the potentiostat,
Lo
terminal.
Lo
and , and
RE2
2-3
