Jungle Gym Accessory Rack
Accessory Rack
This instruction sheet describes how to add the Jungle Gym accessory rack to the Jungle Gym.
Two people are recommended for this procedure.
TOOLS REQUIRED
7/32" Allen wrench
•
9/16" Wrench
•
Read and understand all instructions thoroughly before installation.

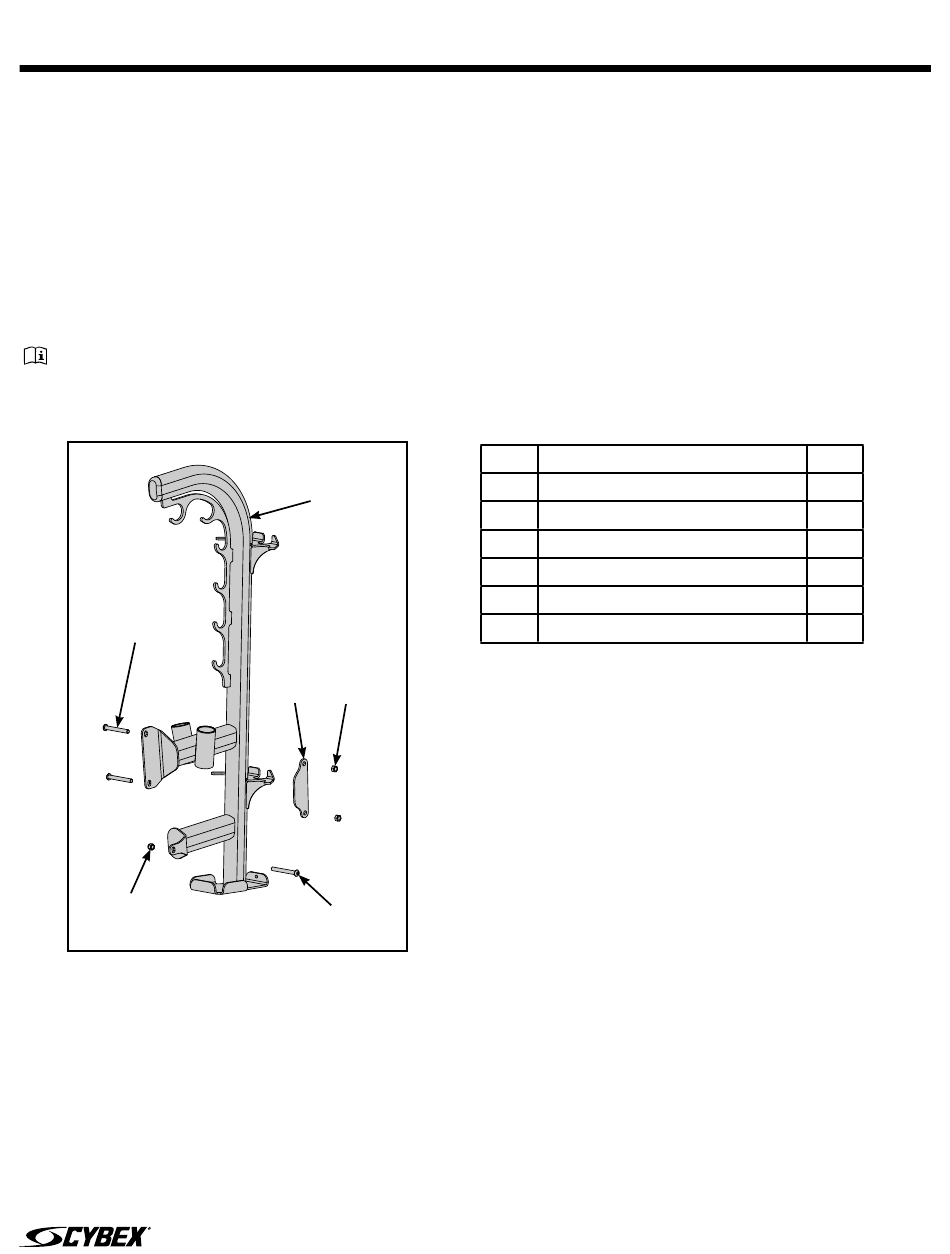

Kit Contents:
3
5
1
2
6
4
Page 1 of 3
Item Description
1
Accessory rack
2
Plate
3
BHSCS, 3.25"
4
BHSCS, 3.50"
5
Locknut, nylon
6
Locknut, nylon patch
Installation Instructions
Qty
1
1
2
1
1
2
