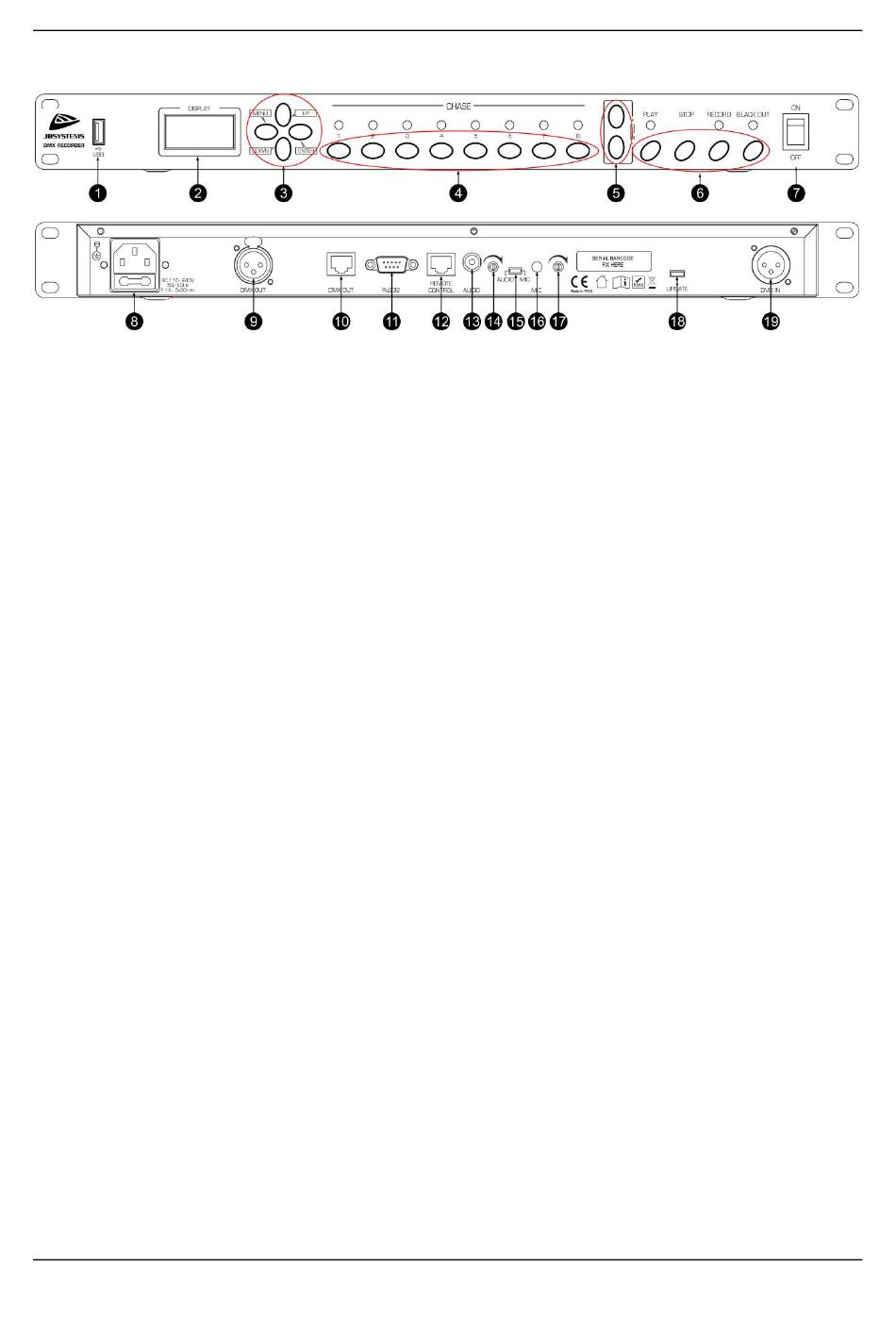

FUNCTIONS
1. USB CONNECTOR: used to save the chases on or load from a memory stick.
2. DISPLAY: shows the menu with the different options.
3. DISPLAY MODE BUTTONS [MENU-UP-DOWN-ENTER]: use these buttons to select the needed option
in the menu
• [MENU]: use this button to move forward in the menu to the wanted option.
• [UP]: use this button to increase the value in the selected option.
• [DOWN]: use this button to decrease the value in the selected option.
• [ENTER]: use this button to select the desired option.
4. [CHASE] BUTTONS (1-8): used to select the desired memory bank to store or play a show.
5. [SPEED +/-] BUTTONS: used to increase (+) or decrease (-) the speed of the show that is running.
6. [PLAY-STOP-RECORD-BLACK OUT] BUTTONS: use these buttons to select the needed mode.
• [PLAY]: use this button to start running the selected show [CHASE] (1-8).
• [STOP]: use this button to stop running or recording a show [CHASE] (1-8).
• [RECORD]: use this button to start recording a show into a selected [CHASE].
• [BLACK OUT]: use this button to cut the DMX output.
7. ON/OFF SWITCH: used to turn on and off the [DMX RECORDER].
8. MAINS INPUT: with IEC14 socket and integrated fuse holder, connect the supplied mains cable here.
9. [DMX OUT]: 3p XLR female connector used to connect all kinds of DMX-fixtures.
10. [DMX OUT]: used to connect all kinds of DMX-fixtures by means of a RJ45 connector.
11. [Rs232]: D-Sub 9p connector for connecting the unit by means of a serial data cable.
12. [REMOTE CONTROL]: used to connect the optional DMX RECORDER REMOTE (order code : B05021)
13. [AUDIO]: connect an audio signal from your sound system here by means of an audio-cable (optional).
14. Trimming potentiometer : used to adjust the sensitivity of the inserted audio signal.
15. [AUDIO/MIC]: switch to select the audio input source.
a. [AUDIO] : external audio source connected to the [AUDIO] input (13).
b. [MIC] : build-in microphone [MIC] (16).
16. [MIC]: build-in microphone.
17. Trimming potentiometer : used to adjust the sensitivity of the build-in microphone.
18. [UPDATE]: This micro USB connector can only be used for updating the internal firmware. Do NOT put
in a power adapter nor any other device as this will cause damage to the internal electronics.
19. [DMX IN]: 3p XLR male connector used to connect a DMX controller.
