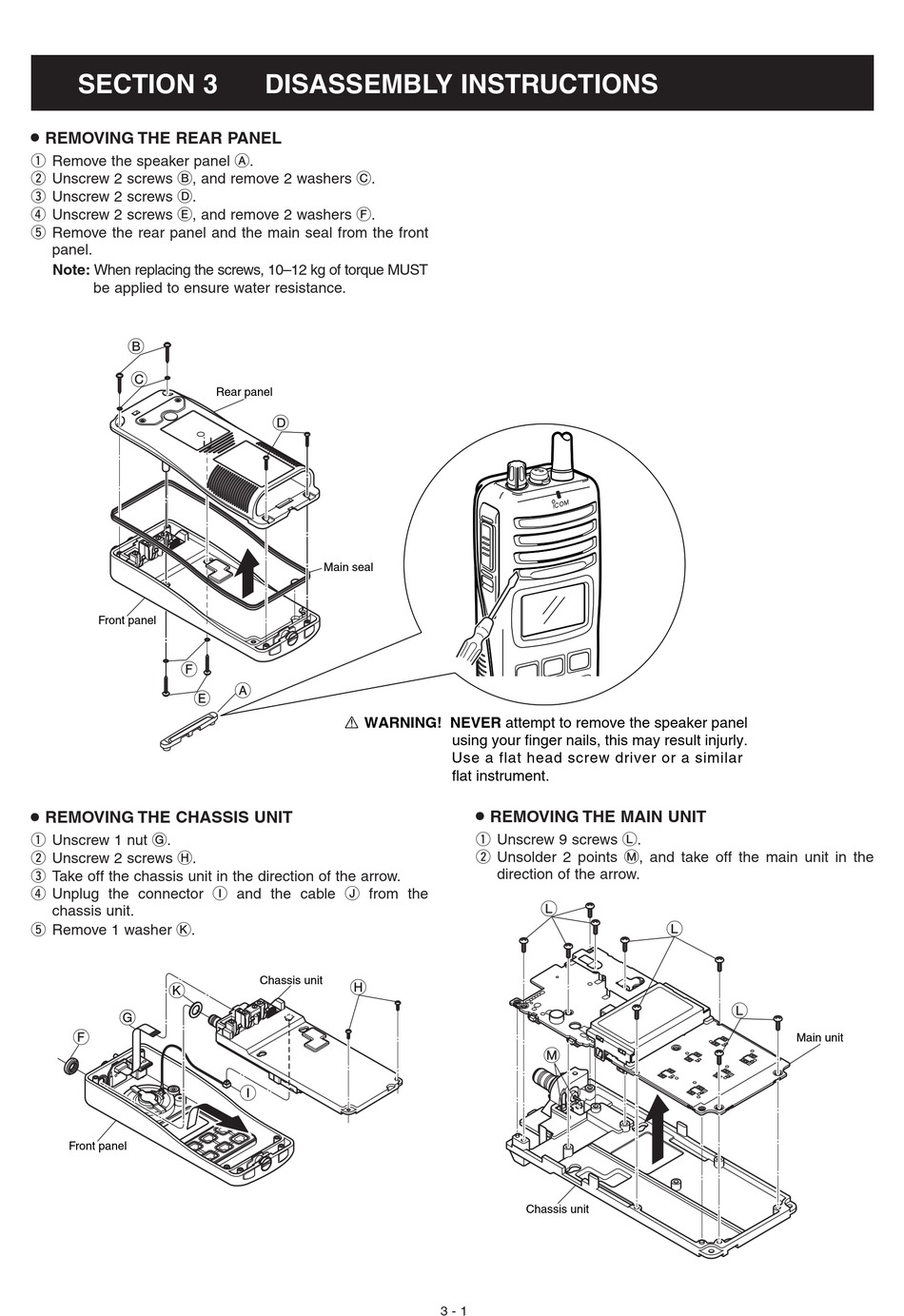

SECTION 3
•
REMOVING THE REAR PANEL
1 Remove the speaker panel A.
2 Unscrew 2 screws B, and remove 2 washers C.
3 Unscrew 2 screws D.
4 Unscrew 2 screws E, and remove 2 washers F.
5 Remove the rear panel and the main seal from the front
panel.
Note: When replacing the screws, 10–12 kg of torque MUST
be applied to ensure water resistance.
B
C
Front panel
F
E
•
REMOVING THE CHASSIS UNIT
1 Unscrew 1 nut G.
2 Unscrew 2 screws H.
3 Take off the chassis unit in the direction of the arrow.
4 Unplug the connector I and the cable J from the
chassis unit.
5 Remove 1 washer K.
K
G
F
Front panel
DISASSEMBLY INSTRUCTIONS
Rear panel
D
Main seal
A
R
Chassis unit
H
I
•
REMOVING THE MAIN UNIT
1 Unscrew 9 screws L.
2 Unsolder 2 points M, and take off the main unit in the
direction of the arrow.
L
M
Chassis unit
3 - 1
L
L
Main unit
