SECTION 2
•
MAIN UNIT
S5V Regulator
(Q561: 2SA1588)
T5V Regulator
(Q323: 2SA1588)
IF amplifier
(Q211: 2SC4215)
TX/RX swith
(D91, D92: MA77)
*Located in under the plate.

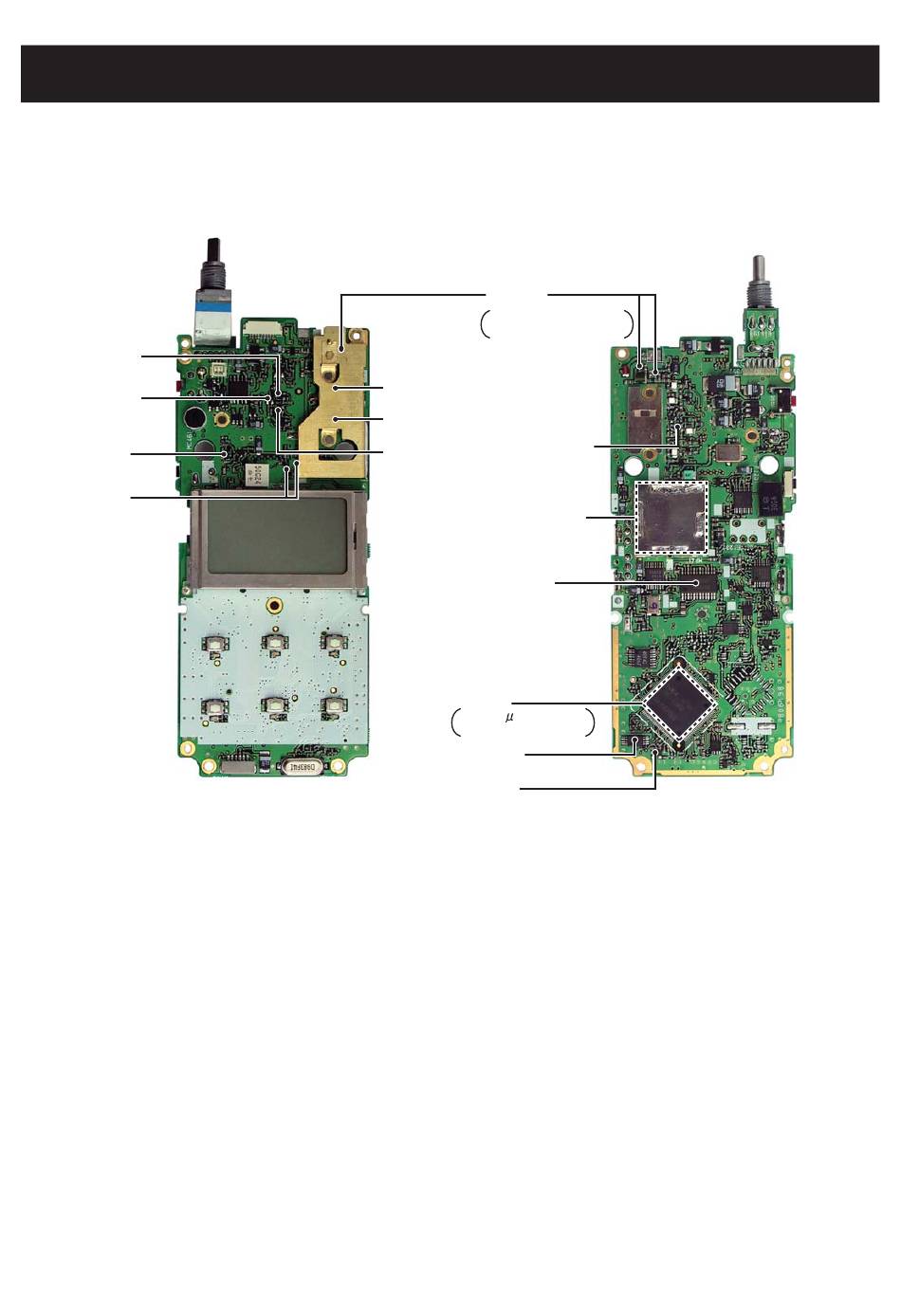

INSIDE VIEWS
TOP VIEW
Power amplifier
(*Q111: RD07MVS1)
Pre-drive
(*Q101: RD01MUS1)
R5 Regulator
(Q322: 2SA1588)
Antenna
Switches
*D131, D151: 1SV307
D152: MA2S077
RF amplifier
(Q165: 3SK294)
VCO circuits
D/A converter IC
(IC251: M62363FP-657C)
CPU
IC661:
PD78F0338
GC-9EB
EEPROM
(IC591: BR24L32FV-W)
Reset IC
(IC581: S-80942CNMC)
2 - 1
BOTTOM VIEW
