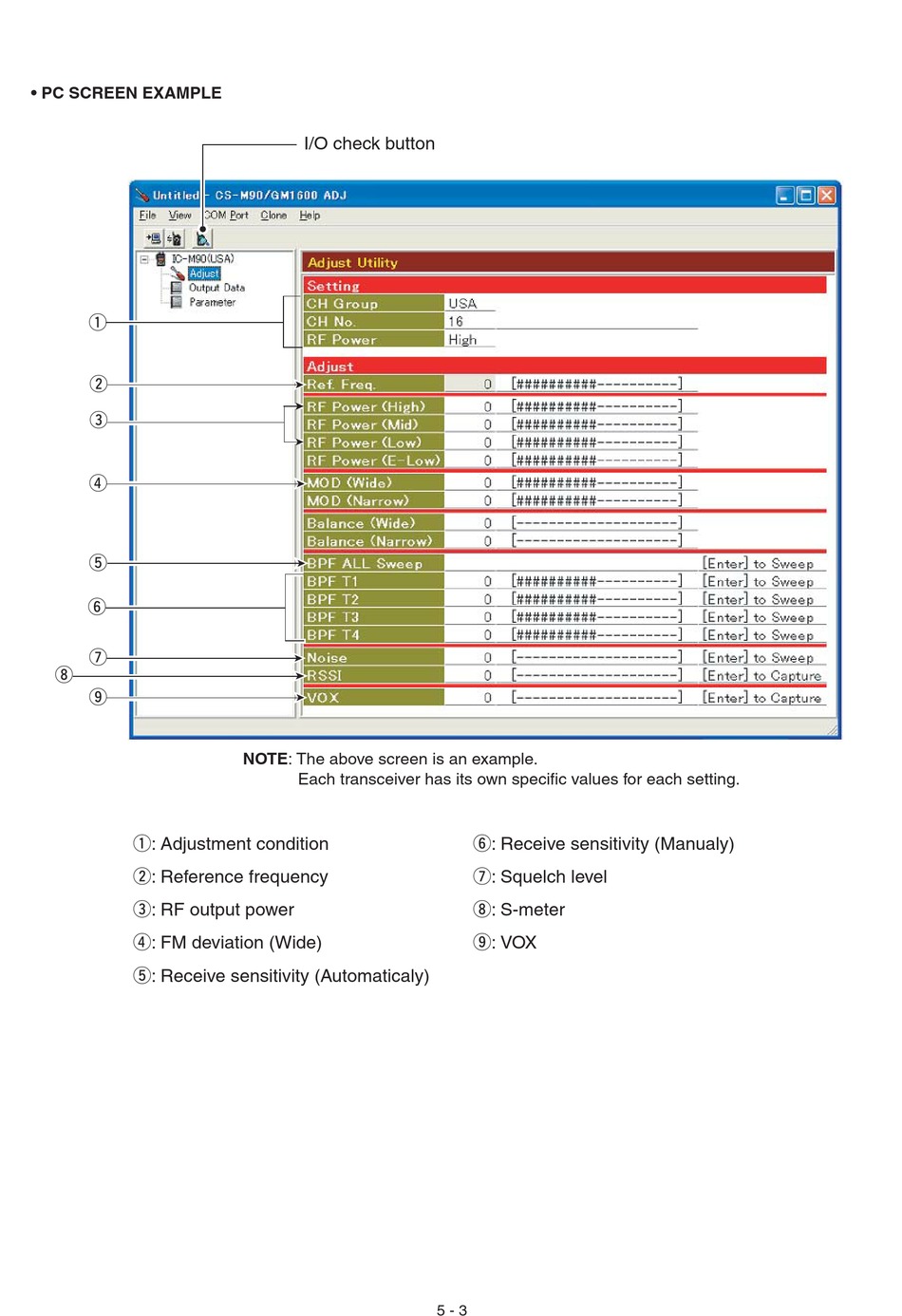

• PC SCREEN EXAMPLE
q
w
e
r
t
y
u
i
o
q: Adjustment condition
w: Reference frequency
e: RF output power
r: FM deviation (Wide)
t: Receive sensitivity (Automaticaly)
I/O check button
NOTE: The above screen is an example.
Each transceiver has its own specific values for each setting.
y: Receive sensitivity (Manualy)
u: Squelch level
i: S-meter
o: VOX
5 - 3
