Summary of Contents for PEWA AMPROBE SOLAR-100

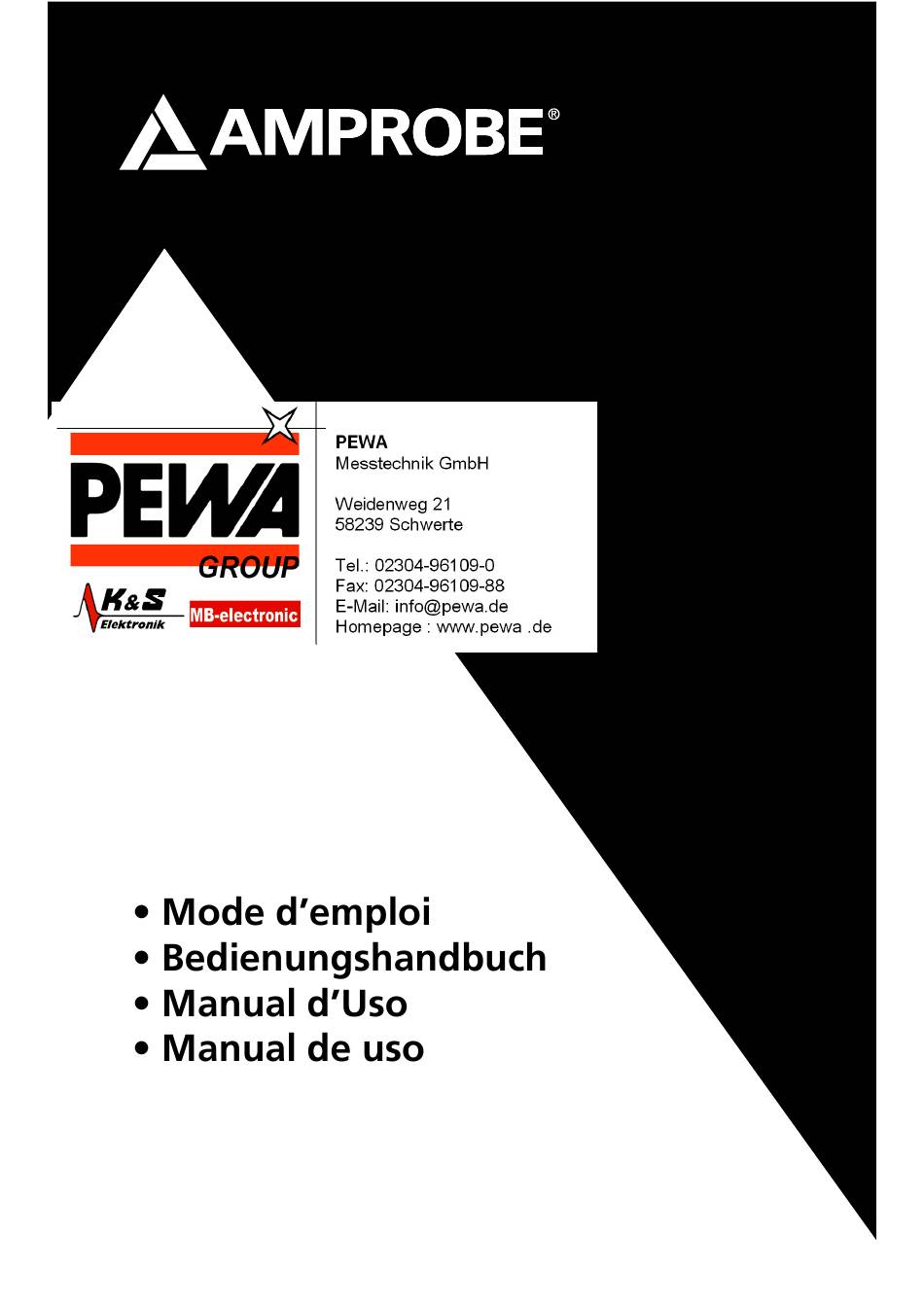

  • Page 1 SOLAR-100 Solar Power Meter Users Manual...
  • Page 2: Solar Power Meter

    SOLAR-100 Solar Power Meter Users Manual July 2009, Rev.1 ©2009 Amprobe Test Tools. All rights reserved. Printed in China...
  • Page 3 Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Amprobe’s behalf.
  • Page 4 Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and replacement rates. In USA In Canada Amprobe Test Tools Amprobe Test Tools Everett, WA 98203 Mississauga, ON L4Z 1X9...
  • Page 5 SOLAR-100 Solar Power Meter...
  • Page 6 ................2 Warning and Precautions ..........2 ........3 ..............3 ................4 ..............7 ..........8 ..........8...
  • Page 7 Caution! Refer to the explanation in this Manual Conforms to relevant Australian standards Complies with European Directives Do not dispose of this clamp meter as unsorted municipal waste. Contact a qualified recycler for disposal. For your own safety and to avoid damaging the instrument follow the procedures described in this instruction manual and read carefully all notes preceded by this symbol...

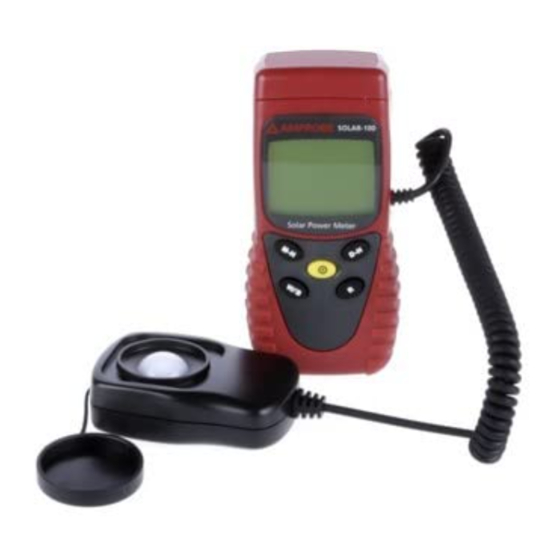

  • Page 8 Your shipping carton should include: SOLAR-100 Solar Power Meter 9 volt battery User manual If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange. The SOLAR-100 measures the solar energy and radiation, the typical application for this model are: measuring the effectiveness of the solar film.
  • Page 9 on, several digits may not disappear. In this case, the SOLAR-100 meter, and “00.0” appears on the screen. Put the device down close to the headlights. Switch between high beam and low beam, and light intensity values appear on the screen.
  • Page 10 “CAP” is indicated. Make sure that it is attached. on, several digits may not disappear. In this case, windows ” button on your SOLAR-100 solar power meter, and “00.0” comes up on the screen. Put the device close to the window and aim it at the sun.
  • Page 11 ” button to go into hold mode, and “ ” appears on the screen to allow you to read the data. Press this button once again to deactivate it. ” power button to turn ON the power and put the device to operating mode. If “1999”...
  • Page 12 Approx. 100 hr Typically within ± 10W/m2 [±3 BTU / (ft2*h)] or ±5%, whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / °C [±0.12 BTU / (ft2*h)/ °C] from 25°C 5°C ~ 40°C, below 80%RH -10°C ~ 60°C, below 70%RH 3-1/2 digits LCD with maximum reading 1999 Approx.
  • Page 13 If there appears to be a malfunction during the operation of the meter, the following steps should be performed in order to isolate the cause of the problem. 1. Check the battery. Replace the battery immediately when the “ ” symbol appears on the LCD.
