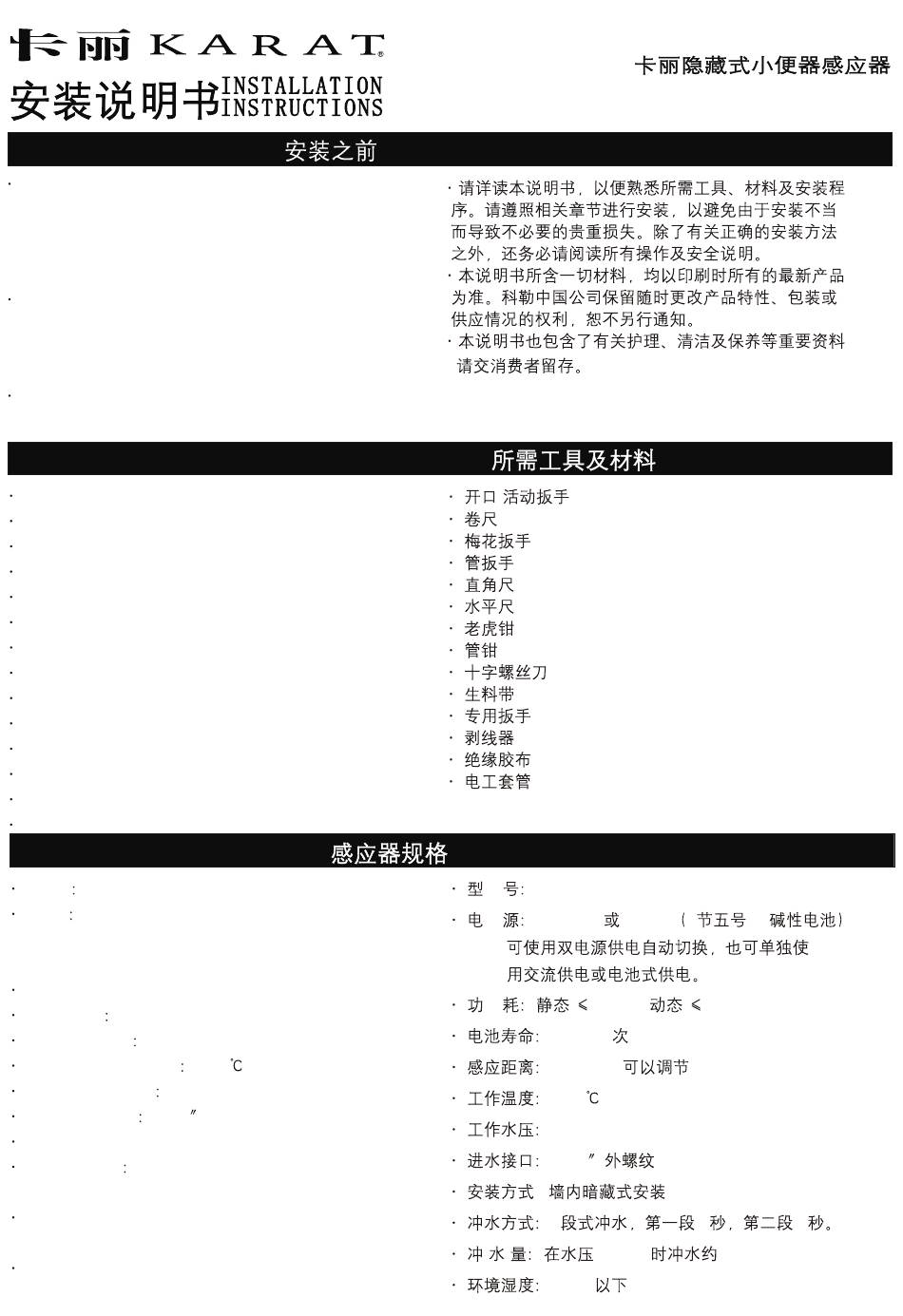

BEFORE YOU BEGIN
BEFORE YOU BEGIN
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the consumer
RECOMMENDED TOOLS AND MATERIALS
RECOMMENDED TOOLS AND MATERIALS
Open end/adjustable wrenches
Tape measure
Basin wrench
Pipe wrench
Square
Level
Pliers
Socket wrench with sockets
Philips driver
Seal tape
Special wrenches
Wire cutter
Insulation tape
Bushing
SENSOR SPECIFICATIONS
SENSOR SPECIFICATIONS
Model 72870T-ST
Power AC 220V/DC 6V (4pcs AA alkaline batteries)
Can use dual power supply switches autom
atically, or used alone AC or DC.
Power consumption: static state 0.3mW trends 3W
Battery life 150,000 cycles
Sensing range 10-70cm( adjustable)
Working temperature 1-60
Working pressure 0.07Mpa -0.7Mpa
Water interface G1/2 external thread
Installation: concealed into the wall
Flushing way two-stage flush, the first is 2 seconds,
the second is 6 seconds
Rated flow: flush water about 3-5L when the water
pressure is 0.3Mpa
Environment humidity: below 95RH
TOUCHLESS URINAL SENSOR
TOUCHLESS URINAL SENSOR
-
/
72870T-ST
AC 220V DC 6V 4
0.3mW
150,000
10-70cm(
1-60
0.07Mpa -0.7Mpa
G1/2
:
2
0.3Mpa
95RH
72870T-ST
72870T-ST
AA
3W
)
2
6
3-5L
Advertisement
Table of Contents
Related Manuals for Kohler KARAT 72870T-ST
Summary of Contents for Kohler KARAT 72870T-ST
- Page 1 All information in these instructions is based upon the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
- Page 2 INSTALLATION DIMENSIONS INSTALLATION DIMENSIONS Notice: a. The dimensions above are just for reference. b. The connection take between the outlet connection and urinal is not supplied in this package. c. To ensure an effective flush performance, an urial with corresponding flush volume is required. Siphon urinal is not recommened Recommended working water pressure: 0.18MPa.~0.55MPa.
- Page 3 Note: Connectine Pipe Bushing please clean the inside of water supply pipe G1/2 before connecting to the product. Outer diameter 21mm AC 220V 2. First, connected the Connecting Pipe to the pipeline, then to connect with the mortar inlet end and Connecting Pipe.
- Page 4 Note: a.The sensor window of control box module must be in beneath. (see Figure 5) with an infrared transmitting b. The indicator will flash 1 second upon connected angle of about 20 downward. power, then enter standby of normal induction. 0.7Mpa USER'S GUIDE The sensing distance of this product is set at within...
- Page 5 MAINTENANCE Clean the Filter Screen If the flushing volume reclines sharply after installation or used for a long time with no cause from water pressure, the filter may need a wash. Turn off the fixed cap with filter-key, take out the filter, clean with a brush and reinstall it. Notice: Filter a.
- Page 6 TROUBLESHOOTING OF SIMPLE TROUBLESHOOTING OF SIMPLE If anything exceptional situation while use, please refer to the following expression and solve accordingly. If any further questions, call the karat service number. When the normal water supply and water pressure, the following happens. 1.
- Page 7 AC power related. 13. All electrical connection must be compliance with related regulation and codes. 14. All installation staff should be well familiar with Shanghai Kohler International Trade Co., Ltd. installation instruction. Address: Room324, 2 Xinlin Rd, 106 2...
- Page 8 TOUCHLESS URINAL SENSOR TOUCHLESS URINAL SENSOR 72870T-ST 72870T-ST SERVI C EPARTSPAGE SERVI C EPARTSPAGE 1244994 1244996 Connectine Pipe Adjustment Assy G1/2 1244995 1245863 1245000 Washer Fiter Valve Box 1245862 Valve Cover 1245023 Bracket Assy 1245004 Panel Screw 1245002 Control Box Assy 1245003 Panel 1244997...
