BEFORE YOU BEGIN
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is base upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
REQUIRED TOOLS AND MATERIALS
Open end/adjustable wrenches
Tape measure
Basin Wrench
Pipe wrench
Square
Level
Socket wrench with sockets
Screw driver
Seal tape
Connection wire
Wire cutter
Insulation tape
Bushing
1146966-T01-C
INSTALLATION INSTRUCTIONS
K-8791T-YC01(0.5L/DC)/K-8791T-YC03(0.5L/AC)
K-8988T-C01(1L/DC)/K-8988T-C03(1L/AC)
安装之前
请仔细阅读本说明书，以便了解所需工具、材料及安装
程序。请遵照相关章节进行安装，以避免由于安装不当
而导致不必要的损失。除了有关部门正确的安装方法之
外，还务请阅读所有操作及安全说明。
本说明书所含一切资料，均以印刷时所有的最新产品为
准。科勒中国公司保留随时更改产品特性、包装或供应
情况的权利，恕不另行通知。
本说明书也包含了有关护理、清洁及保养等重要资料
请交予用户保存。
所需工具及材料
开口/活动板钳
卷尺
梅花板钳
管扳手
直角尺
水平尺
管钳子
十字螺丝刀
生料带
连接线
剥线器
绝缘胶布
电工套管
帕蒂欧 PATIO
小便器感应器
Urinal Sensor
安装说明书
2013
2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

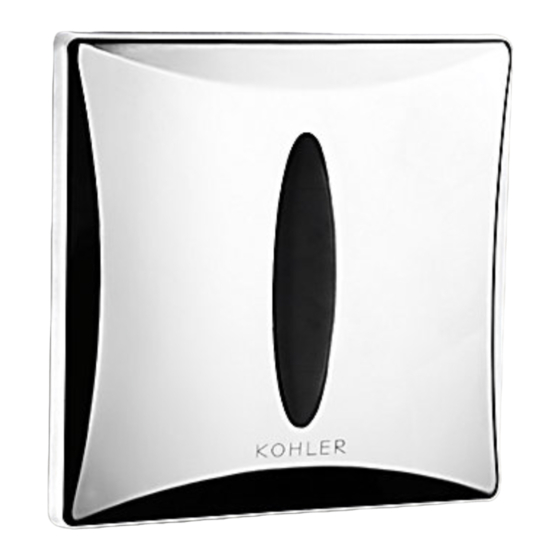

Related Manuals for Kohler PATIO K-8791T-YC01(0.5L/DC)
Summary of Contents for Kohler PATIO K-8791T-YC01(0.5L/DC)
- Page 1 本说明书所含一切资料，均以印刷时所有的最新产品为 All information in these instructions is base upon the 准。科勒中国公司保留随时更改产品特性、包装或供应 latest product information available at the time of publication. Kohler China reserves the right to make 情况的权利，恕不另行通知。 changes in product characteristics, packaging, or availability at any time without notice.
-
Page 2: Sensor Specifications
感应器规格 SENSOR SPECIFICATIONS 8791T-YC01(0.5L/直流型) 8791T-YC01(0.5L/DC) 8791T-YC03(0.5L/交流型) 8791T-YC03(0.5L/AC) Model 型 号 8988T-C01(1L/直流型) 8988T-C01(1L/DC) 8988T-C03(1L/交流型) 8988T-C03(1L/AC) 2节7号碱性电池（AAA x 2)(直流型) 2 " AAA" size alkaline batteries 电 源 Power 220V AC 50/60Hz(交流型) 220V AC 50/60Hz( Water pressure at 0.18~0.55 MPa: 水压为0.18～0.55MPa时， average flushing is no more than 0.5L 平均冲水量不大于0.5L Water pressure at 0.1 MPa: 水压为... -
Page 3: Product Page
PRODUCT PAGE 产品图 1045451-SP "O" Ring 1045450-SP Gasket "O" 1045448-SP 1109605-SP Center Unit Spring Stop Valve Assy. 止水阀组件 1039036-SP Adjustment Bolt 1045449-SP Filter Bolt Center Unit Assy 1045447-SP "O" Ring 1039038-SP "O" Lock Nut Filter 1045451-SP "O" Ring "O" Valve Box Fixed Cap Valve Body 1045445-SP... - Page 4 尺寸图 ROUGHING-IN UNIT mm 单位：毫米 K-4960T-ER K-4960T-ET 3/4” K-4904T-ER K-4904T-ET K-5016T-YER K-5016T-YET K-4986T-ER K-18645T-Y-0 1146966-T01-C...
- Page 5 感应器 所配小便器 (Sensor) (Match the Urinal) 8988T-C01 K-4960T-ER、K-4960T-ET、K-18645T-Y-0、 K-5016T-YER、K-5016T-YET 8988T-C03 K-4904T-ER K-4904T-ET K-4986T-ER、K-18645T-Y-0、 8791T-YC01 K-5016T-YER、K-5016T-YET 8791T-YC03 Note: a. The dimensions above are just for reference. b.The connection take between the outlet connection and urinal is not supplied in this package. Please use K-2464T-NA as top inlet, use stainless K-2464T-NA, steel hose as rear inlet...
-
Page 6: Installation
INSTALLATION 安装步骤 1. Determine the installation location pre rough-in dimensions. Chisel out a slot and install the supply tubing. Turn off the water supply. The depth of the slot is no less than 80mm, Install bushing see the figure right for rough-in dimension requirement. 适合安装... - Page 7 Connector A. Fig.#1: AC power unit connection way 1: AC power unit is directly connected to electric control box. Fig.#2: AC power unit connection way 2: AC power unit is connected to electric control box by connection wire. 16306T-NA Fig.#1 AC Power Unit Connector Connector...
- Page 8 Notice: 注意: a. Keep the connector away from water. a. 不要让电线接插件接触水。 b. Don’t mistake the direction of inlet and outlet. b. 不要将进出水方向弄错。 c. Do not connect the DC output of AC power unit to AC c. 不可将交流电源盒的直流输出端与交流电连接。 power supply. d. Do not connect to power supply while installing. Connection d.
- Page 9 5. While using DC power, take out the battery box from the back side of cover. Loose the screws of the battery box assy with a screw drive. Put 2 “AAA” size alkaline batteries and tighten the battery box cover with the screws.
-
Page 10: Maintenance
Flushing Volume If you need to regulate the flushing volume, you can take off the cover and turn the adjusting screw in the center of the stop valve to a proper place. 水流量 如需调节水流量，取下面板，旋动止水阀中心的水量调节螺钉 至适量即可。 Manual Flushing Approach the supplied special magnetic stick (flushing control stick) to the middle part of the sensor lens. -
Page 11: Troubleshooting
清洁保养 CARE & CLEAN 保持窗口清洁，可用蘸有中性清洁剂的软布擦洗。 Keep the sensor window clean. wipe the soft cloth and mild cleaner. 注意： NOTE: a.禁止使用去污粉、研磨粉及油类、酸性类、碱性类清 a. Do not use dust-removing powder, abrasive powder or cleaner 洁剂。 containing oil, acid or alkaline ingredient. b 禁止直接对感应窗口喷洒空气清新剂、消毒液或其他 b. Do not spray air-refresher, disinfect, or other deodorizing, 除臭、清洁类有机溶剂。... -
Page 12: Important Consumer Information
用户须知 IMPORTANT CONSUMER INFORMATION 用户责任 Consurmer Responsibilities 1. Do not attack the sensor. 1. 请勿敲击感应窗口。 2. Do not directlyflush the sensor with water. The sensor is 2. 感应器为电子器具，请勿直接用水冲洗。 an electronic instrument. 3. Do not let sunlight or other light source enter or be 3.
