8787T-B01
8787T-B03
average flushing is no more than 3.8L
0.05~0.86MPa
1106445-T01-A
8787T-B01
8787T-B03
冲洗方式
-1-
巴尔顿 BARDON
URINAL SENSOR
INSTALLATION INSTRUCTIONS
K-8787T-B01(DC/直流型)
K-8787T-B03(AC/交流型)
8787T-B01
8787T-B03
8787T-B01
8787T-B03
平均冲水量不大于3.8L
0.05~0.86MPa
两段冲洗
小便感应器
安装说明书
2008
2008
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler 8787T-B01
Summary of Contents for Kohler 8787T-B01

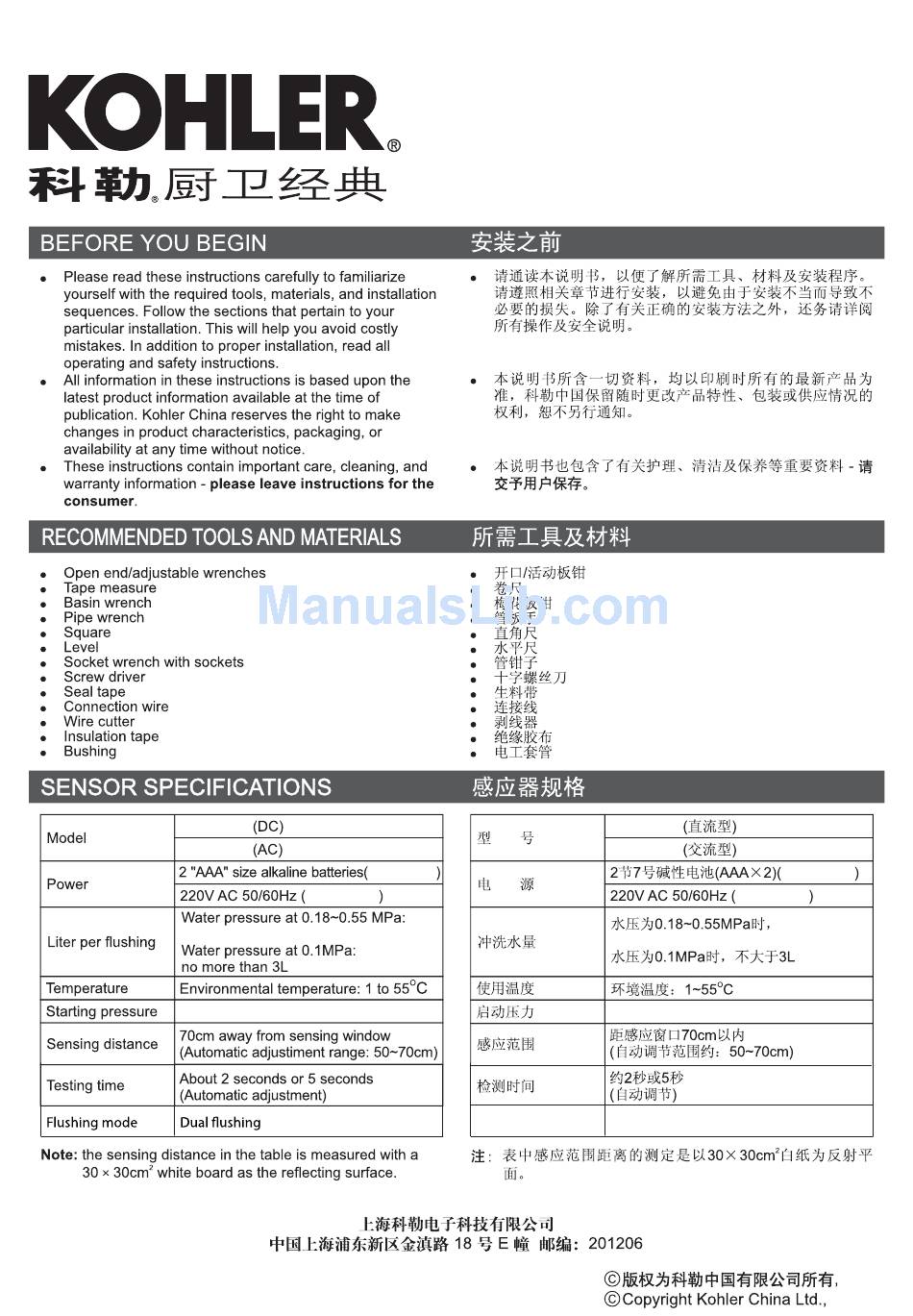

- Page 1 巴尔顿 BARDON 小便感应器 URINAL SENSOR 安装说明书 INSTALLATION INSTRUCTIONS K-8787T-B01(DC/直流型) K-8787T-B03(AC/交流型) 8787T-B01 8787T-B01 8787T-B03 8787T-B03 8787T-B01 8787T-B01 8787T-B03 8787T-B03 average flushing is no more than 3.8L 平均冲水量不大于3.8L 0.05~0.86MPa 0.05~0.86MPa 冲洗方式 两段冲洗 2008 1106445-T01-A 2008...
- Page 2 阀体 1045445 "O" Ring 1108556 "O"型圈 1056053 Bracket Assy. 1045441 Battery Box Assy. "O" Ring 固定板组件 电池盒组件 "O"型圈 8787T-B01 Use Only Screw M4X5 交流电源 8787T-B01 选用 螺钉M4X5 Screw M3X8 螺钉 M3X8 "O" Ring "O"型圈 Screw M3X6 Connector 十字沉头螺钉M3X6 接插件 16306T-NA...
- Page 3 1/2”接头 1/2”接头 1/2”接头 3/4” Spud 320±40 1/2”接头 管接头 3/4” Spud 管接头 K-19699 K-18645T 1/2”接头 1/2”接头 1/2”接头 1/2”接头 420±40 515±20 1/2”接头 1/2”接头 K-4978T-ET K-4978T-ER 1/2”接头 1/2”接头 1/2”接头 1/2”接头 1106445-T01-A...
- Page 4 8787T-B03 8787T-B03 NOTE: It is recommended that a temporary rubber or plastic hose is attached to the inlet pipe, and the water supply line should be flushed clean of dirt and debris. 注意：建议在连接供水时,在供水管上连接一个临时橡皮或塑料软 管，冲洗供水管道，确保水干净，管道内无沙石、污垢等。 8787T- 8787T-B03 8787T-B01 8787T-B03 1106445-T01-A...
- Page 5 警告：一个交流电源盒最多可连接两个感应器。 1106445-T01-A...
- Page 6 8787T-B01 8787T-B03 anticlockwise to 8787T-B01 8787T-B03 逆时针 顺时针 1106445-T01-A...
- Page 7 在电源接通前，务必清理感应窗口前的杂物， Set Working Status The product comes our factory with: 1. The working status is set as dual-flush. If you want to cancel the first flushing function, place manual flush stick adjacent to right side of sensing window for more than 1 second during the 10-minute standby period (Human presence in sensing range would cause the indicator to flash fast).The sensor would generate a flushing cycle to...
- Page 8 Hex Pan 1106445-T01-A...
- Page 9 1106445-T01-A...
- Page 10 1. The small hole of diaphragms assembly 1. Clean the small hole of diaphragms Keep flushing indicator not is blocked. assembly flashing. 2. Foreign objects exist in valve chamber 2. Clean the valve chamber and diaphragms with a brush 1. Out of electricity (DC) 1.
- Page 11 1106445-T01-A -11-...
