PCE Health and Fitness PCE-CS 3000N Manual

Crane scales
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Unit 11
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From Outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@pce-instruments.com
www.pce-instruments.com/english
www.pce-instruments.com
Manual

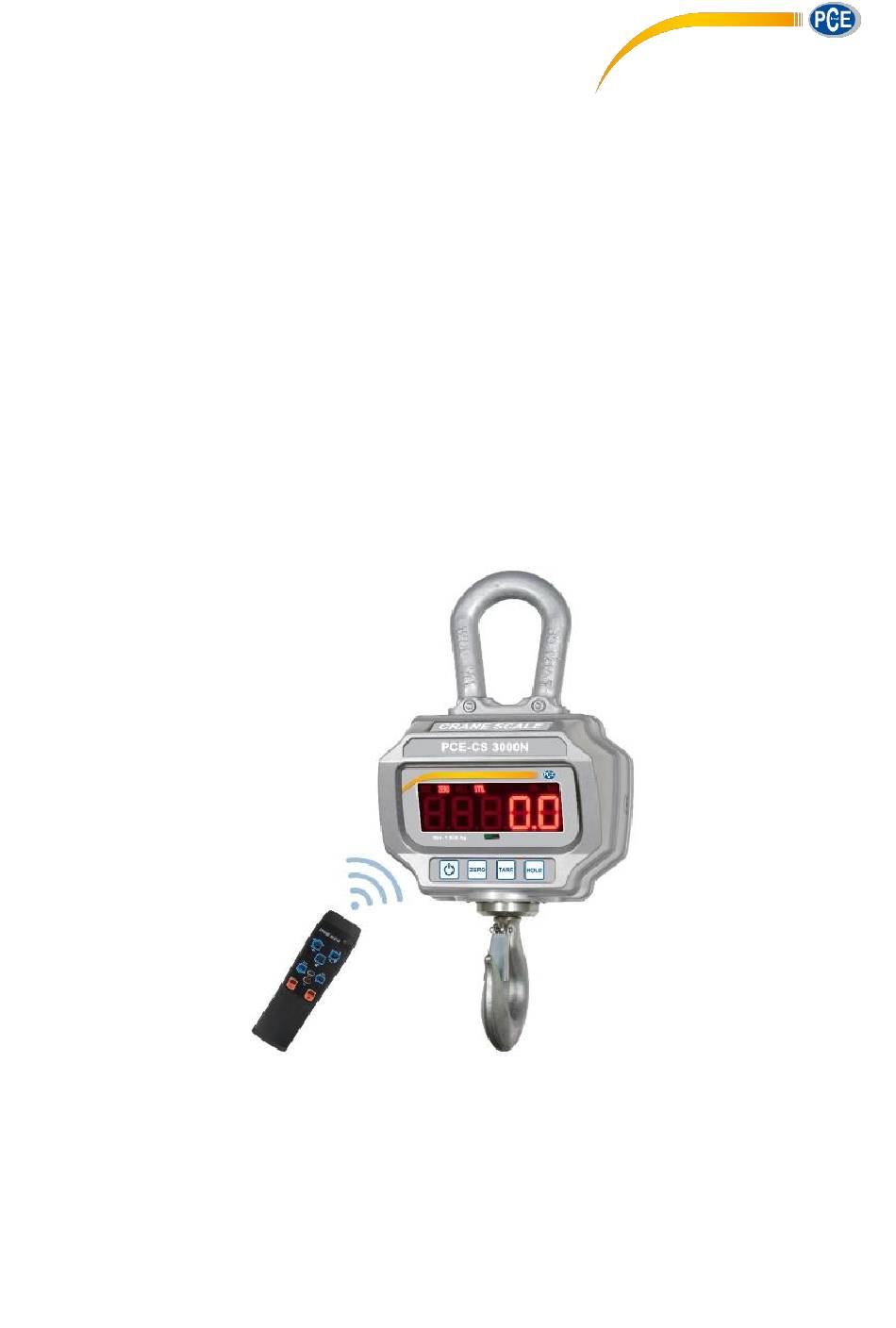

Crane Scales PCE-CS 3000 / 5000 N
Version 1.0
Date of creation: 15/12/2014
Date of last change: 12.02.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-CS 3000N and is the answer not in the manual?

Questions and answers

Related Manuals for PCE Health and Fitness PCE-CS 3000N

Summary of Contents for PCE Health and Fitness PCE-CS 3000N

  • Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Unit 11 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From Outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com...

  • Page 2: Table Of Contents

    Contents Introduction ......................3 Safety notes ......................3 General ............................3 Maintenance and inspection ....................... 4 Specifications ......................5 System description ....................6 Meter ............................6 Remote control ........................... 7 Instructions ......................8 To switch the device on and off ....................8 Zero ............................

  • Page 3: Introduction

    Manual Introduction Thank you for purchasing Crane Scales PCE-CS 3000 / 5000 N from PCE Instruments. These crane scales are useful for on-site check weighings. Power is provided via an internal rechargeable battery. In order to ensure exact dosing, the crane scales have a tare function and a sum function.

  • Page 4: Maintenance And Inspection

    Manual - When you use the equipment, you must always observe the possible danger zone. Do not enter the danger zone during use. This does not only include the area directly under the load but also the areas which can be dangerous due to e. g. swinging ropes or other load suspension devices. This manual is published by PCE Instruments without any guarantee.

  • Page 5: Specifications

    Manual Specifications Technical data Measurement range PCE-CS 3000N 3000 kg / 3 t PCE-CS 5000N 5000 kg / 5 t Resolution PCE-CS 3000N 0.5 kg PCE-CS 5000N 1 kg Tare range 100 % f. s. Zero range 4 % f. s.

  • Page 6: System Description

    Manual System description Meter 4-1 Infrared sensor 4-2 “Zero” key 4-3 “Power” key 4-4 Display 4-5 “Tare” key 4-6 “Hold” key Display shows the measurement values “Power” key switches the device on or off Infrared sensor sensor for remote control “Tare”...

  • Page 7: Remote Control

    Manual Remote control 4-1 Up / Zero 4-2 Hold key / Enter 4-3 Down 4-4 Change unit 4-5 Switches the device off 4-6 Right / Tare 4-7 Decimal point 4-8 Left 4-9 Setup Up / Zero to go up one value to set the measurement value to zero Hold key / Enter to hold the value...

  • Page 8: Instructions

    Manual Instructions To switch the device on and off - Press the “On/Off” key until you hear an acoustic signal. The display will now indicate “8.8.8.8.8.” After this, the maximum weight “3000.0” is shown. This means 3000 kilogrammes or 3 tonnes. At the end, the battery level is indicated in per cent.

  • Page 9: To Set Automatic Switch-Off

    Manual 5.7.1 To set automatic switch-off . The display will now show “off (time)”. - Press - Now press “→0←” to change the time in minutes. until “End” is displayed. - To save the settings, press 5.7.2 To set the backlight twice.
  • Page 10 Manual 5.9.2.2 Automatic zero tolerance twice. “ (percentage value)” is displayed. - To set automatic zero tolerance, press - By means of the arrow keys on the remote control, you can adjust the tolerance. You can choose between 0 (off), 2 (±2 % f. s.), 3 (±3 % f. s.), 4 (±4 % f. s.), 10 (±10 % f. s.), 20 (±20 % f. s.) and 100 (±100 % f.

  • Page 11: Calibration

    Manual 5.9.2.9 To set the gravitational acceleration nine times. “ (value)“ will be displayed. - To set the gravitational acceleration, press - You can change the value by means of the arrow keys on the remote control. The lowest value is 0,000 abd the highest value is 9,999.
  • Page 12 Manual 5.9.3.3 Linear calibration For calibration, 3 different weights with high weight differences are recommended. The scales must hang freely at each measurement. again. “LoAd0” is displayed. - To change the linear calibration, press - Press again to start the measurement. - Wait until the measurement is stable.

  • Page 13: Disposal

    Manual Disposal For the disposal of batteries, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose. In order to comply with the EU directive 2012/19/EU we take our devices back.

This manual is also suitable for:

Pce-cs 5000n
