Operator's Manual
RE642
Syct
2-Man
™
Syct
- Stability You Can Trust
™
Ladder Stand
Maximum Height - 17' 7" to shooting rail
Maximum Field Rating - 500 lbs;
no more than 300 lbs per person.
Tree Diameter Range - 12" to 20"
Wear Your
Harness!
GAS/OIL
PRODUCT MEETS
RATIO
INDUSTRY STANDARDS
50:1
RECOGNIZED BY
PARTICIPATING MEMBER
P/N: 23785
REV1: 02/25/16
Get parts online at
© 2016 RETI
www.HuntRiversEdge.com
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Rivers Edge Syct RE642
Summary of Contents for Rivers Edge Syct RE642

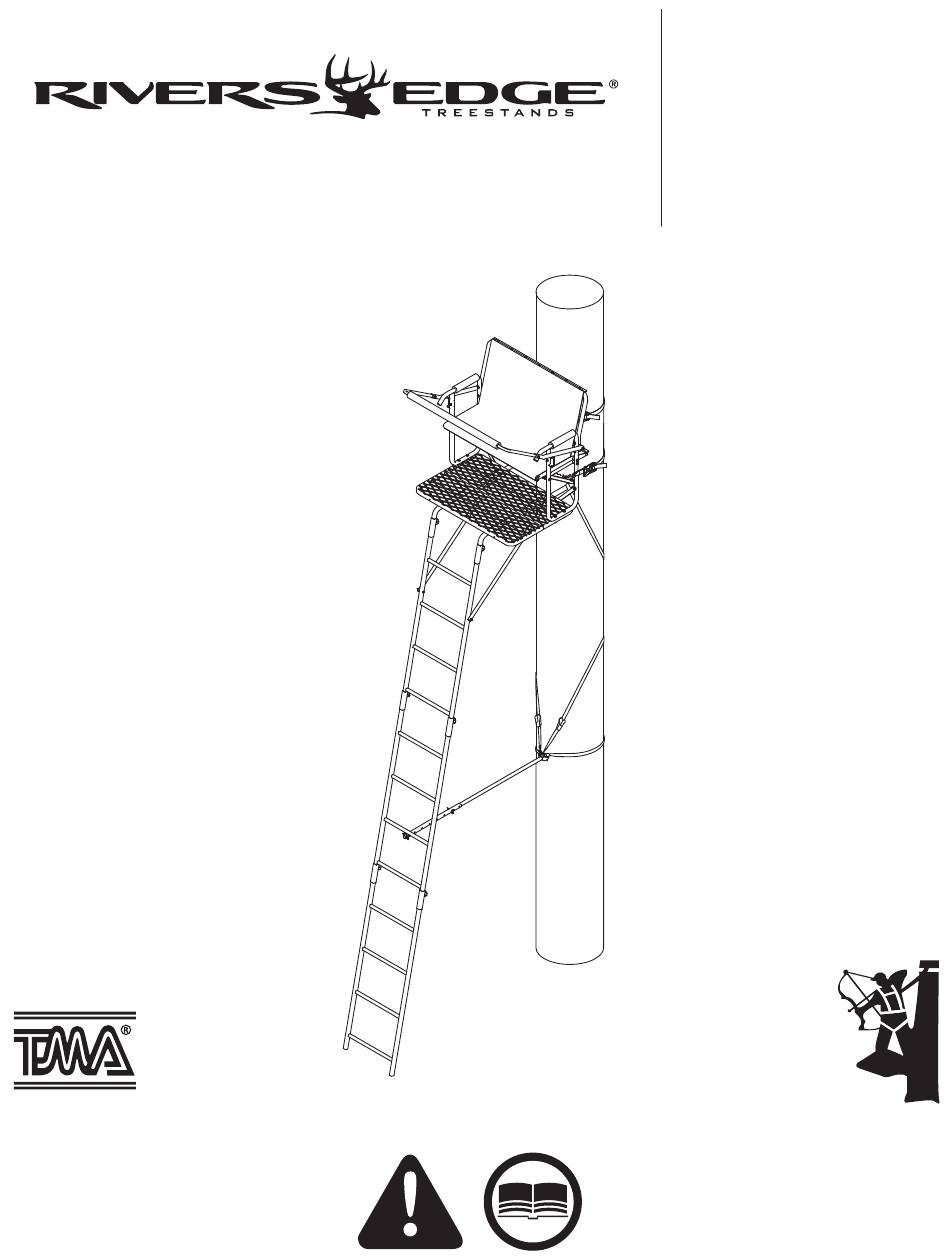

- Page 1 Operator's Manual RE642 Syct 2-Man ™ Syct - Stability You Can Trust ™ Ladder Stand Maximum Height - 17' 7" to shooting rail Maximum Field Rating - 500 lbs; no more than 300 lbs per person. Tree Diameter Range - 12" to 20" Wear Your Harness! GAS/OIL...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® cus- tomer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual Syct 2-Man Ladder Stand ™ MODEL RE642 WARNING MAXIMUM USE HEIGHT - 17' 7" TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - TWO (2) Pull up a bow, backpack, or firearm or other equipment only after being secure in the treestand and a firearm TOTAL WEIGHT LIMIT - 500 LB (300 lb Per Person Max) -
Page 4: Inspection And Maintenance
Operator's Manual Syct 2-Man Ladder Stand ™ INSPECTION AND MAINTENANCE SCHEDULE WARNING BEFORE EACH USE PERFORM THE FOLLOWING: Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and • Inspect all webbing, rope, cord, and strap assemblies for stepping onto the platform. -
Page 5: Assembly Instructions
Operator's Manual Syct 2-Man Ladder Stand ™ ASSEMBLY INSTRUCTIONS Tools needed: two 7/16" wrenches IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combinations completely until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the lock nut on the bolt while helping alignment of all parts! After all parts are assembled together, all nut &... - Page 6 Operator's Manual Syct 2-Man Ladder Stand ™ 7. Attach the seat/frame assembly (17) to the inside of side seat FIGURE 6 support loops (8) using two 1/4-20 x 2-3/4” bolts (25), yellow washers (30), nylon spacers (31) and locknuts (27). SEE FIGURE 5. NOTE: The mesh seat is not shown in FIGURE 5 for ease of assembly view although it is already factory assembled to the metal seat frame.
- Page 7 Operator's Manual Syct 2-Man Ladder Stand ™ 11. a. Attach the two shooting rail stop mounts (16) to the side seat support loops (8) using two 1/4-20 x 1-1/2” bolts (22) and locknuts (27). Be sure that each mount is oriented to the outside of each side seat support loop.
- Page 8 Operator's Manual Syct 2-Man Ladder Stand ™ 17. Attach the two 9” pads (19) and one 36” pad (20) to the armrests and shooting rail by wrapping around tubing and attaching Velcro together. 18. a. Attach the stabilizer bar extension tube (4) to the middle ladder section (2) mounting bracket using one wing bolt (26) and wing nut (28).
- Page 9 Operator's Manual Syct 2-Man Ladder Stand ™ WARNING WARNING Double check assembly steps to be certain you have Always wear the appropriate footwear when using a correctly assembled this product. ladder treestand. A good non-slip safety boot is important to your personal safety. Be especially careful that boot laces Study your new stand to become familiar with all of its do not get hooked on the stand or any of its components features and design.
-
Page 10: Setup And Use Instructions
Operator's Manual Syct 2-Man Ladder Stand ™ SETUP AND USE INSTRUCTIONS WARNING During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness (Fall Arrest Only use approved RETI parts. Failure to do so may result System). - Page 11 Operator's Manual Syct 2-Man Ladder Stand ™ 4. a. With long criss cross ratchet strap with S-hook (36) now in hand, FIGURE 17A FIGURE 17B feed the long strap hanging down from platform through the center slot of ratcheting mechanism and back around through tightening lever.
-
Page 12: Finish Ladder
Operator's Manual Syct 2-Man Ladder Stand ™ FINISHED LADDER ASSEMBLED LARGE STABILITY PLATFORM RATCHET STRAPS SECTION LONG CRISS CROSS RATCHET STRAPS TOP LADDER WITH S-HOOKS SECTION MIDDLE LADDER SECTION STABILIZER BAR RATCHET STRAP WITH SEWN LOOPS BARK BITING STABILITY BAR BOTTOM LADDER SECTION SILENT KNOB... -
Page 13: Bolt Identification Chart
Operator's Manual Syct 2-Man Ladder Stand ™ BOLT IDENTIFICATION CHART Not all bolt sizes shown are included with all treestands. Bolts shown are for size reference only. Extra hardware may be included in the parts bag. 1/4-20 x 1-1/2" grade 5 hex head bolt 1/4-20 x 2-1/4"... -
Page 14: Parts Breakdown
Operator's Manual Syct 2-Man Ladder Stand ™ PARTS BREAKDOWN 27 30 31 29 25 11 MESH HIDDEN FOR CLARITY Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 15 Operator's Manual Syct 2-Man Ladder Stand ™ PARTS BREAKDOWN ITEMS NOT SHOWN: KEY # PART # DESCRIPTION QTY. KEY # PART # DESCRIPTION QTY. 23880 BOTTOM LADDER SECTION 10531 FULL BODY HARNESS (FAS) 23879 MIDDLE LADDER SECTION 23610 1-1/2 RATCHET STRAP 23878 TOP LADDER SECTION 11064...
- Page 16 Rivers Edge® Treestands, Inc. 1160 Eighth Avenue, PO Box 755 Cumberland, WI 54829 800-450-EDGE (3343) | Fax 715-822-2124 Email: info@huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images...
