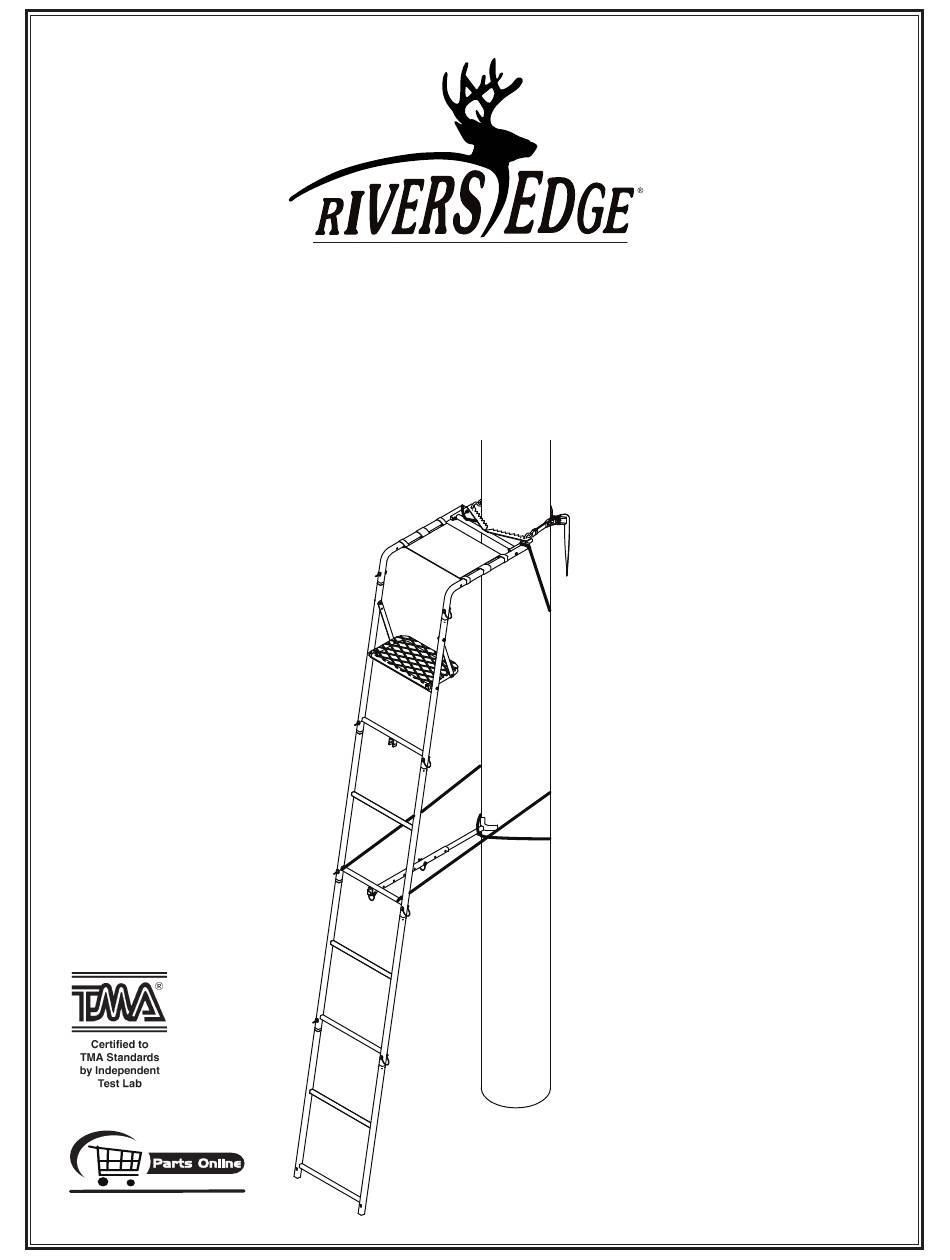

- Page 1 TREESTANDS HuntRiversEdge.com LADDER INSTRUCTIONS 13' Pack-N-Stack Ladder Model RE622 ™ Maximum Height - 13' Maximum Field Rating - 300 lbs. Tree Diameter Range - 12" to 20" OMre62209 rev. 1/16/09 HuntRiversEdge.com © 2009 rivers edge Treestands, Inc. All rights reserved.
- Page 2 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS rivers edge Treestands are engineered with you the hunter in mind. wARNING We appreciate your purchase of one of our world class ladder stands. Follow these few simple instructions and your stand will provide you DO NOT USE THIS PRODUCT UNTIL YOU HAVE wATCHED many years of trouble-free pleasure.
- Page 3 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS 5. Sections are assembled on the ground in the following order: bottom wARNING section (SL62 ladder); second section (SL62 ladder); third section (SL63 ladder with stabilizer bar mount); fourth section (assembled SL64 ladder FOOT PLATFORM AND SITTING SECTION MUST ALwAYS with foot platform);...
-
Page 4: Setup And Use Instructions
HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS SETUP AND USE INSTRUCTIONS wARNING 1. With assembled product lying on the ground in assembled position, position one person at bottom end of ladder lying on the ground. YOU MUST ALwAYS USE THE PROVIDED FULL BODY HAR-... - Page 5 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS 4. Standing on ladder step, lean toward tree with ratchet strap now in hand, wARNING hook "S" hook with long strap through hole provided on tree blade. Feed the long strap through the center (slot) of ratcheting mechanism and back READ AND PERFORM ALL MAINTENANCE TASKS AS around through tightening lever.
- Page 6 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS FINISHED 13’ PACK-N-STACK™ LADDER top section ratchet strap fourth section 15' tie-off ropes third section 9' stabilizer bar rope stabilizer bar extension tube second section spring lock pins bottom section Page 6 800-450-EDGE (3343)
- Page 7 • remove ladder after every use, store product indoors. STABILIZER BAR MUST ALwAYS BE CORRECTLY AND • Use only rivers edge original replacement parts. SECURELY ATTACHED TO LADDER AND TREE BEFORE • Lean forward, towards tree, when ascending and descending ladder.
-
Page 8: Inspection And Maintenance Schedule
Treestands, Inc., offers a lifetime warranty to be free from defects in materials and workmanship. This warranty applies to the original owner with a proof of purchase. All items attached to our stands (seat, strap, rope, wood, etc.) that are degradable are warranted for a period of one year. There is no warranty on paint. - Page 9 THE PROVIDED FULL BODY HARNESS (FAS) IS DESIGNED TO STOP YOUR FALL, BUT DOES NOT REMOVE THE RISK DO NOT USE THIS OR ANY OTHER RIVERS EDGE PRODUCT OF SERIOUS PERSONAL INJURY OR DEATH. IF YOU DO NOT IF YOU HAVE A HISTORY OF HEALTH PROBLEMS SUCH AS...
- Page 10 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS USING YOUR FULL BODY HARNESS (FALL ARREST SYSTEM) PUTTING ON YOUR FULL BODY HARNESS 1. With the Full Body Harness (FAS) lying on the ground, familiarize yourself with all of its design and features. SEE FIGURE 1.
- Page 11 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS 6. Tighten and adjust each leg strap so they are tight to your legs, but not wARNING uncomfortably tight. SEE FIGURE 5. 7. Feed waist strap through waist strap adjustment slide. Tighten and adjust BE SURE THAT YOU ARE wEARING YOUR FULL BODY the waist strap so it is tight fit to your body, but not uncomfortably tight.
- Page 12 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS FULL BODY HARNESS (FAS) USED wITH TREE BELT SUPPLIED wITH ALL LADDER STYLE TREESTANDS This is the primary attachment method when using a Full Body wARNING Harness (FAS). This method must be used while in your final hunt- ing position with any type of treestand.
- Page 13 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS wARNING wARNING THE SUSPENSION RELIEF DEVICE (SRD) STRAP MUST IN CASe OF A FALL… BE ON YOUR PERSON AND ALwAYS BE READILY AC- DO NOT PANIC! This Full Body Harness (Fall Arrest System) is de- CESSIBLE TO YOU wHILE wEARING THE FULL BODY signed to prevent a fall to the ground.
- Page 14 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS ALwAYS… wARNING • Be physically fit, mentally alert, and well rested before using this product. EXTREME wARNING! IF FALL OCCURS wHILE USING • read and understand all instructions provided and warnings listed before THIS FULL BODY HARNESS (FALL ARREST SYSTEM) each use and save for future reference.
- Page 15 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS LADDER PARTS 800-450-EDGE (3343) Page 15 HuntRiversEdge.com...
-
Page 16: Bolt Identification Chart
HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS LADDER PARTS LIST BOLT IDENTIFICATION CHART KEY # PART # DESCRIPTION QTY. Not all bolt sizes shown are included with all treestands. Bolts shown are for size reference only. extra hardware may be 48240B BOLT, HHCS Gr5 BLK 1/4-20 X 1-1/2"... - Page 17 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ 800-450-EDGE (3343) Page 17...
- Page 18 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ Page 18 800-450-EDGE (3343)
- Page 19 HuntRiversEdge.com 13' Pack-N-Stack Ladder (RE622) ™ TREESTANDS NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ 800-450-EDGE (3343) Page 19...
- Page 20 Universal Treestand Canopy $59.99 Protect yourself from the elements. Has a strong ratchet for attaching to trees along with a sturdy steel construction. exclusive rivers edge Fall Camouflage. Universal design, will work on all treestands. 48155 Full Body Harness (FAS) w/SrD $29.99...
