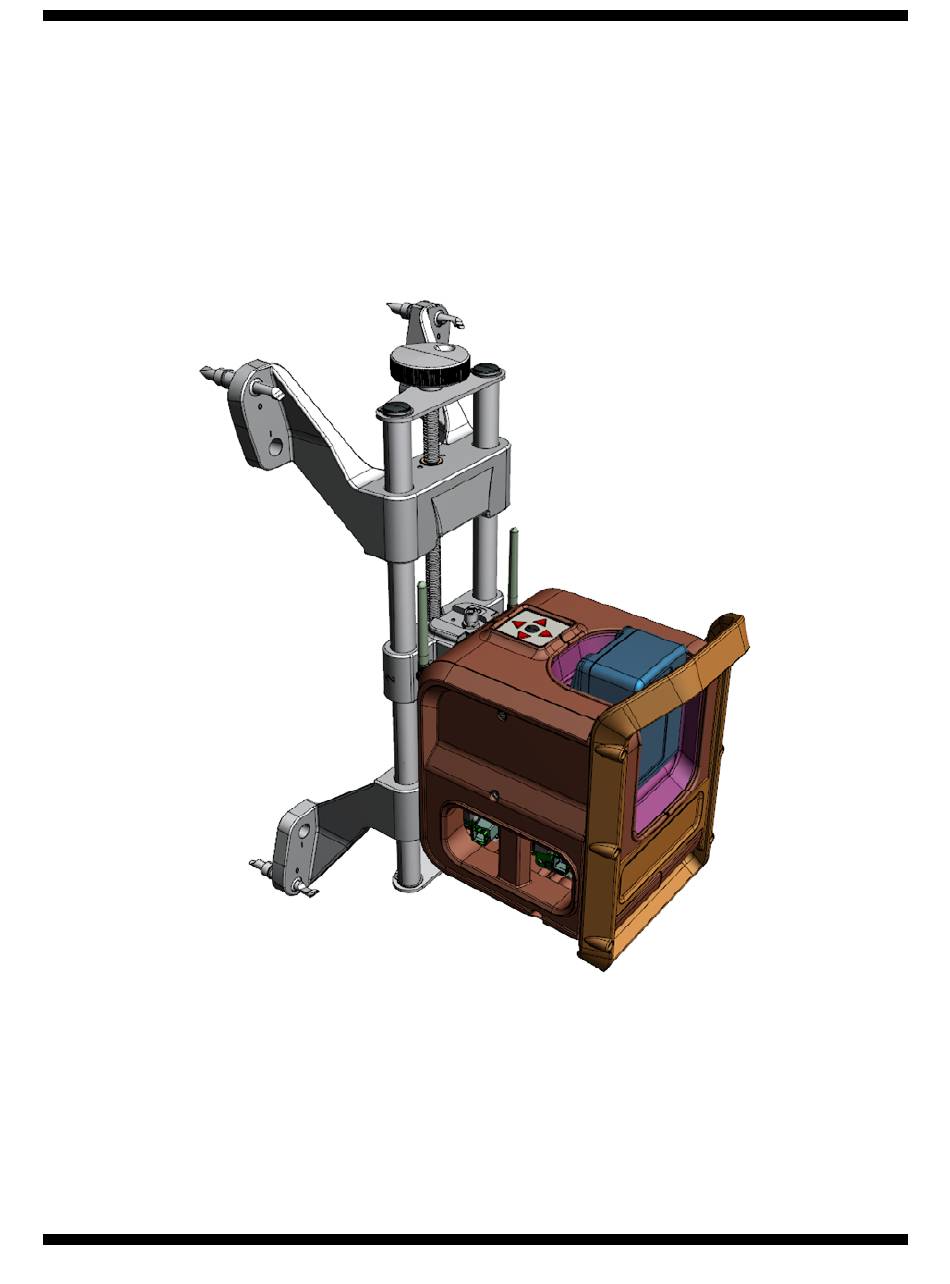

- Page 1 Portable Imaging Aligner Quick Start Operators Manual Form ZEEWAEU551H Rev A...
- Page 2 V1200 Quick Start Page 2...
- Page 3 Safety SAFETY INFORMATION For your safety, read this manual thoroughly before operating the equipment. The Aligner is intended for use by properly trained skilled automotive technicians. The safety messages presented in this section and throughout the manual are reminders to the operator to exercise extreme care when performing wheel alignments with this product.
- Page 4 Snap-on Equipment bestaetigt, dass die O.G. Ausruestung den O.G. Richtlinien und Normen entspricht. Snap-on Equipment attesta che il materiale sopra citato e conforme alle sopra citate direttive e normative. Snap-on Equipment declara que o equipamento acima especificado esta conforme as directivas e normas supra citadas.
-
Page 5: Table Of Contents
Table of ConTenTs SyStem Startup ......................7 SHuttING OFF tHe aLIGNer ..................8 SyStem maIN meNu ....................8 Battery INStaLLatION ....................9 pOWerING ON/OFF pODS ................... 9 Battery CHarGING ....................11 Battery paCk ......................11 FueL GauGe ......................... 11 attaCHING pODS tO tHe raCk ................12 pOD StOraGe ...................... - Page 6 Page 6...
-
Page 7: System Startup
Quick Start SyStem Startup Once the aligner is in the alignment location plug power cord into the wall outlet. System power requirements: 100-230v aC, 15 amp Circuit, 50/60HZ. (must have earth ground) Step one - Power on the Rear Pods and Left Reference Pod by momentarily pressing and releasing the I/O button. -
Page 8: Shutting Off The Aligner
Quick Start SHuttING OFF tHe aLIGNer Use the following steps to shut down the aligner from within the Alignment software: 1. Return to the Home Alignment screen. 2. Open the front console door and toggle the power button to the “OFF” position. 3. -
Page 9: Battery Installation
Quick Start Battery INStaLLatION NOTE: Batteries are shipped with less than 20% charge for safety. They must be charged prior to use. (See battery Charging Section) Installing batteries: Grasp battery and press firmly into the pod until seated. Removing batteries: Grasp battery, push in button on the battery and pull up. *It is recommended to remove the batteries and charge them at the end of... - Page 10 Quick Start Left Refer- Right Refer- ence Pod ence Pod Left Front Right Front Wheel Target Wheel Target Right Left Rear Rear Pod Page 10...
-
Page 11: Battery Charging
Quick Start Battery CHarGING 1. Insert battery pack in the charger. Position the battery pack so that the battery sits flush with the top of the char- ger. The green light will start flashing. This indicates the charger is charging the battery pack. 2. -
Page 12: Attaching Pods To The Rack
Quick Start attaCHING pODS tO tHe raCk *The pods can remain attached to the rack for storage purposes. If desired to remove the pods for storage, reverse the procedure below to remove the pods and store in the cabinet per the section on the next page. -
Page 13: Pod Storage
Quick Start pOD StOraGe When not in use, the reference pods can be stored in the bottom of the cabinet. The pods fit well when nested as shown below. 1. Insert the left reference pod (cam lever end first) on the left side of the bottom shelf. 2. -
Page 14: Maintenance - Service
- discharge cycles. Improper care and maintenance shortens battery life and the amount of time the battery holds a charge. • Use only with Snap-on charging equipment that specifies a CTB series battery pack. • Avoid short circuiting the battery pack. Permanent damage of the pack can occur from high current discharge. - Page 15 NOTES: Page 15...
- Page 16 Phone: +44 (0) 118 929 6811 · Fax: +44 (0) 118 966 2922 www.snapon-equipment.co.uk Notice: The information contained in this document is subject to change without notice. Snap-on Equipment makes no warranty with regard to this material, shall not be liable for errors contained herein or for incidental consequential damages in connection with furnishings, performance, or use of this material.
