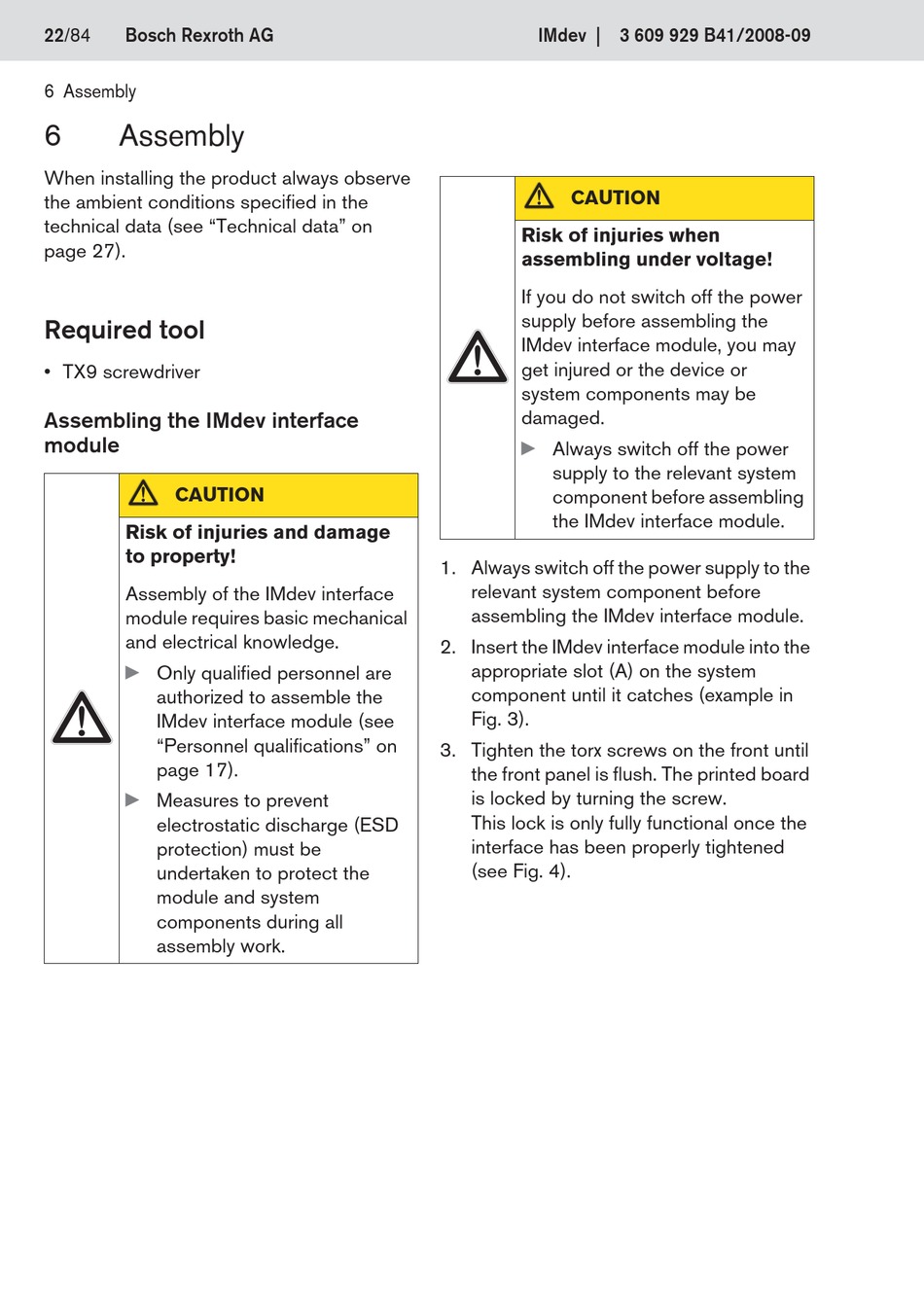

6 Assembly

6 Assembly
When installing the product always observe
the ambient conditions specified in the
technical data (see "Technical data" on
page 27).
Required tool
• TX9 screwdriver
Assembling the IMdev interface
module
CAUTION
Risk of injuries and damage
to property!
Assembly of the IMdev interface
module requires basic mechanical
and electrical knowledge.
Only qualified personnel are
y
authorized to assemble the
IMdev interface module (see
"Personnel qualifications" on
page 17).
y Measures to prevent
electrostatic discharge (ESD
protection) must be
undertaken to protect the
module and system
components during all
assembly work.
IMdev | 3 609 929 B41/2008-09
CAUTION
Risk of injuries when
assembling under voltage!
If you do not switch off the power
supply before assembling the
IMdev interface module, you may
get injured or the device or
system components may be
damaged.
y Always switch off the power
supply to the relevant system
component before assembling
the IMdev interface module.
1. Always switch off the power supply to the
relevant system component before
assembling the IMdev interface module.
2. Insert the IMdev interface module into the
appropriate slot (A) on the system
component until it catches (example in
Fig. 3).
3. Tighten the torx screws on the front until
the front panel is flush. The printed board
is locked by turning the screw.
This lock is only fully functional once the
interface has been properly tightened
(see Fig. 4).
