Wiring Diagram - Alarm Lock NETWORXPANEL Installation Instructions Manual

NETWORXPANEL

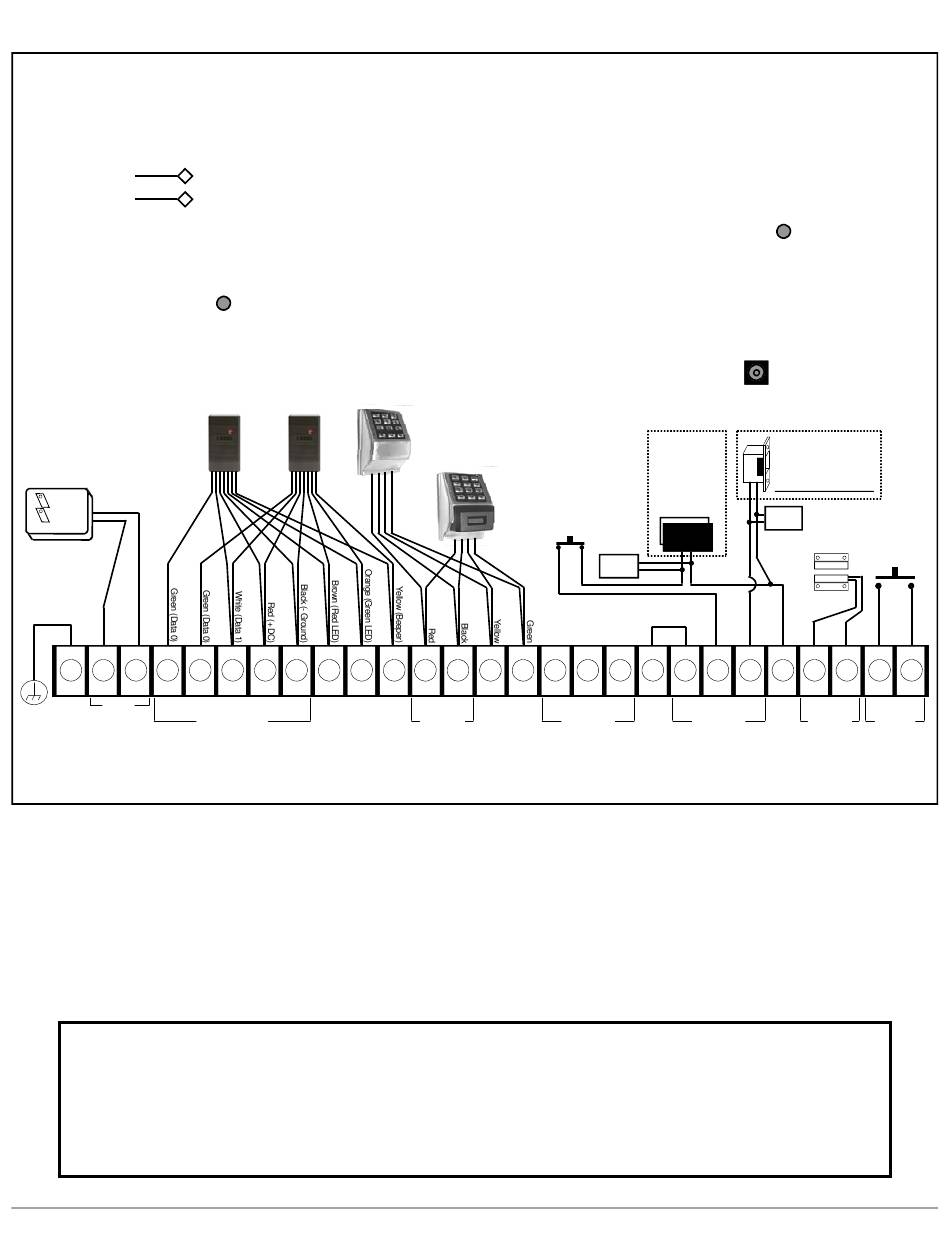

WIRING DIAGRAM

UL R/C Lead Acid
E3
4AH or 7AH
Rechargeable
E4
Battery +12V.
AC POWER LED
COLD WATER GROUND
CONNECTION
USE ONLY COLD-WATER PIPE
OR BURIED GROUND ROD.
USE AT LEAST #16 AWG WIRE
SECONDARY
WIEGAND**
AC IN, 16.5V/60HZ VIA TRF14
CLASS 2 TRANSFORMER. DO
NOT CONNECT TO SWITCHED
OUTLET. NE PAS BRANCHER À
LA SORTIE COMMUTÉE.
EGND AC IN WOA
T1 T2 T3 T4
*TSD = Transient Suppression Device (two supplied): Mount the TSD as close to the device to be protected as possible.
®
**Example device shown: HID ProxPoint
IMPORTANT: When updating the keypad firmware, the NET-
WORXPANEL firmware MUST ALSO be updated (and vise-versa).
Note: If two keypads are installed, both will be automatically
updated during the update process.
NETWORXPANEL Installation Instructions
1. ALL OUTPUT TERMINAL VOLTAGES ARE 12VDC.
2. MAXIMUM LOCK CURRENT (TERMINAL T19): 1.5A CURRENT
LIMITED.
3. BATTERY STANDBY TIME: 2 HOURS AT MAXIMUM LOAD AND
4AH BATTERY.
(+) RED
4. UNIT INTENDED TO BE MOUNTED WITH ANTENNA POINTED
(–) BLACK VERTICALLY.
5. RECOMMENDED LEAD ACID BATTERIES: YUASA NP-4-12 AND
NP7-12. LEAD ACID BATTERIES MUST BE REPLACED EVERY 5
YEARS.
GREEN
6. CAUTION: "RISK OF EXPLOSION IF THE BATTERY IS REPLACED
BY AN INCORRECT TYPE." "RISQUE D'EXPLOSION SI LA BAT-
LD2
TERIE EST REMPLACÉE PAR UN TYPE INCORRECT."
PRIMARY
PRIMARY
NETDK
WIEGAND**
RED GRN
WO W1 PWR GND
LED LED
WIEGAND INPUT
T5 T6 T7 T8 T9 T10
Plus Model 6005B.
SECONDARY
NETPDK
N/C
Emergency Exit
Switch (or Fire
Panel Relay)
SNDR TX RX
N/O
(+) (–)
DRIVE (YEL) (GRN)
KYPD PWR
T11 T12 T13 T14 T15 T16
ACTIVITY LED
RESET
BUTTON
MAG LOCK
(OR
FAIL-SAFE
ELECTRIC
DOOR
STRIKE)
TSD*
Jumper
Wire
LOCK
N/C COM COM N/C N/O
PWR
AUX RELAY MAIN RELAY
(+)
T17 T18 T19 T20 T21 T22
GREEN
LD1
S2
ELECTRIC DOOR
STRIKE
(FAIL-SECURE)
NOT FOR FIRE EXITS
TSD* Door
N/O
Position
Momentary
Contact
Switch
LOCK DOOR REMOTE
PWR POSITION RELEASE
CONTACT INPUT
(–)
T23 T24 T25 T26 T27
