Olympia L-7240 Installation Instructions

OLYMPIA FAUCETS, INC.
Interchange City Distribution Center #20
1277 Heil Quaker Boulevard
La Vergne, TN 37086
(888) 772-7701
www.olympiafaucets.com

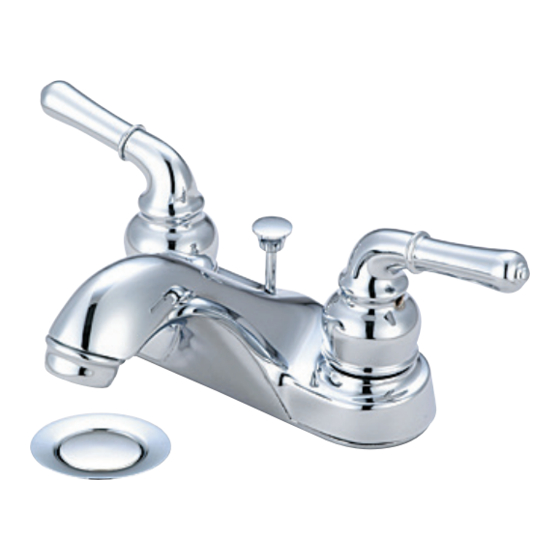

Model Number: L-7240,L-7241,L-7242,L-7270
L-7271,L-7272 (CP, PVD BN, ORB)
Warnings and Notes:
Check with local plumbing code requirements before installation.
This product should be installed by a local listed plumber.
Do not use plumbers putty on threads.

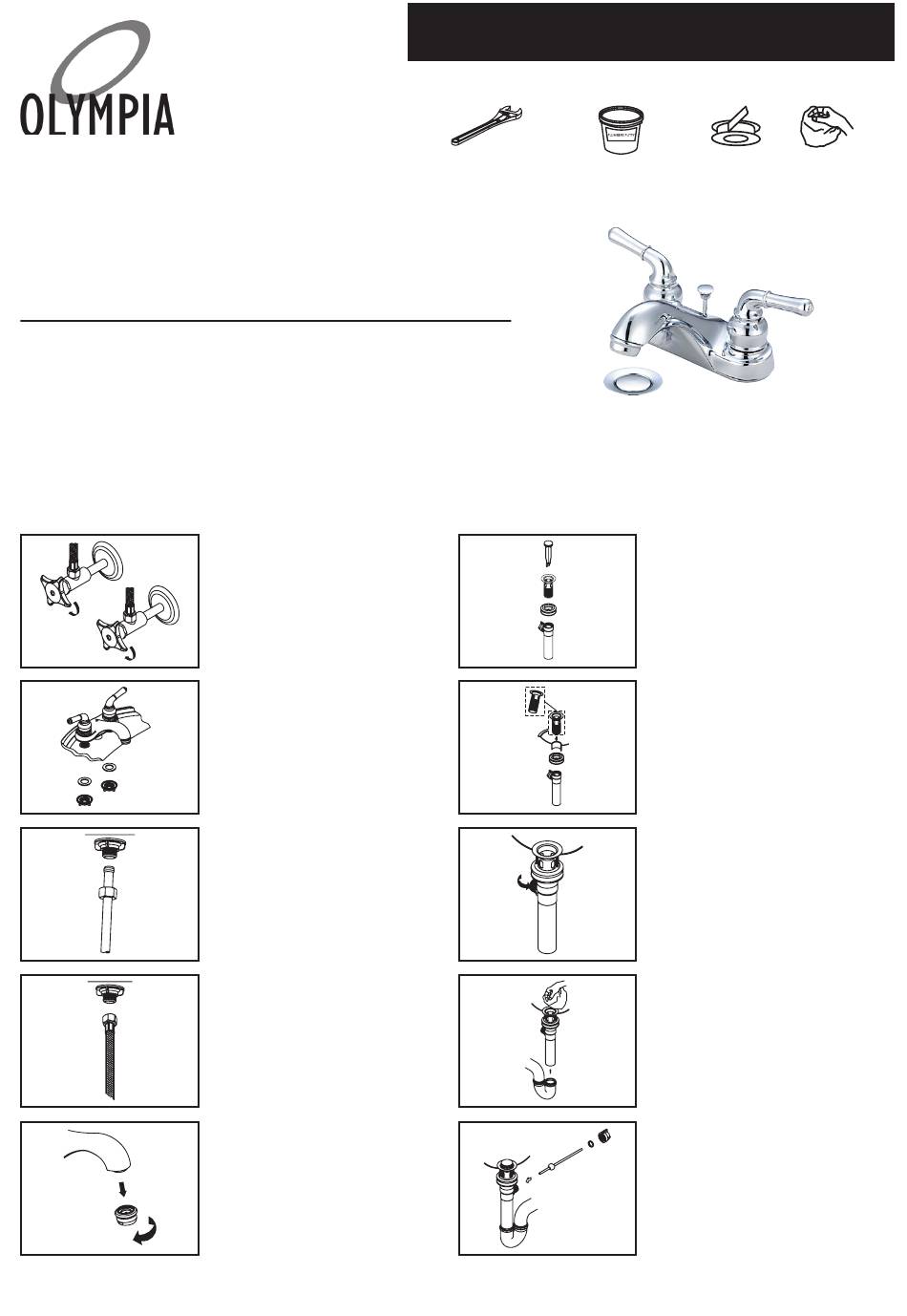

Installation Steps:
Two Handle Lavatory Faucet
(1) Shut off water supplies. Remove old faucet.
Clean mounting surface in preparation for new
faucet.
(2) Place the faucet in position on the sink.
Apply plumbers putty under the base gasket.
Install washer on shanks and tighten with
locknut.
(3a) When using ball-nose flexible supplies
to connect faucet to water supplylines, slip
coupling nut onto flexible supply. Ball-nose
coupling will go partially into shank. Tighten
coupling nut (DO NOT OVER TIGHTEN). In-
stall opposite end according to manufacturer's
instructions for both tubes..
(3b) When using stainless steel braided
faucet supply hose, this faucet requires one
end of the supply hose to have a 1/2" female
IPS connection. The other end of this supply
hose must match the thread on the water
supply valve under your sink. Once you've
identified the required size, carefully follow
the manufacturer's installation instructions for
each hose.
(4) Turn on water supplies. Check for any
minor joint leaks. Remove aerator from spout
by turning counterclockwise. Turn on both side
handles. Flush and allow water to run at full
flow at least one minute. Turn off both side
handles. Replace aerator.
Tools:
Adjustable Wrench Plumbers Putty Sealant Tape
Pop-up Drain Installation:
INSTALLATION
(1) Remove pop-up flange from body
(2) Place a ring of putty on the bottom of
flange.
(3) Insert pop-up flange through drain hole
and attach flange to body. Ensure the pop-up
outlet faces towards the back of the sink.
Tighten the locknut securely with a wrench.
Do not overtighten.
(4) Remove the excess putty. Connect the
trap (check manufacturer's instructions for
installation).
(5) Remove pivot rod nut from pop-up body,
ensure the washers is in place, insert pivot
rod, tighten pivot rod nut back to pop-up body.
Rags
