Olympia K-5020 CP Installation

OLYMPIA FAUCETS, INC.
Interchange City Distribution Center #20
1277 Heil Quaker Boulevard
La Vergne, TN 37086
(888) 772-7701
www.olympiafaucets.com
Model Number: K-5020 (CP, BN)
Warnings and Notes:
Check with local plumbing code requirements before installation.
This product should be installed by a local listed plumber.
Do not use plumbers putty on threads.

Installation Steps:

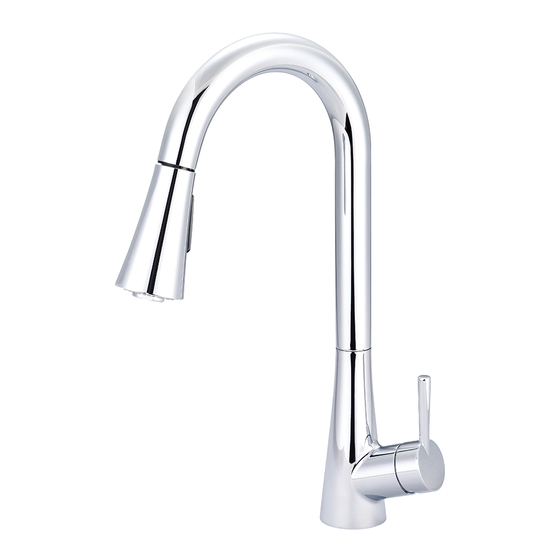

Single Handle Kitchen Pull-Down Faucet
(1) Shut off water supply. Remove old faucet.
Clean mounting surface in preparation for new
faucet.
(2) For 1-Hole Installation : Install 1-Hole
mounting assembly on the faucet. Ensure there
is a washer under the faucet. Place the faucet
in position on the sink.
(3) For 3-Hole Installation : Install supplied
deck plate underneath of the faucet. Apply
plumbers putty under the base gasket. Place
the faucet in position on the sink.
(4) From under the sink thread locknut to the
faucet. Tighten the locknut with the help of
supplied mounting tool.
(5) Install the weight on the pull-down spray
hose. Adjust the weight so that the pull-down
spray head is retractable. Connect pull-down
spray head hose to the outlet hose.
Tools:
Adjustable Wrench Plumbers Putty
INSTALLATION
Sealant Tape
(6) Connect hot and cold inlet supply
hoses to supply stops. For 1/2" connection
use 3/8" male to 1/2" female adapter for
installation. Adapters are optional and not
provided with the faucet.
Rags
