488 SERIES – SuperSqueeze

DESCRIPTION:

Model 488W – Wood Pole Fall Restriction Device (WPFRD) with Woven Inner Strap for Distribution Poles.

▪

Model 488W2 – Wood Pole Fall Restriction Device (WPFRD) with Woven Inner Strap and dual WebGrabs for Distribution

▪

Poles.

Model 488TW – Wood Pole Fall Restriction Device (WPFRD) with Woven Inner Strap for Transmission Poles.

▪

Model 488TW2 – Wood Pole Fall Restriction Device (WPFRD) with Woven Inner Strap and dual WebGrabs for Transmission

▪

Poles.

Model 488R – Wood Pole Fall Restriction Device (WPFRD) with Rope Inner Strap for Distribution Poles.

▪

Model 488RT – Wood Pole Fall Restriction Device (WPFRD) with Rope Inner Strap for Transmission Poles.

▪

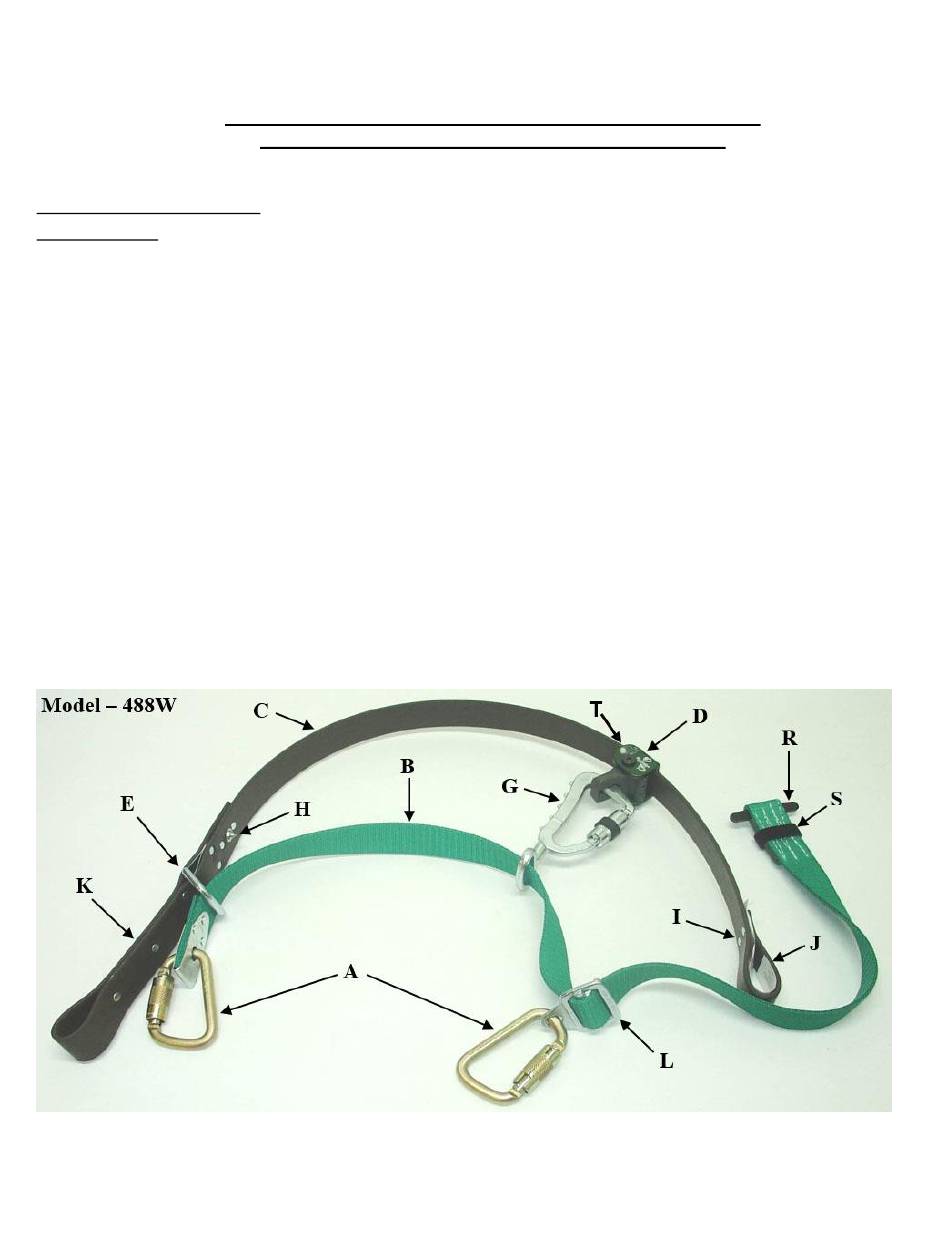

A – Locking Carabiners

B – Inner Strap

(Woven Web)

C – Outer Strap

(Brown Neoprene Impregnated Nylon)

D – WebGrab / LAD (Rectangular Eye)

E – D-ring

F – WebGrab / LAD (Oval Eye)

G – Serrated Rotosnap

Note: Hardware may vary from hardware shown.

488, 490.DOC PN 230268

(Rev 10/8/19)

BUCKINGHAM MFG.

INSTRUCTIONS / WARNINGS

488 SERIES – SuperSqueeze / 490 SERIES – EZSqueeze

BuckSqueeze, SuperSqueeze and EZSqueeze Instructions

H –Cleat (Permanently Attached)

I – Riveted End

J – Outer Strap Fold Over

K – Outer Strap Handle

L – Friction Buckle

M – Wear Guard

N – Inner Strap (Rope)

O – BuckGrab /LAD (Rope)

P – Rope Tail

R – Plastic Fiber

S – Hook & Loop Retention Strap

T – Threaded hole to be used for

retro-fit of WebGrab BuckHorn
