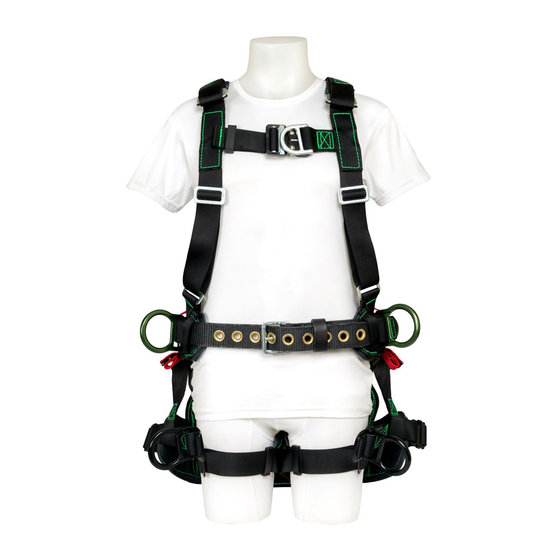

The Buckingham Mfg. PN 68K966 Series BuckTech™ (Fig. 1) are Full Body Tower Harnesses.
PN 68K966 Series meets or exceeds requirements of ANSI Z359.11
PN 68K966K6 Series meets or exceeds requirements of ANSI Z359.11 & the electric arc performance requirements of the
ASTM F887 standard.
Shoulder Strap
Adjustment Buckles
Front Strap
Vertical
Adjustment
Buckles
*Hip D-rings
(Positioning, to be used
as a pair)
*Seat D-rings
(Positioning, to be used
as a pair)
Leg Strap
Connection Buckle
Note: Color and hardware may vary from that shown
Read and understand all labels and instructions attached to and packed with your harness.
Straightening Your Harness:
Pick up your harness by the Dorsal D-ring and shake it to allow the straps to fall free of each other.
Disconnect the waist strap of the harness and then disconnect the leg strap buckles. Hold the harness with one shoulder strap
in each hand to check for twisted straps. Straighten any twisted straps so that they hang freely.
Harness Inspection:
Inspection should occur prior to each use by the user and at a minimum of once a year by a competent person. Carefully inspect
the harness for indications of wear, deterioration, or impact loading. The inspection should include, but not be limited to,
inspecting for:
•
webbing cuts, kinks, abrasions, burns, excessive swelling, excessive wear, discoloration, cracks, charring, broken fibers,
loose stitching, chemical or physical exposures and buckle holes in strap are not damaged
•
loose, bent or pulled rivets, bent grommets, and broken, cut or burned threads
•
tongue of buckle does not bind on buckle frame
•
nicks, cracks, distortion, excessive wear or corrosion of hardware (buckle, "D"-ring, etc.)
Note: Buckingham harnesses are equipped with an impact load indicator label that is designed to deploy upon arresting a fall.
An impact load will tear the thread exposing this label making the text visible. If you can see the text, the harness has been
impact loaded. If any evidence of wear, deterioration, or impact loading as outlined is observed, immediately cease use, destroy
the product, and replace it with new equipment.
Buck Tech Inst - Warn Doc (02/07/18)
P/N 230420
BUCKINGHAM MFG.
Instructions and Warnings
PN 68K966 Series BuckTech™
Front
View
Sternal D-ring
(Alternative Fall Arrest
Attachment)
(Positioning, to be used
(Positioning, to be
Removable
Leg Strap
Suspension Bridge
Connection Buckle
with Floating D-ring
Fig. 1
Impact Load
Indicator Labels
*Hip D-rings
as a pair)
*Seat D-rings
used as a pair)
Rear View
(Primary Fall Arrest
Rear Strap Vertical
Adjustment Buckles
Removable Batten
Batten Seat
Adjustment Buckles
Dorsal D-ring
Attachment)
Lanyard Parking
Attachments
(non load bearing)
Gear Loops
(x2)
Seat
Page 1 of 13
