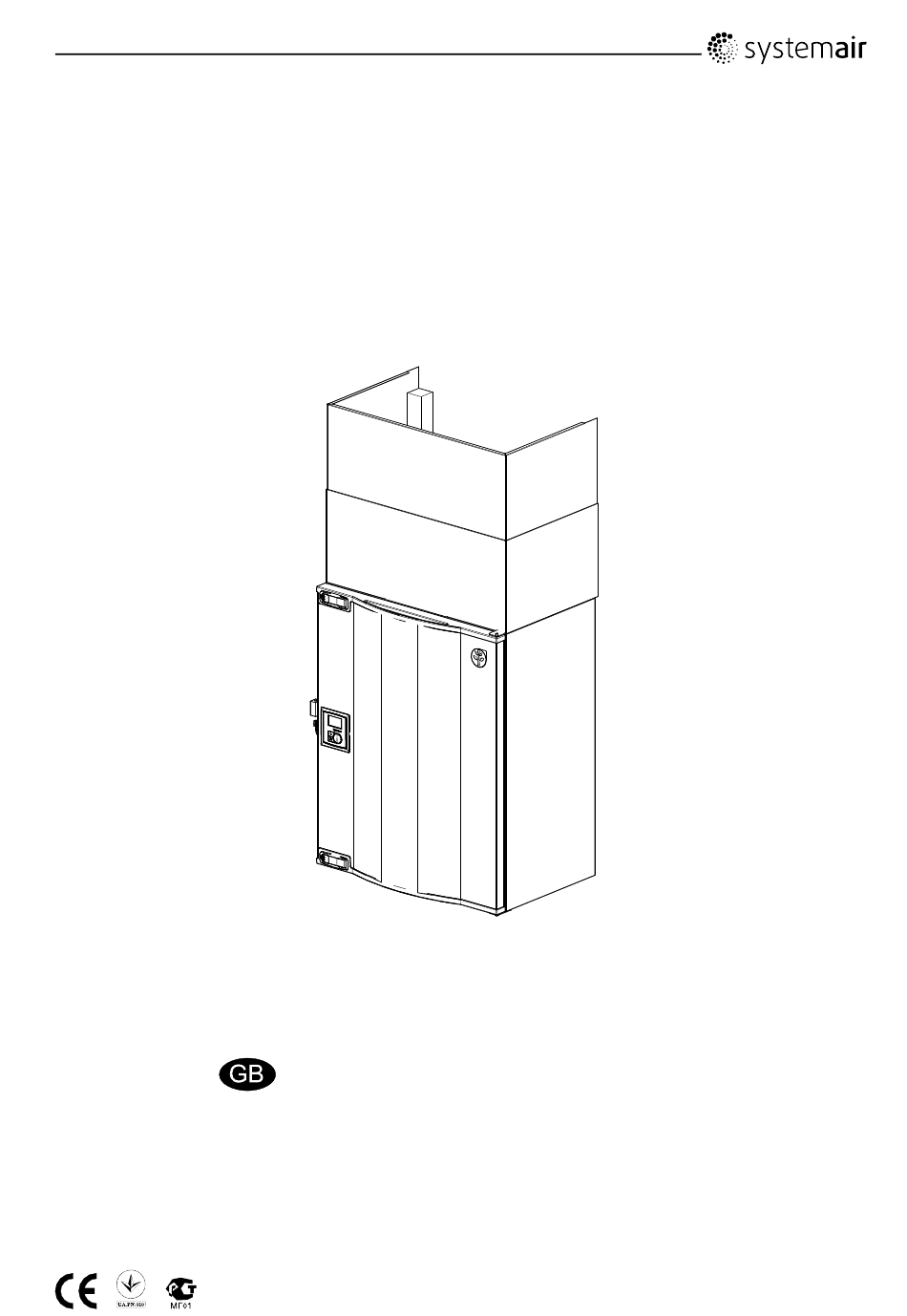

- Page 1 Duct cover VTR 150/200 Installation instructions 208121-EN_GB Document in original language 08-04-2013 A001...
- Page 3 1 Duct cover parts 1. Wood stud 2. Cellular rubber strip 3. Duct cover 4. Duct cover, edge 90° bends Duct cover VTR 150/200 Installation instructions Systemair AB 208121...
- Page 4 Place the duct cover with the 90° (pos 4) bends inside the mounted duct cover and adjust to desired height between 250-400 mm. On VTR 150 the duct cover closest to the main unit has cable glands on each side. Duct cover VTR 150/200...
- Page 5 Fasten the upper duct cover with screws in each side. Duct cover VTR 150/200 Installation instructions Systemair AB 208121...
- Page 6 Systemair AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com 208121...
