Clas Ohlson IW001 Instruction Manual

Wireless Magnetic Contact
Art.no: 36-3552
Please read the entire instruction manual before using
and save it for future use. We apologise for any text or
photo errors and any changes of technical data. If you
have any questions concerning technical problems
please contact our Customer Services.
1. Description
Wireless magnetic contacts are suitable for monitoring
windows and doors. The alarm sounds when either the
door or window is opened. The alarm is activated and
deactivated by remote control.
Contents: Remote control, sensor, 3 batteries
and magnet.
2. Settings
Channel setting
In order for the transmission to work between the
sensor and remote, both the sensor code (chan-
nel) and the remote's code must be the same.
There are three different channel settings (A, B,
C) which are found both under the remote's cover
and under the sensor's back cover. Settings are
made by setting the control for the three channels:
(A, B or C). The settings must be the same both
for the remote and the sensor.
N.B.
Change the channel settings if you have interfe-
rence (false alarms) from other wireless systems
in the vicinity. Remember to change channels on
both the sensor and remote.
3. Batteries
Remove the remote control's cover and insert the
3 included LR44, 1.5 V batteries with the "+" pole
against the spring (see figure).
Remove the sensor's cover and insert 3 x
LR03, 1.5 V batteries according to the battery
compartment's markings. Change the batteries
when the red LED is on.
4. Mounting
The magnet should be mounted on the edge of the
door or window opening. Mount the sensor and mag-
net as high as possible. The sensor and magnet are
marked with a height mark (a line in the centre) and a
dot which should be parallel when mounted.
The sensor and magnet should be mounted close to
each other. The maximum distance should be 8 mm
when either the door or window is closed. (The alarm
will sound if the distance is more than 8 mm).
GREAT BRITAIN For consumer contact, please visit www.clasohlson.
co.uk and click on customer service.
ENGLISH
Model: IW001
Activates
the alarm
If the mounting surface is hard and even you can use
double sided tape on the back side of the sensor and
magnet for mounting. You can hang up the sensor
using the mounting hole on the back.
5. Operation
Press ON on the remote to activate the alarm. The
remote has approx. a 4 metre range. Press OFF on
the remote to deactivate the alarm.
The remote transmits a radio signal so you do not
need to point the remote at the sensor. You can ac-
tivate and deactivate the alarm while standing outside
the door.
When the magnet is moved out of the sensor's range,
i.e. if the door/window is opened a loud alarm is heard
(>100 dB) which can be deactivated by the remote.
Caution: The alarm is loud. Do not have the sensor
near your ear as it can cause hearing damage.
Turns off
the alarm

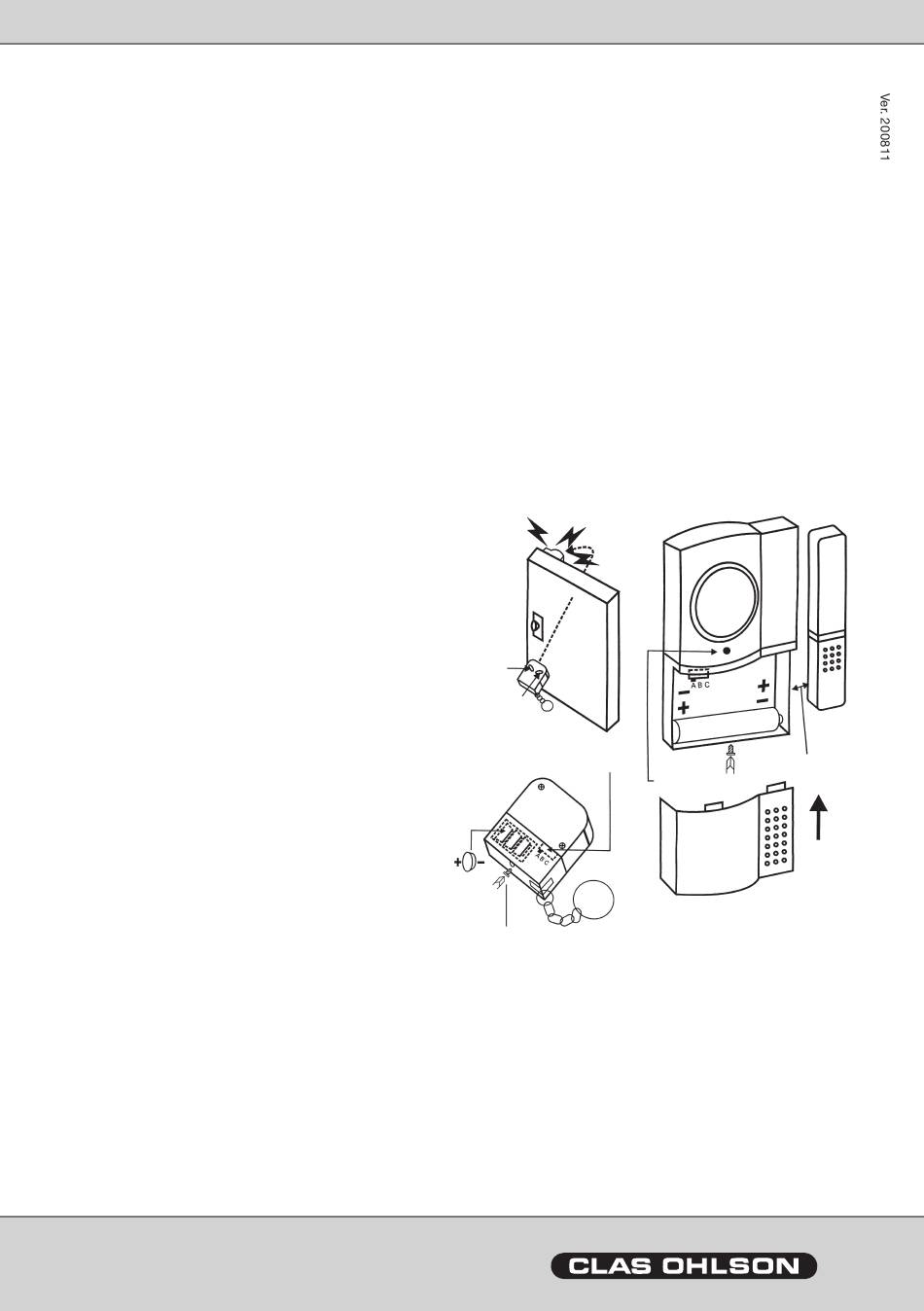

Channel setting
Remove screw and
battery cover
Max. 8 mm
Low battery
warning
