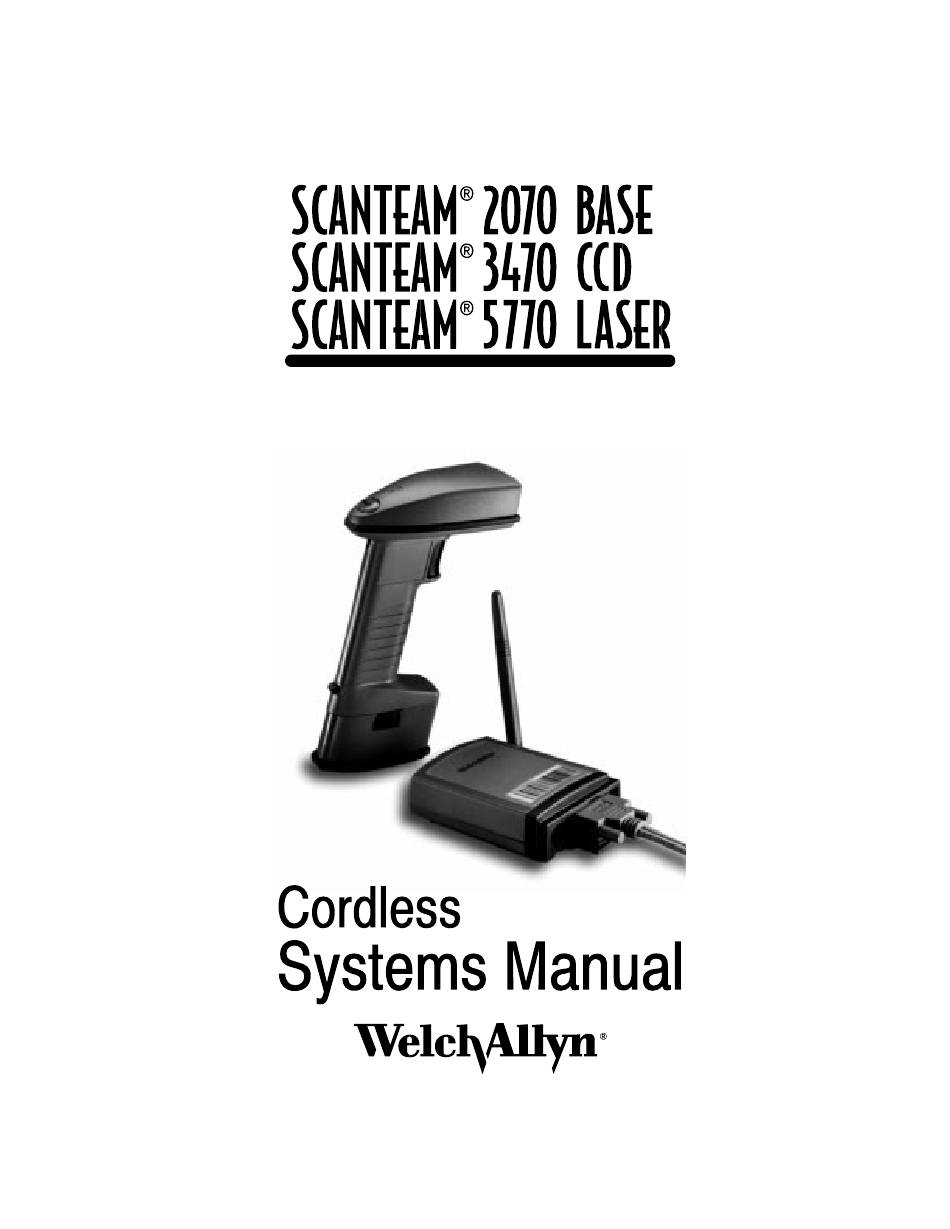

Welch Allyn SCANTEAM 2070 BASE Manual

Welch Allyn SCANTEAM 2070 BASE Manual

Cordless systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCANTEAM 2070 BASE and is the answer not in the manual?

Questions and answers

Related Manuals for Welch Allyn SCANTEAM 2070 BASE

Summary of Contents for Welch Allyn SCANTEAM 2070 BASE

  • Page 2 Warrington, Cheshire WA2 7LT Ireland England Welch Allyn shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. C.S.A. Statement...
  • Page 3 Consult the dealer or an experienced radio or television technician for help. Caution: Any changes or modifications made to this device that are not expressly approved by Welch Allyn, Inc. may void the user’s authority to operate the equipment. Note: To maintain compliance with FCC Rules and Regulations, cables connected to this device must be shielded cables, in which the cable shield wire(s) have been grounded (tied) to the connector shell.
  • Page 4 Enlarged Views of Regulatory Labels Laser Scanner Cordless Scanner Only: Left Side View with Battery Pack Cordless Scanner Right Side View (without battery pack) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTER- FERENCE, AND (2) THIS DEVICE...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section 1 Introduction & Installation Section Page Introduction ........1–1 Getting Started Cordless System: Main Components...

  • Page 6: Section Page

    Section 3 Communications Menu Section Page Introduction ........3–1 Host Port Communications Baud Rate Selection...
  • Page 7 ......4–4 Welch Allyn Code I.D. Transmit Selection ....
  • Page 8 Section 6 Supported Interface Keys Section Page Keyboard Function Relationships ..... 6–1 Supported Interface Keys ......6–2 Section 7 Product Specifications and Pinouts...

  • Page 9: Introduction

    Introduction & Installation Introduction The Cordless Scanning System consists of the SCANTEAM 2070 Base unit and at least one SCANTEAM 3470 Cordless CCD or SCANTEAM 5770 Cordless Laser Scanner. Up to nine scanners may be associated with one base. Each cordless scanner has a removable, rechargeable battery pack and provides real time decoding within a 50 foot (15.24 meter)[ radius of the Base unit.

  • Page 10: Cordless System: Main Components

    Cordless System: Main Components Indicator LEDs Cordless Scanner Left Side View (with battery pack) Scan Window Trigger Battery Pack Clip (2 Places) Battery Pack Antenna Cordless Base Back View Keyboard/Terminal External Power and RS-232 Connector Connector (Host Port) Aux RS-232, Service Port, and Wand Emulation Output Connector Cordless Systems Manual...

  • Page 11: About The Battery Pack

    About the Battery Pack Power is supplied to the Cordless Scanner by a rechargeable battery pack that snaps onto the bottom of the scanner. Each scanner is shipped with a battery pack [. Battery packs are offered in a choice of Nickel Cadmium (NiCad) cells, as an entry level solution, or a premium battery pack based on Nickel Metal Hydride (NiMH) cells.

  • Page 12: Charging Your Battery Pack

    Charging Your Battery Pack Charge the Battery Pack by following the steps shown below: Plug the battery pack directly into any common 120 Volt AC outlet.[ To charge more than one battery pack Cordless Scanner (or to charge the pack for all other countries), use the Charge Strip.

  • Page 13: Setting Up And Connecting The Cordless System

    Setting Up and Connecting the Cordless System Install the Base and Cordless Scanner by following the steps shown below: Important: Make sure the Cordless Scanner’s battery pack has been fully charged. See page 1–4 for charging instructions. Turn off the power to the host system. Connect the interface cable to the Base and to the terminal/computer (steps 1–3, shown in the illustration below).
  • Page 14 Setting Up and Connecting the Cordless System, continued RS-232 Interface Example Terminal (host system) Cordless Base Power Supply (Cable, Keyboard, and Terminal may vary.) Turn on the power to the host system. Verify that the Base is on; the green LED on top of the unit should blink.

  • Page 15: Connecting More Scanners To The System

    Setting Up and Connecting the Cordless System, continued Note: After association, if the battery pack is removed from the scanner and replaced, the scanner will automatically re-associate to the base if the base has remained powered up. In this case, the scanner will beep on power up and beep a second time after full association, about five to ten seconds later.

  • Page 16: Beeper And Led Sequences And Meaning

    Beeper and LED Sequences and Meaning The Base contains a green LED that indicates the status of the unit and verification of its communication with the host system. The Cordless Scanner contains a beeper and two LEDs on the top of the unit (green and yellow) to indicate its power up, communication, and battery pack status.

  • Page 17: Basic Operation Of The Cordless System

    Basic Operation of the Cordless System The following system block diagrams (on this and the following page) illustrate the basic operating components of the Cordless System. Cordless Base The Cordless Base provides the link between the Cordless Scanner and the host system.
  • Page 18 Cordless Scanner The Cordless Scanner enables bar code scanning with non-contact CCD or Laser input devices, real time decoding, and host connectivity within a 50 foot (15.24 meter)[ radius of the Base unit. It provides the initial bar code data acquisition function and communicates to the Base.
  • Page 19 Communication Between the Cordless System and the Host The Cordless Scanner provides you with immediate feedback in the form of a “good read” indication (a green LED on the scanner and an audible beep) after you’ve scanned a bar code correctly and the base has acknowledged receiving the data.

  • Page 20: Accessories For The Cordless System

    The charge strip uses a standard PC (IEC 320) grounded power cord between the charge strip and the electrical AC outlet. Note: International versions of the power cords are provided by Welch Allyn’s country partners. Welch Allyn does not supply these power cords.

  • Page 21: Quick Start & Interface Menu

    Section 2 Quick Start & Interface Menu Introduction Use this section to program the Cordless System to work with your terminal or computer (host system). This programming section contains the following menu selections: Plug and Play Terminal Interface Country Code Keyboard Output Delays Wand Emulation...

  • Page 22: Industrial Interface: Ibm Pc

    Industrial Interface: IBM PC IBM PC AT and Compatibles Interface (also PS/2 30-286, 50, 55SX, 60, 70, 70-061, 70-121, 80) (Factory Default) The bar code above also programs a carriage return (CR) suffix. Industrial Interface, Aux Port: RS-232 RS-232 Interface The bar code above also programs the following parameters: Programmable Option Setting...

  • Page 23: Industrial Interface, Aux Port: Wand Emulation

    Industrial Interface, Aux Port: Wand Emulation Black High Wand Emulation (Code 39 Format) Interface Wand Emulation (Same Code Format) Interface [ These bar codes also program the following parameters: Programmable Option Setting Transmission Rate 25 inches per second Output Polarity Black High Industrial Interface, Aux Port: Wand Emulation White High...

  • Page 24: Supported Terminals

    If your terminal is not one of the Plug and Play options, you must program one of the terminals listed below. To program the terminal interface, scan the Program Terminal Interface bar code below, then scan the appropriate two digit Terminal I.D.
  • Page 25 Supported Terminals (Factory Default = ID 03) Terminal Model(s) Terminal I.D. Lee Data Midwest Micro Elite TS 30 PS (Portable PC) Mitak 4022 (Portable PC) Olivetti M19, M24, M28, M200 Olivetti M240, M250, M290, M380, P500 Relisys TR 175 RS232 Host Port RS232 Aux Port Serial Wedge Silicon Graphics...

  • Page 26: Keyboard Country Selection

    Keyboard Country Selection This programming selection allows you to re-map the keyboard layout for the selected country. As a general rule, the following characters are not supported by the Cordless System for countries other than the United States: @ | $ # { } [ ] = / ‘ \ < > ~ United States Belgium Denmark, Finland, Norway, Sweden...

  • Page 27: Keyboard Layout Selection

    Keyboard Layout Selection This selection allows you to program the Cordless System to transmit the proper keycodes when interfacing with a “Normal” (PC AT type), telephone, calculator, Alpha, or Numeric keyboard layout. Choose the keyboard layout that defines your keyboard. Layout 2 (Calculator) Layout 1 (Telephone) Layout 4 (Alpha)

  • Page 28: Keyboard Style Selections

    Keyboard Style Selections Keyboard Style Selections This programming selection allows you to program special keyboard features, such as Caps Lock and Shift Lock. Regular is used when you normally have the Caps Lock key off. Caps Lock is used when you normally have the Caps Lock key on. Shift Lock is used when you normally have the Shift Lock key on.

  • Page 29: Keyboard Style Modifiers

    Keyboard Style Modifiers Keyboard Style Modifiers This programming selection allows you to program special keyboard features, such as CTRL+ codes and Turbo Mode. Control + ASCII Mode On – If you scan this selection, the Cordless System sends key combinations for ASCII control characters for values 00–1F. Refer to page NO TAG for CTRL+ Values.

  • Page 30: Output Delays Selection

    Output Delays Selection This selection provides control of the time delays between data output by the Cordless System to the host terminal. The actual delay is 5 milliseconds multiplied by the programmed value (00 – 99). Default = 00. Intercharacter Delay is the time delay between data characters output by the Cordless System to the host terminal.

  • Page 31: Transmission Rate Selection

    Transmission Rate Selection This programming selection sets the transmission rate from 10 ips (inches per second) to 300 ips if the Cordless System is in Wand Emulation mode. Programming the transmission rate causes the data to be sent at the specified rate.

  • Page 32: Reset Factory Settings

    Reset Factory Settings Scanning the Factory Default Settings bar code resets the Cordless System to the original factory settings, clearing any programming changes you may have made. You may reset the factory default settings for the current application group or for all application groups. Both selections will set the terminal ID to 03. Scan the correct programming below.

  • Page 33: Communications Menu

    Section 3 Communications Menu Introduction Use this section to program the communications parameters for the Cordless System. This programming section contains the following menu selections: Host Port Communications (RS-232) Auxiliary Port Communications (RS-232) Cordless Systems Manual 3–1...

  • Page 34: Baud Rate Selection

    Default All Host Port Communications Baud Rate Selection This selection sets the baud rate from 300 bits per second to 38,400 bits per second. Programming baud rate causes the data to be sent at the specified rate. The host terminal must be set up for the same baud rate as the Cordless System to ensure reliable communication.

  • Page 35: Parity Selection

    Parity Selection This selection provides a means of checking character bit patterns for validity. The Cordless System can be configured to operate under Even, Odd, Mark, None, or Space parity options. The host terminal must be set up for the same parity as the Cordless System to ensure reliable communication.

  • Page 36: Word Length Stop Bits Selection

    Word Length Stop Bits Selection This selection sets the Word Length at one or two stop bits . 1 Stop Bit 2 Stop Bits Serial Wedge Output Selection This selection selects the serial output direction required by your application. P1 and P2 are serial wedge designations printed on the serial wedge cable.

  • Page 37: Hardware Flow Control Selection

    Hardware Flow Control Selection This selection enables hardware flow control that checks for a CTS signal before sending data. This option is useful when your application supports the CTS signal. Note: This selection cannot be used with Serial Wedge Output Selection.

  • Page 38: Host Ack Selection

    Host ACK Selection This selection programs the Cordless System to wait for a confirmation signal (ACK) from the host after bar code data has been sent. The host system may also be used to generate Escape Commands for user feedback (see section below).

  • Page 39: Baud Rate Selection

    Default All Auxiliary Port Communications Baud Rate Selection This selection sets the baud rate from 300 bits per second to 38,400 bits per second. Programming baud rate causes the data to be sent at the specified rate. The device connected to the Auxiliary Port must be set up for the same baud rate as the Aux Port to ensure reliable communication.

  • Page 40: Parity Selection

    Parity Selection This selection provides a means of checking character bit patterns for validity. The Auxiliary Port can be configured to operate under Even, Odd, Mark, None, or Space parity options. The device connected to the Auxiliary Port must be set up for the same parity as the Aux Port to ensure reliable communication.

  • Page 41: Word Length Stop Bits Selection

    Word Length Stop Bits Selection This selection sets the Word Length at one or two stop bits . 1 Stop Bit 2 Stop Bits Protocol Selection This selection programs the Auxiliary Port for the protocol required by the input device to the Auxiliary Port. The protocol is a set of rules concerning the exchange of data between serially communicating devices.

  • Page 42: Hardware Flow Control Selection

    Hardware Flow Control Selection This selection enables hardware flow control that checks for a CTS signal before sending data. This option is useful when your application supports the CTS signal. Enable Disable Note: The Auxiliary Port receive function will only work properly if RTS/CTS or ACK/NAK flow control is used.
  • Page 43 Aux Prefix and Suffix Aux Prefix and Suffix characters are data characters you may assign to incoming Auxiliary Port data. Prefix Message Suffix Data frame –> Characters for the Prefix and Suffix are selected by their hexadecimal ASCII value, up to 12 characters each. Prefix and Suffix characters may be assigned to all incoming data.

  • Page 44: Aux Prefix Selection

    Aux Prefix Selection Add Aux Prefix ] Clear All Prefixes (default) Aux Suffix Selection Add Aux Suffix ] Clear All Suffixes (default) Exit Selection for Aux Prefix / Suffix Save Current Changes Discard Current Changes ] One or more two-digit numbers and Save are required after scanning this programming bar code.
  • Page 45 Aux Prefix and Suffix Examples Example 1: Add a Prefix To add an HT (tab) Prefix to incoming data: Scan the Add Aux Prefix Prefix Selection bar code. Scan 7 and 2 on the Programming Chart (inside back cover). An “HT” is equivalent to “09” (see the Hex ASCII Chart). Scan 0 and 9 on the Programming Chart.
  • Page 46 Aux Data Format Editor This selection provides editing of all incoming data to the Auxiliary Port. Scanning the Default Data Format bar code will program the Cordless System to the default Data Format, which is none. Be certain you want to delete or clear all formats before you scan the Default Data Format bar code.

  • Page 47: Aux Data Formatter

    Aux Data Formatter When Data Formatter is disabled, the incoming data will be output to the host as received (including prefixes and suffixes). Enable Disable Aux Require Data Format? When Data Formatter is required, all input data must conform to an edited format or the Cordless System will not transmit the input data to the host device.
  • Page 48 Aux Format Editor Commands Chart Send Commands F1 Send all characters followed by “XX” key or function code, starting from current cursor position. Syntax = F1XX (XX = HEX ASCII character or function code 00–7F HEX). F2 Send “NN” characters followed by “XX” key or function code, starting from current cursor position.
  • Page 49 Aux Data Formatter Example You are sending five digit data into the Auxiliary Port; however, your host system can only accept data which has eight digits. You must add three zeroes to the beginning of the Aux Port data. Received Must send 12345 00012345...
  • Page 50 Notes: The space below may be used for notes..3–18 Cordless Systems Manual...

  • Page 51: Application Work Groups Menu

    Section 4 Application Work Groups Menu Introduction Use this section to program parameters for application work groups for the Cordless System. This programming section contains the following menu selections: Output Selections (User Feedback) Prefix and Suffix Data Formatter When you set up and connect the Cordless System to your host system, you associate the Cordless Scanner to its Base unit.

  • Page 52: Application Work Group Selection

    Application Work Group Selection This programming selection sets up application work groups sharing specific programming settings (such as Beeper Volume, Scanner Voting, Prefix / Suffix, and Data Formatter). Scan the group number and then program the selections your application requires. (Refer to the introduction, page 4–1, for more information on application work groups.) Group 0...

  • Page 53: Remove Scanner Selection

    Remove Scanner Selection This programming selection removes a scanner from an associated Base unit. Remove Scanner Beeper Volume Selection High Medium Scanner Voting Selection When Scanner Voting is enabled, the Cordless System requires three (3) identical, consecutive scans before the bar code data will be accepted and transmitted to the terminal.

  • Page 54: Laser Marker Beam

    634 Alpha Drive, Pittsburg, PA 15238–2802. Welch Allyn Code I.D. Transmit Selection This selection enables or disables transmission of a Welch Allyn Code I.D. before the decoded bar code symbology. (See the Symbology Chart on page 4–8 for the single character code that identifies each symbology.)
  • Page 55 Prefix and Suffix The Cordless System transmits a decoded message after every successful bar code read. Prefix and Suffix characters are data characters you may assign to be sent before and after the transmitted bar code data. Prefix Bar Code Message Suffix Transmitted data frame –>...

  • Page 56: Prefix Selection

    Prefix Selection Add Prefix ] Default Prefix (none) Clear One Prefix ] Clear All Prefixes Suffix Selection Add Suffix ] Default Suffix (CR) Clear One Suffix ] Clear All Suffixes Exit Selection for Prefix / Suffix Save Current Changes Discard Current Changes ] One or more two-digit numbers and Save are required after scanning this programming bar code.
  • Page 57 Prefix and Suffix Examples Example 1: Add Suffix for Specific Symbology To send a CR (carriage return) Suffix for UPC only. Scan the Add Suffix Suffix Selection bar code. The Symbology Chart indicates that the Hex value of UPC is “63”. Scan 6 and 3 on the Programming Chart (inside back cover).

  • Page 58: Symbology Chart

    Symbology Chart Code Code Symbology Symbology Value Value Codabar Code 11 Code 39 Code 93 Code 128 Matrix 2 of 5 All Symbologies Interleaved 2 of 5 (Prefix/Suffix Programming only.) Code 2 of 5 Hex to ASCII Conversion Chart ASCII ASCII ASCII Hex ASCII Hex ASCII Hex ASCII Hex ASCII Hex ASCII...

  • Page 59: Data Formatter Selections

    Data Format Editor This selection provides editing of all input (scanned) data. All Industrial and Retail symbologies can be formatted. Scanning the Default Data Format bar code will program the Cordless System to the default Data Format, which is none. Be certain you want to delete or clear all formats before you scan the Default Data Format bar code.

  • Page 60: Data Formatter

    Data Formatter When Data Formatter is disabled, the bar code data will be output to the host as read (including prefixes and suffixes). Enable Disable Require Data Format? When Data Formatter is required, all input data must conform to an edited format or the Cordless System will not transmit the input data to the host device.
  • Page 61 Format Editor Commands Chart Send Commands F1 Send all characters followed by “XX” key or function code, starting from current cursor position. Syntax = F1XX (XX = HEX ASCII character or function code 00–7F HEX). F2 Send “NN” characters followed by “XX” key or function code, starting from current cursor position.
  • Page 62 Data Formatter Example You are using an IBM PC AT and are scanning a UPC A bar code with a five digit addenda (shown below). The bar code has a total of 18 characters, including the number system, the check digits, and a space between the main bar code data and the addenda bar code data.

  • Page 63: Symbology Menu

    Section 5 Symbology Menu Introduction Use this section to program the Cordless System for Industrial and Retail Symbology selections. This programming section contains the following menu selections: Codabar Matrix 2 of 5 Code 39 Code 11 Code 93 Code128 Interleaved 2 of 5 Code 2 of 5 Programming Tip: If a symbology will not be used, we recommend turning it off to maximize the Cordless System’s decoding speed.

  • Page 64: Codabar Selection

    Default All Codabar Settings Codabar Selection Codabar Start / Stop Transmit Don’t Transmit Characters Message Minimum ] Maximum ] Length ] A two-digit number and Save are required after scanning this programming bar code. Refer to the Programming Chart (inside back cover). 5–2 Cordless Systems Manual...
  • Page 65 Codabar Selection, continued Check Character Validate Don’t Validate Check Character Transmit Don’t Transmit Concatenation Codabar supports symbol concatenation. When you Enable concatenation, the reader will look for a Codabar symbol having a “D” start character, adjacent to a symbol having a “D” stop character. In this case the two messages are concatenated into one with the “D”...

  • Page 66: Code 39 Selection

    Default All Code 39 Settings Code 39 Selection Code 39 Start / Stop Transmit Don’t Transmit Characters Message Minimum ] Maximum ] Length Check Validate Don’t Validate Character Check Transmit Don’t Transmit Character ] A two-digit number and Save are required after scanning this programming bar code.
  • Page 67 Code 39 Selection, continued Full ASCII Disable Enable Append Enable Disable FULL ASCII CHART [ ‘ SPACE ” & ’ < – – > [ This chart is used for encoding the above characters in Full ASCII when using Code 39 bar codes.

  • Page 68: Code 93 Selection

    Default All Code 93 Settings Code 93 Selection Code 93 Message Minimum ] Maximum ] Length ] A two-digit number and Save are required after scanning this programming bar code. Refer to the Programming Chart (inside back cover). 5–6 Cordless Systems Manual...

  • Page 69: Interleaved 2 Of 5 Selection

    Default All Interleaved 2 of 5 Settings Interleaved 2 of 5 Selection Interleaved 2 of 5 Message Minimum ] Maximum ] Length Check Digit Validate Don’t Validate Check Digit Transmit Don’t Transmit Lengths of Enable Disable 6, 14 or 16 ] A two-digit number and Save are required after scanning this programming bar code.

  • Page 70: Code 2 Of 5 Selection

    Default All Code 2 of 5 /Matrix Settings Code 2 of 5 Selection Code 2 of 5 Message Minimum ] Maximum ] Length Matrix 2 of 5 Selection Matrix 2 of 5 Message Minimum ] Maximum ] Length ] A two-digit number and Save are required after scanning this programming bar code.

  • Page 71: Code 11 Selection

    Default All Code 11 / Code 128 Settings Code 11 Selection Code 11 Check Digits 2 Check Digits 1 Check Digit Required Message Minimum ] Maximum ] Length Code 128 Selection Code 128 Message Minimum ] Maximum ] Length ] A two-digit number and Save are required after scanning this programming bar code.

  • Page 72: Ean / Jan 8 / 13 Selection

    Default All EAN / JAN 8 Settings Default All EAN / JAN 13 Settings EAN / JAN 8 / 13 Selection EAN / JAN 8 EAN / JAN 13 Check Don’t Transmit Transmit Digit 5–10 Cordless Systems Manual...

  • Page 73: Upc A Selection

    Default All UPC A Settings UPC A Selection UPC A Check Transmit Don’t Transmit Digit Number Transmit Don’t Transmit System Cordless Systems Manual 5–11...

  • Page 74: Upc E0 Selection

    Default All UPC E0 Settings UPC E0 Selection UPC E0 Check Don’t Transmit Transmit Digit Number Don’t Transmit Transmit System Version E Expand Don’t Expand Expand UPC E1 Selection UPC E1 5–12 Cordless Systems Manual...

  • Page 75: Ean Addenda Selection

    EAN / UPC Addenda Selection EAN/UPC Require Don’t Require Addenda EAN Addenda Selection Two Digit Enable Disable Addenda Five Digit Enable Disable Addenda UPC Addenda Selection Two Digit Enable Disable Addenda Five Digit Enable Disable Addenda Cordless Systems Manual 5–13...
  • Page 76 Notes: The space below may be used for notes..5–14 Cordless Systems Manual...

  • Page 77: Keyboard Function Relationships

    Section 6 Supported Interface Keys Keyboard Function Relationships The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII “CTRL”+ relationships apply to all terminals that can be used with the Cordless System. Function Code HEX/ASCII Value Full ASCII “CTRL” + The last five characters in the Full ASCII “CTRL”+ column ( [ \ ] 6 - ), apply to US only.
  • Page 78 Supported Interface Keys IBM AT/XT and PS/2 Compatibles, IBM XTs and Supported Interface Keys WYSE PC/AT Compatibles IBM, Telex* Reserved Reserved Reserved Enter (KP) CR/Enter Enter Cap Lock Caps Lock ALT make Reserved ALT break Reserved CTRL make Reserved CTRL break Reserved CR/Enter CR/Enter...
  • Page 79 Supported Interface Keys Supported IBM, Telex (102)* Telex (88)** DEC VT Interface Keys Reserved Reserved Reserved Enter Enter Enter PF10 PF11 PF12 Reserved PF11 Reserved PF12 New Line New Line New Line Field Forward Field Forward Reserved Tab/Field Forward Field Forward Delete Delete Remove...
  • Page 80 Supported Interface Keys Esprit 200, 400 Esprit 200, 400 Esprit 200, 400 Supported Interface Keys ANSI ASCII Reserved Reserved Reserved New Line New Line New Line New Line New Line New Line Delete New Line New Line New Line Insert Escape Escape Escape...
  • Page 81 Supported Interface Keys Bull BDS–7 (Honeywell Supported Interface Keys HDS–7) Reserved Transmit Reserved Reserved Reserved Backtab Reserved Carriage Return Back Space Delete Character Carriage Return Insert Clear Error Reset Home Delete Line Erase EOP Erase EOF Insert Line Cordless Systems Manual 6–5...
  • Page 82 Notes: The space below may be used for notes..6–6 Cordless Systems Manual...

  • Page 83: Scanteam 2070 Cordless Base Specifications

    Section 7 Product Specifications SCANTEAM 2070 Cordless Base Product Specifications Parameter Specification Dimensions Height 1.4 inches (3.6 cm) Width 4.0 inches (10.2 cm) Length 4.5 inches (11.5 cm) Weight 7.25 ounces (206 g) without cable LED Indicators One (1) Beeper None Operating Voltage +4.0 to 14.0 VDC...

  • Page 84: Scanteam 3470 Cordless Ccd Scanner Specifications

    SCANTEAM 3470 Cordless CCD Scanner Product Specifications Parameter Specification Dimensions Height 8.3 inches (21 cm) (with battery) Width 3.1 inches (7.8 cm) Length 4.7 inches (11.9 cm) Weight 18 ounces (510 g) with battery pack Light Source 630 to 660 nm Visible Red Light Emitting Diodes (LED) Print Contrast Minimum Reflective Difference = 37.5% Scan Rate...

  • Page 85: Scanteam 5770 Cordless Laser Scanner Specifications

    SCANTEAM 5770 Cordless Laser Scanner Product Specifications Parameter Specification Dimensions Height 8.3 inches (21 cm) (with battery) Width 3.1 inches (7.8 cm) Length 4.7 inches (11.9 cm) Weight 18 ounces (510 g) with battery pack Light Source 630 to 670 nm Visible Laser Diode (VLD) Scan Rate 34 scans per second (laser scan engine) Print Contrast...

  • Page 86: Battery Specifications

    Battery Specifications The battery packs are designed with an integrated charging circuitry to allow them to be plugged directly into any common 120 Volt outlet [. Battery packs have an LED indicator to signal charging and fully-charged conditions. In order to break in the new battery, we suggest that you fully charge and discharge the packs approximately two to four times so they can reach their full-rated capacity.

  • Page 87: Regulatory And Safety Agency Approvals

    Regulatory and Safety Agency Approvals Parameter Specification Electromagnetic Emissions/Immunity U.S.A. FCC Part 15, Class B – Verified Canada SOR 88/475, Class B – Verified Europe EN 55022 (CISPR22) Class B EN 61000–3–2 & –3 ETS 300 826 Type Certified Others: EMC 89/336/EEC EN 50082–1:1992 IEC 801–2:1991...

  • Page 88: Auxiliary Rs-232 / Wand Emulation Connector

    Auxiliary RS-232 / Wand Emulation Connector The auxiliary RS-232 / scanner connector supports the attachment of an RS-232 input device. The Aux port is compatible with all Welch Allyn contact and non-contact bar code scanners, including bar code contact wands, lasers, and CCDs which operate in RS-232 (TTL and True).

  • Page 89: Keyboard / Terminal And Rs-232 (Host Port) Connector

    Keyboard / Terminal and RS-232 (Host Port) Connector The cordless Base can output data to keyboard wedge terminals, CRT terminals, and personal computers. The Base also provides direct RS-232 output. Terminal selection may be programmed using Section 1, the “Plug and Play” or Terminal Interface Selections. Output data can be configured for your application by using the Systems Manual, Sections 2 through 4 (Output Parameters, General Operating, and Symbology Menus).
  • Page 90 4.5 in [11.5 cm] Top View 4.0 in [10.2 cm] 1.4 in Front View [3.6 cm] 3/4 View Side View 7–8 Cordless Systems Manual...
  • Page 91 6.00 in [15.24 cm] 4.72 in [11.99 cm] Top View 3.06 in [7.77 cm] 1.45 in [3.68 cm] Front View 8.28 in [21.03 cm] 1.60 in [4.06 cm] 3/4 View Side View Cordless Systems Manual 7–9...

  • Page 92: Typical Performance At 20 C For Scanteam 3470Lr

    Typical Performance at 20 C for 10.16 SCANTEAM 3470LR 7.62 5.08 2.54 3.5” 4.0” 7.0” 2.54 5.08 7 mil 7.62 13 mil 10.16 20 mil ACAP 40 mil ACAP ACAP = As close as possible. 2.54 5.08 7.62 10.16 12.7 15.24 17.78 20.32...

  • Page 93: Typical Performance At 20 C For Scanteam 5770Lr

    Typical Performance at 20 C for SCANTEAM 5770LR 50.8 40.64 30.48 20.32 10.16 18.5” 37.5” 78.5” 88.5” 32.5” 10.16 20.32 10 mil 30.48 10.5 18.5 40.64 15 mil 32.5 50.8 20 mil 37.5 40 mil 78.5 55 mil 88.5 63.5 190.5 Typical Depth of Field in Inches/Centimeters Two additional depth of field measurements, using special reflective bar code...
  • Page 94 Notes: The space below may be used for notes..7–12 Cordless Systems Manual...

  • Page 95: Maintenance And Troubleshooting

    Inspect the Cordless Base’s interface cable and connector for wear or other signs of damage. A badly worn cable or damaged connector may interfere with operation. Contact your Welch Allyn distributor for information about cable replacement. Cable replacement instructions on page 8–2.
  • Page 96 Base unit underneath the Aux Port and pull the cable from the unit. Notes: Order replacement cables from Welch Allyn or from an authorized distributor. When ordering a replacement cable, specify the cable part number of the original interface cable.

  • Page 97: Troubleshooting

    To Reset Factory Settings If you are unsure of the programming options that have been set up in your Cordless System, or you’ve changed some options and now want the factory settings restored, refer to Main Menu Selections in Section 2 and scan the Factory Default Settings bar code.
  • Page 98 Does the Cordless System read your bar code incorrectly? If the Cordless System reads a bar code ( one beep for a good read ), but the bar code is not displayed correctly on the host screen: The Cordless System may not be programmed for the appropriate terminal interface.

  • Page 99: Obtaining Factory Service

    Customer Service Obtaining Factory Service Welch Allyn provides service for all its products through a service center located at its manufacturing facilities in Skaneateles, New York. To obtain warranty or non–warranty service, return the unit to Welch Allyn (postage paid) with a copy of the dated purchase record attached.

  • Page 100: Technical Support

    Allyn’s published specifications during a specified duration (see chart below) from the time of shipment by Welch Allyn, Inc. to the user at the time it is purchased from any of Welch Allyn Inc.’s Authorized Distributors. Any attempt on the part of the user to disassemble or service the equipment shall void the warranty.
  • Page 101 Quick Start and Interface Menu Defaults The following chart lists the factory default Quick Start and Interface Menu settings (indicated by a “ ” on the programming menu pages). Page Parameter Name Default Setting Reference Country Code Selections Keyboard Country United States Page 2–6 Keyboard &...
  • Page 102 Communications Menu Defaults The following chart lists the factory default Communications Menu settings (indicated by a “ ” on the programming menu pages). Page Parameter Name Default Setting Reference Auxiliary Port Communications Baud Rate 38400 Page 3–7 Parity None Page 3–8 Word Length Data Bits Page 3–8 Word Length Stop Bits...
  • Page 103 Page 4–3 Scanner Voting Disable Page 4–3 Laser Marker Beam Disable Page 4–4 Page 4–4 AIM I.D. Transmit Disable Welch Allyn Code I.D. Transmit Disable Page 4–4 Prefix / Suffix Selection Prefix None Page 4–6 Suffix Page 4–6 Data Formatter Selections...
  • Page 104 Symbology Menu Defaults – Industrial The following chart lists the factory default Industrial Symbology Menu settings (indicated by a “ ” on the programming menu pages). Page Parameter Name Default Setting Reference Code 39 Selection Code 39 Page 5–4 Start / Stop Characters Don’t Transmit Page 5–4 Message Length...
  • Page 105 Symbology Menu Defaults – Retail The following chart lists the factory default Retail Symbology Menu settings (indicated by a “ ” on the programming menu pages). Page Parameter Name Default Setting Reference EAN / JAN 8 / 13 Selection EAN / JAN 8 Page 5–10 EAN / JAN 13 Page 5–10...
  • Page 106 This programming chart contains alphanumeric bar codes used for setting additional programming options, such as the digits representing Symbology Message Length. Scan the programming selection bar code first, and then scan the bar code(s) representing the option you want to set. Programming selections that require options to be set are marked with a ] symbol.
  • Page 107 Discard Current Changes Save...
  • Page 108 Code 39 Matrix 2 of 5 TEST–SHEET Code 128 6543210 Code 93 CODE 128 Codabar 123456–9$ Code 2 of 5 0013557900 EAN 13 123456 UPC A with 5 digit addenda 9 780330 290951 56098 Interleaved 2 of 5 0 12345 67890 5 1234567890 Data Collection Division 4619 Jordan Road...
