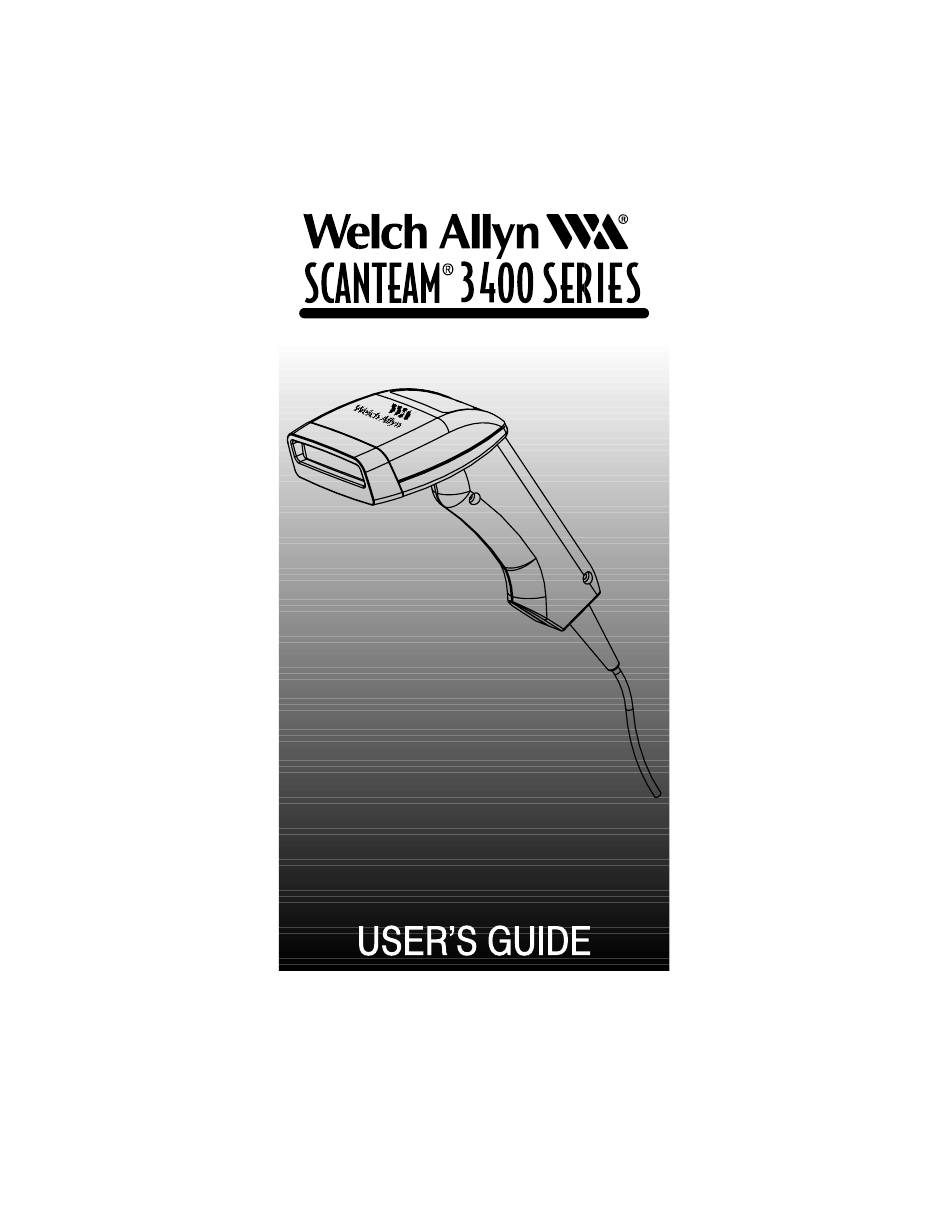

  • Page 1 Laser Emulation...
  • Page 2 E 1998 Welch Allyn, Inc. All rights reserved.
  • Page 3 Caution: Any changes or modifications made to this device that are not expressly approved by Welch Allyn, Inc. may void the user’s authority to operate the equipment. Note: To maintain compliance with FCC Rules and Regulations, cables connected to this device must be shielded cables, in which the cable shield wire(s) have been grounded (tied) to the connector shell.
  • Page 4 The Lodge, Tanners Lane Warrington, Cheshire WA2 7NA England Welch Allyn shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Getting Started Section Page Introduction to the 3400 ......Unpacking the Scanner ......Scanner Identification .
  • Page 7 Table of Contents...

  • Page 8: Getting Started

    GETTING STARTED Introduction to the 3400 Note: This document applies to the SCANTEAM 3400 Hand Held CCD and the SCANTEAM 3400 Long Range CCD unless otherwise noted. The SCANTEAM 3400 Series CCD is durable and reliable, easy to hold and easy to aim. Featuring a unique optics design without moving parts or a glass mirror, the 3400: provides superior first read rate reads 5 mil code in close focus (3400–XX1) and 7 mil...

  • Page 9: Unpacking The Scanner

    Unpacking the Scanner Open the carton. The shipping carton should contain: SCANTEAM 3400 SCANTEAM 3400 Hand Held CCD Scanner Laser Emulation User's Guide Shipping Carton Check to make sure everything you ordered is present. Keep the shipping carton to return the scanner for servicing.

  • Page 10: Scanner Identification

    Scanner Identification SCANTEAM 3400 Identification Label ITEM# 3400/E–102 Scan Rate B = 100 Scans/Second E = 50 Scans/Second Trigger Option Focal Distance 0 = Auto Trigger 1 = reads high density code in contact 1 = Manual Trigger 2 = reads low density code from 0 to 4" [10cm] Interface Option OCIA Bar Image...
  • Page 11 Scanner Identification (3400LR) SCANTEAM 3400LR Identification Label ITEM# 3400LR/F–103 Scan Rate F = 50 Scans/Second Trigger Option Focal Distance 1 = Manual Trigger 3 = reads medium density codes from 0-6" Interface Option OCIA Bar Image Wand True Keyboard RS-232 Option 4683 Laser Out...

  • Page 12: Connecting The Scanner

    Connecting the Scanner Install the scanner by following the steps shown below: Disconnect power to the terminal/computer by turning the host system power switch to the “OFF” position. Power OFF Connect the interface cable to the scanner and to the decoder unit attached to your terminal/computer.
  • Page 13 Once the scanner has been fully connected, restore power to the terminal/computer by turning the host system power switch to the “ON” position. Power ON The 3400 is ready to scan bar code for your application. Scan Bar Code! Getting Started...

  • Page 14: Scanning Techniques

    Scanning Techniques The scanning technique for a single bar code (on a page or an object) is shown below. Single Bar Codes: BEEP! Move the 3400 Vertically The illustration below shows where to aim the red illuminated beam over the bar code for a good read. Correct Incorrect Getting Started...
  • Page 15 The scanning technique for multiple bar codes (on a page or object) is shown below. Multiple Bar Codes: Move the 3400 Horizontally BEEP! Note: The techniques shown are for a 3400 with automatic trigger. To scan with a manual trigger, aim the 3400 at a bar code and press the trigger (like step 2).

  • Page 16: Product Specifications And Pinouts

    PRODUCT SPECIFICATIONS AND PINOUTS Environmental Specifications parameter specification Operating Temperature 32 F to 122 F [0 C to 50 C] Storage Temperature –40 F to 158 F [–40 C to 70 C] Humidity 0% to 95% RH noncondensing Barometric Pressure 101,000 to 69,000 Pascals [Sea level to 3,000 meters] Mechanical Shock...
  • Page 17 Electrical Specifications (3400LR) parameter specification Operating Voltage 5 VDC 10% 5VDC Input only 50 Scans/Sec Current Draw (3400LR/F–103) 140mA Standby Current (3400LR/F–103) less than 3mA In–Rush Current 400mA maximum Power Supply Noise Rejection 100mV peak to peak, from 10 to 100KHz Acquisition Time (Trigger to Output) 100msec maximum Mean Time Between Failure (MTBF)

  • Page 18: Scanner Performance

    Scanner Performance (3400-XX1, XX2) parameter specification Pitch Angle 7 degrees Skew Angle 30 degrees Minimum Reflective Difference 37.5% (MRD) Scan Rate 100 or 50 scans per second (factory selectable) Field Width 2.2 in [55mm] at near contact to 3.0 in [76mm] at 1 in [25mm] from scanner’s nose Horizontal Scan Velocity 0 to 5 inches [127mm] per second...
  • Page 19 Scanner Performance (3400LR) parameter specification Pitch Angle 7 degrees Skew Angle 30 degrees Minimum Reflective Difference 37.5% (MRD) Scan Rate 50 scans per second Field Width 2.2 in [55mm] at near contact to 5.0 in [127mm] at 5 in [127mm] from scanner’s nose Horizontal Scan Velocity 0 to 5 inches [127mm] per second...

  • Page 20: Pinouts

    Trigger Trigger Signal to Decoder Gray Start of Scan Standard Laser Cable: for 3400–X0X Terminating Connector: Standard 9 Pin (Type D) Squeeze–to–Release Connector (compatible with Welch Allyn terminals) Standard Welch Allyn Signal Function Color Code Grey Start of Scan Green...

  • Page 21: General Dimensions

    General Dimensions SCANTEAM 3400 Weight: 5.5 oz [155g] Side View Belt Loop (for portable applications) 3/4 View 5.84 in [14.8cm] 5.83 in [14.8cm] Front View 2.97 in Top View [7.5cm] Product Specifications and Pinouts...

  • Page 22: Maintenance And Troubleshooting Guide

    Inspect the 3400’s interface cable and connector for wear or other signs of damage. A badly worn cable or damaged connector may interfere with scanner operation. Contact your Welch Allyn distributor for information about cable replacement. Cable replacement instructions below..Maintenance and Troubleshooting Guide...
  • Page 23 The cable’s designed to be field replaceable. Notes: Order replacement cables from Welch Allyn or from an authorized distributor. When ordering a replacement cable, specify the cable part number of the original interface cable.

  • Page 24: Troubleshooting

    3400 is connected to. If All Else Fails... If you are still experiencing problems, call your Distributor or Welch Allyn: 315–685–8945 (8 a.m. to 4:30 p.m. EST) (For more information on Customer Support or Warranty information see the two sections following this one.)
  • Page 25 Maintenance and Troubleshooting Guide...

  • Page 26: Customer Support

    CUSTOMER SUPPORT Obtaining Factory Service Welch Allyn provides service for all its products through a service center located at its manufacturing facilities in Skaneateles, New York. In the United States, please contact the Welch Allyn Product Service Department (address below) to obtain a Return Material Authorization number (RMA #).
  • Page 27 Buckinghamshire HP22 4ND England Telephone: Int+44 1296 682140 Fax: Int+44 1296 682104 For service in Asia, please contact your Welch Allyn representative (at address below) or your local distributor. Welch Allyn, Hong Kong Office 10/F Tung Sun Commercial Centre 194–200 Lockhart Road Wanchai, Hong Kong Telephone: Int+852–2511–3050 or 2511–3132...

  • Page 28: Limited Warranty

    SCANTEAM 3400 that fails to perform according to its published specifications during a period of three (3) years from the time of shipment by Welch Allyn (or from a Welch Allyn authorized distributor) to the user.

  • Page 29: Sample Bar Codes (Inside Back Cover)

    SAMPLE BAR CODES Codabar 0013557900 Code 39 TEST–SHEET Interleaved 2 of 5 1234567890 Code 11 Code 128 11223344 CODE 128 UPC-E UPC-A with 5 digit addenda 56098 0 12345 67890 5 0 012345 EAN 13 UPC-A 0 12345 67890 5 9 780330 290951 Data Collection Division 4619 Jordan Road...
