Summary of Contents for Welch Allyn Scanteam PDF417

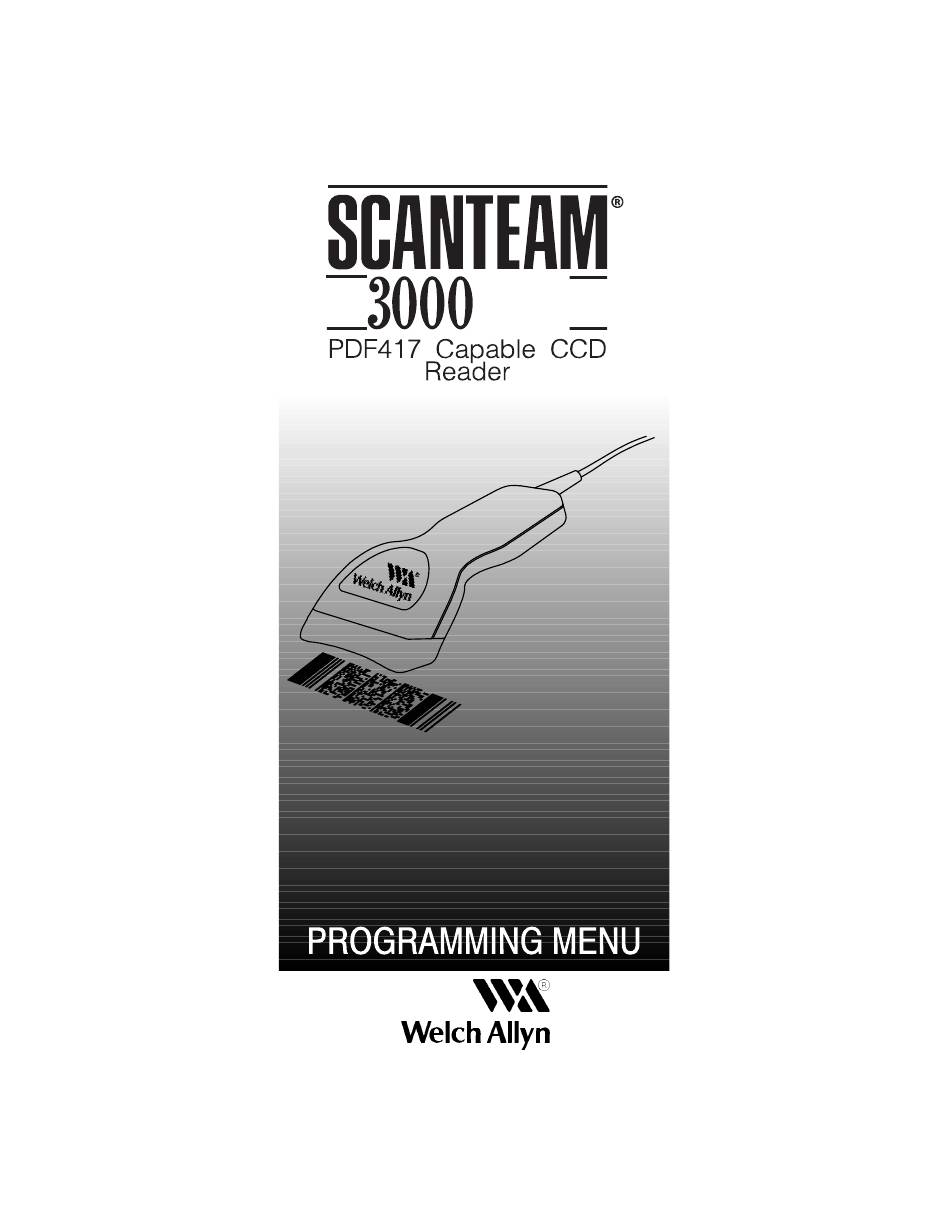

  • Page 1 /PDF...
  • Page 2 E 1998 Welch Allyn, Inc. All rights reserved.
  • Page 3 Welch Allyn reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Welch Allyn to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of Welch Allyn.
  • Page 4 SYSTEM SCANTEAM 3000/PDF/PM Programming Menu GUIDE USE THIS PAGE As a general overview of the programming menu. The programming menu consists of two basic components as shown below. BAR CODE CHART II CODE Programming Menu Programming Menu SELECTION II USE THIS PAGE In combination with the adjoining menu pages to program the unit.
  • Page 5 BEEPER SCANTEAM 3000/PDF Information/Examples Volume This programming selection provides control of the reader’s beeper volume. The beeper volume may be set from low to high in four increments. Default = “2,” medium–high. Beep on Power Up When enabled, the reader will double beep each time the system is reset. When disabled, the beeper will not sound whenever the system is reset.
  • Page 6 BEEPER SCANTEAM 3000/PDF Programming Menu USE THIS PAGE To default this page to asterisked (*) values. To set beeper volume. To program beep on power up and / or beep on good read. To program click on row read for Code 16K and Code 49. To program ticking or humming to indicate scanning / decoding progress for PDF417.
  • Page 7 RS–232 SCANTEAM 3000/PDF Information/Examples Baud Rate This programming selection sets the baud rate from 600 bits per second to 38,400 bits per second. Programming baud rate causes the data to be sent at the specified rate. Default = 9600 bits per second. Character Format This programming selection allows you to set the character format for number of data and parity bits.
  • Page 8 RS–232 SCANTEAM 3000/PDF Programming Menu USE THIS PAGE To default this page to asterisked (*) values. To set baud rate. To program character format. To program data flow control. scan selections variables scan scan BAUD RATE 600 bits/second 1200 bps ENTER 2400 bps 4800 bps...
  • Page 9 TRIGGER SCANTEAM 3000/PDF Information/Examples Generally, a TRIGGER ON causes the reader to begin decoding, and a TRIGGER OFF halts decoding. The meaning of TRIGGER ON and TRIGGER OFF depends on the trigger mode. Autotrigger Enable In autotrigger mode, the reader scans continuously. It does not, however, output decoded messages continuously.
  • Page 10 TRIGGER SCANTEAM 3000/PDF Programming Menu USE THIS PAGE To default this page to asterisked (*) values. To set the trigger mode to autotrigger. To set the trigger mode to manual trigger. scan selections scan AUTOTRIGGER ENABLE MANUAL TRIGGER ENABLE ENTER (For both hardware and serial triggering) Notes: (1) * Denotes DEFAULT selection.
  • Page 11 PREAMBLE/POSTAMBLE SCANTEAM 3000/PDF Information/Examples Preamble / Postamble The scanner will transmit the decoded message after every successful bar code read. You have the option of adding characters before (preamble) and after (postamble) the bar code: Transmitted data frame –> Preamble Bar Code Message Postamble Characters for the preamble and postamble are selected by their hexadecimal ASCII...
  • Page 12 SCANTEAM 3000/PDF Programming Menu PREAMBLE/POSTAMBLE USE THIS PAGE To default this page to asterisked (*) values. To program preamble/postamble variables. scan selections variables scan PREAMBLE Up to EIGHT hexadecimal pairs, 00 through FF (Prefix) ENTER POSTAMBLE Up to EIGHT hexadecimal pairs, 00 through FF (Suffix) Notes:...
  • Page 13 CODE SCANTEAM 3000/PDF Information/Examples SELECTION I Note: Welch Allyn PDF Capable readers can autodiscriminate between 15 Symbologies. For maximum data security, disable the codes not used. (INDUSTRIAL) Symbology Option Explanation Codabar S/S Xmit Data in a Codabar symbol is framed by a start and a stop character.
  • Page 14 CODE SCANTEAM 3000/PDF Programming Menu SELECTION I (INDUSTRIAL) USE THIS PAGE To select the pre–programmed asterisked (*) values by scanning DEFAULT symbol. To enable or disable listed code selections. scan selections scan variables scan scan CODABAR Enable *Yes/No ID = a (HEX 61) S/S Xmit Yes/No* ENTER...
  • Page 15 CODE SCANTEAM 3000/PDF Information/Examples SELECTION II Note: Welch Allyn PDF Capable readers can autodiscriminate between 15 Symbologies. For maximum data security, disable the codes not used. (RETAIL) Symbology Option Explanation Version A Standard Version, used to encode a 12–digit number; the first digit is the number system character, the next ten are data characters, the last is a check character.
  • Page 16 CODE SCANTEAM 3000/PDF Programming Menu SELECTION II (RETAIL) USE THIS PAGE To select the pre–programmed asterisked (*) values by scanning DEFAULT symbol. To enable or disable listed code selections. scan selections scan variables scan scan Version A *Yes/No ID = c (HEX 63) Version D (2) ENTER Version E0...
  • Page 17 CODE SCANTEAM 3000/PDF Information/Examples SELECTION III Note: Welch Allyn PDF Capable readers can autodiscriminate between 15 Symbologies. For maximum data security, disable the codes not used. (STACKED) Symbology Option Explanation PDF417 One–Pass If this option is enabled, any partial PDF417 scan will be cleared from memory upon a TRIGGER OFF.
  • Page 18 CODE SCANTEAM 3000/PDF Programming Menu SELECTION III (STACKED) USE THIS PAGE To select the pre–programmed asterisked (*) values by scanning DEFAULT symbol. To enable or disable listed code selections. scan selections scan variables scan scan PDF417 Enable *Yes/No ID = r (HEX 72) One–Pass Option Yes/No* ENTER...

  • Page 19: Serial Menu

    SERIAL MENU SCANTEAM 3000/PDF Programming Menu Using the Serial Menu The serial menu may be used any time in place of the bar code menuing. The serial menu is particularly useful for programming PDF capable machine–mount readers that don’t have a hardware trigger. Every programming menu code can be replaced by a two–character serial command.
  • Page 20 SERIAL MENU CHART I 3000/PDF Programming Menu USE THIS PAGE In combination with the adjoining menu pages to program the 3000/PDF by sending serial commands from the host. The serial command sequences on this page correspond to the bar code symbols on the BAR CODE CHARTS. ROMAN NUMERALS K <Ctrl–Y>...
  • Page 21 SERIAL MENU CHART II 3000/PDF Programming Menu USE THIS PAGE In combination with the adjoining menu pages to program the 3000/PDF by sending serial commands from the host. The serial command sequences on this page correspond to the bar code symbols on the BAR CODE CHARTS. LETTERS A <Ctrl–Y>...
  • Page 22 SERIAL MENU CHART III 3000/PDF Programming Menu USE THIS PAGE In combination with the adjoining menu pages to program the 3000/PDF by sending serial commands from the host. The serial command sequences on this page correspond to the bar code symbols on the BAR CODE CHARTS. DIGITS 0 <Ctrl–Y>...

  • Page 23: Sample Bar Codes

    Interleaved 2 of 5 TEST–SHEET Code 2 of 5 1234567890 Matrix 2 of 5 123456 Plessey 6543210 Codabar 9876 Code 11 0013557900 Code 128 11223344 CODE 128<BEL> UPC–A 5 add on 44332211 EAN–13 031323120786 56098 9780330290951 PDF417 WELCH ALLYN IS PDF CAPABLE!
  • Page 24 BAR CODE CHART I 3000/PDF Programming Menu USE THIS PAGE In combination with the adjoining menu pages to program the 3000/PDF. The bar codes on this page correspond to symbols in shaded areas on adjoining menu pages. SCAN these bar codes in the sequence indicated on menu page to program desired selections and variables.

  • Page 25: Bar Code Chart

    BAR CODE CHART II 3000/PDF Programming Menu USE THIS PAGE In combination with the adjoining menu pages to program the 3000/PDF. The bar codes on this page correspond to symbols in shaded areas on adjoining menu pages. SCAN these bar codes in the sequence indicated on menu page to program desired selections and variables.
  • Page 26 BAR CODE CHART III 3000/PDF Programming Menu USE THIS PAGE In combination with the adjoining menu pages to program the 3000/PDF. The bar codes on this page correspond to symbols in shaded areas on adjoining menu pages. SCAN these bar codes in the sequence indicated on menu page to program desired selections and variables.
  • Page 27 4619 Jordan Road P.O. Box 187 Skaneateles Falls, New York 13153–0187 3000/PDF/PM Rev B...
