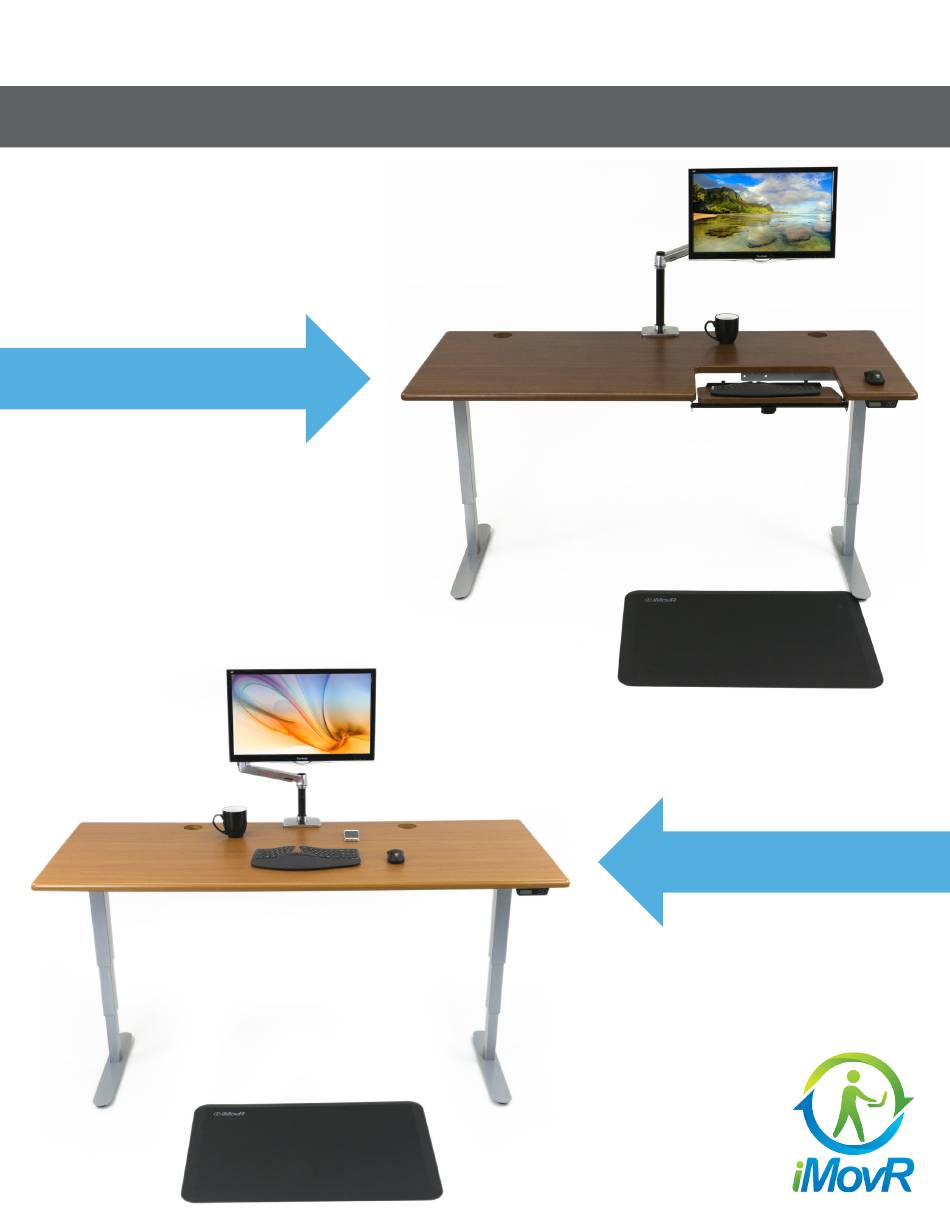

- Page 1 Cascade & Energize INSTALLATION MANUAL Cascade Standing Desk ™ Energize Standing Desk ™...
-
Page 2: Table Of Contents
BEFORE YOU BEGIN STEP 1 Congratulations on purchasing an iMovR GET READY Use these charts to make sure all the contents of your desk are Cascade or Energize Standing Desk! Use this present. guide or our installation video to assemble your new desk. - Page 3 KEYBOARD TRAY ASSEMBLY PARTS DESK ASSEMBLY PARTS (included with Cascade desks only) Part Part Picture Picture name name 26-Inch Center Crossbar Keyboard Cord Tray Platform M4.5 20mm Wood Screw Keyboard Platform Support Control Unit #10 1-1/4” M3.5 Flat Head 20mm Phillips Wood Screw...
-
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 2 PREPARE YOUR WORK AREA Clear your working area of any materials that might scratch or damage the tabletop. Place the tabletop upside-down on a soft surface such as carpet or a blanket. STEP 3 OPEN BASE BOX & REMOVE ALL ITEMS Remove the base parts from the box and arrange the contents near your assembly area. - Page 5 STEP 5 ATTACH FEET TO LEGS Step 5 Complete 1. Attach Feet (Part #7) to Legs using 4 M8 Hex Screws (Part #5). Ensure Feet face correct direction (short ends towards back of desk). 2. Hand turn Leveling Pads (Part #8) tightly. Note: These pads help level desk in event of an uneven floor surface;...
- Page 6 STEP 7 ATTACH CENTER CROSSBAR TO TABLETOP 1. Align 26-Inch Center Crossbar (Part #10) with holes on tabletop. Center Crossbar should rest flush against 23-Inch Back Crossbars. 2. Attach Center Crossbar using 4 M4.5 20mm Wood Screws or M5 20mm Machine Screws (Part #9). STEP 8 ATTACH CORD TRAY TO TABLETOP...
- Page 7 If you’re looking for a way to boost your wrist and arm ergonomics while saving desk space, you may want to try our best-in-class iMovR Stowaway Keyboard Tray. Tilting to an industry-leading -20° for enhanced wrist ergonomics, it also comes with a fully-articulating mouse platform for minimizing lateral arm movement, and conveniently stows under your desk for when it’s...
- Page 8 STEP 13.1 ASSEMBLE KEYBOARD PLATFORM 1. There are 2 options for mounting your Keyboard Platform. Choose option a – for standard mounting position. Choose option b – if you plan to stand often, and want your keyboard closer to height of desk surface. (See photos to the right.) a.
- Page 9 STEP 13.2 ATTACH KEYBOARD PLATFORM Step 13.2 Complete 1. Align Keyboard Tray Mounting Assembly (Part #19) with 4 insert nuts on both sides of SteadyType desk cutout. 2. Attach using 8 M5 20mm Pan Head Machine Screws (Part #18c). STEP 13.3 TURN DESK OVER 1.
- Page 10 STEP 13.5 ATTACH RUBBER KEYBOARD BUMPERS 1. Fit Carriage Bolts (Part #21a) through 2 slots cut into Keyboard Platform. Note: Carriage Bolt heads should be flush with underside of Keyboard Platform. 2. Twist Rubber Bumpers (Part #21b) over screw threads to secure in place. STEP 13.6 USING THE STEADYTYPE KEYBOARD PLATFORM 1.
- Page 11 You’re ready to enjoy a healthier, more productive workday! After connecting all cables and testing desk is working properly, you may want to use supplied self-adhesive cable guides to tidy up for a cleaner appearance. For more cable management gear, visit: www.imovr.com/cable-management-video...
-
Page 12: Controller Instructions
CONTROLLER INSTRUCTIONS INITIAL CALIBRATION The initialization procedure must be completed before the desk can be used. Step Operation Result Desk height displays on screen. Press s or t to awaken controller. Small “house” icon displays on bottom left corner. Make sure to press Press and hold st simultaneously for 5+ sec- arrows at precisely the same time. - Page 13 MOVE TO MEMORY POSITIONS Step Operation Result Press and hold s or t arrow. Desk raises/lowers until reaching saved position. CLEAR MEMORY POSITIONS This procedure is the same as the Initial Calibration. Step Operation Result Press s or t to awaken controller. Desk height displays on screen.
-
Page 14: Troubleshooting
(height, depth, and angle), which means less neck and eye strain and more comfort during your standing desk experience. iMovR offers several varieties, including those designed for heavy monitors and dual monitors. Add one to your desk system -- you’ll keep your eyes on the prize, ergonomically speaking. -
Page 15: Maintenance
MAINTENANCE AND GOOD-SENSE TIPS RE-TIGHTEN CLEANING THE DESKTOP After first week of use it’s a good idea to check and re-tighten any All desktops are manufactured with a “3D lamination” process that screws / bolts. results in an extremely durable surface, similar to what’s often used in hospital environments. -
Page 16: Warranty
(b) within 30 days after notice of claim, is in receipt of the defective unit at its place of business, unless this requirement is waived by iMovR. The manu- facturer will arrange for retrieval of the defective product via its carrier-of-choice.
