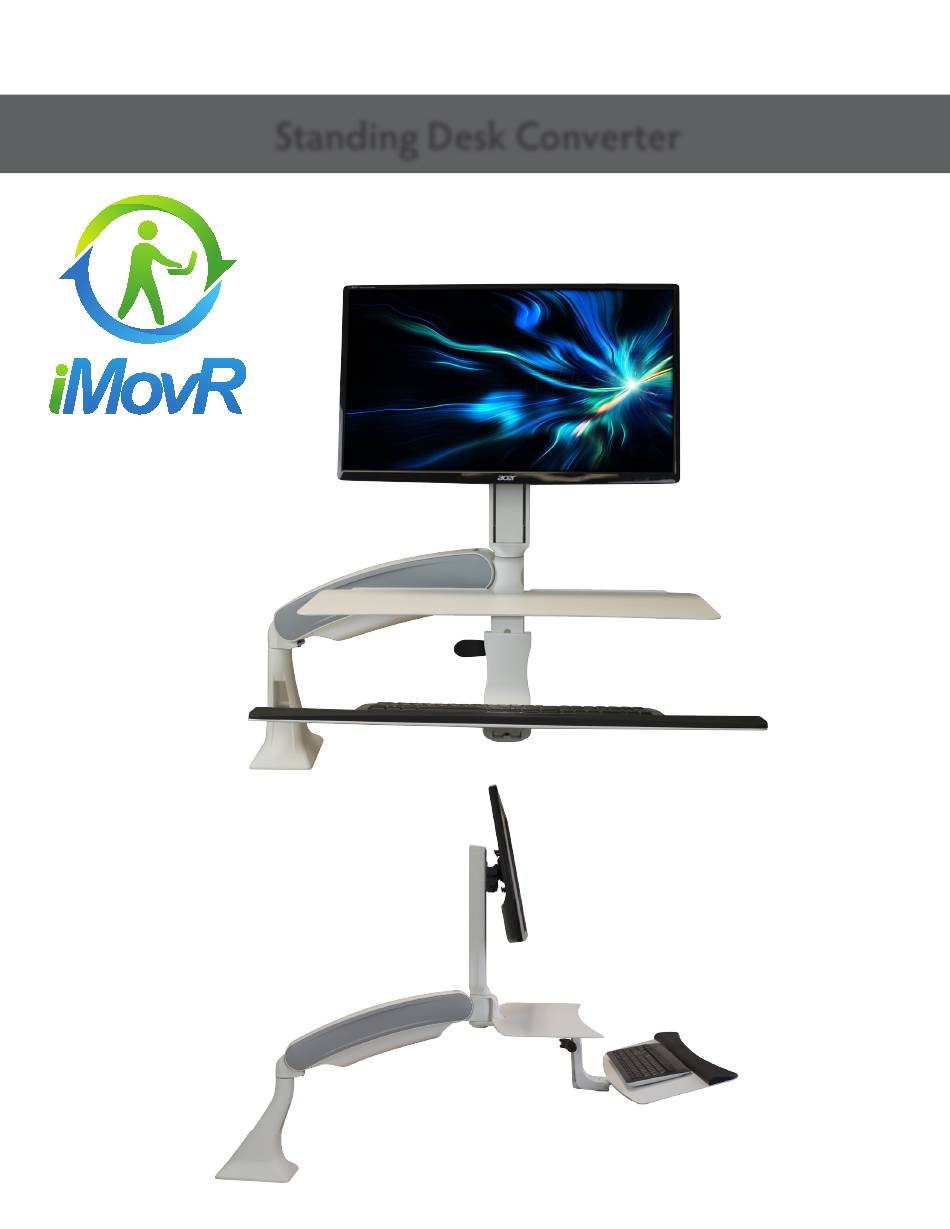

- Page 1 Cadence iMovR Standing Desk Converter INSTALLATION MANUAL...
- Page 2 INSTALLATION MANUAL FOR SIT-STAND WORKSTATION Weight Capacity: 6.5-25 lbs. Monitor Weight: 5-20 lbs. 6011180 Rev. G...
-
Page 3: Table Of Contents
Contents Tools Required / Supplied Part Kits / Warnings/Disclaimers ..2 Installing Keyboard Tray ............5 Base Installation Keyboard Tilt ................6 Clamp Mount Base Orientation .......... 3 Keyboard Storage Stop ............6 Grommet Mount Base Orientation ........4 Installing the Monitor ............... 6 Installing the Pivot Limiter (Optional) ......... -
Page 4: Base Installation
Base Installation The unit can be installed on a 24" or 30" deep rectangular or corner desk using the integral desk clamp or grommet mounting hardware provided. Clamp Mount Base Location STEP 1 Determine desired installed tray location. Offset base location by 7" left or right for a 24" deep desk or place in desired installed location for a 30"... -
Page 5: Grommet Mount Base Orientation
Grommet Mount Base Orientation If installer is drilling their own hole, ensure that the diameter is a minimum of 1/2". STEP 3 STEP 2 STEP 1 Tighten the bolt securely under Insert the grommet bolt through the washer Detach the angle bracket assembly (not used in a the desk using a 7/32"... -
Page 6: Attaching The Arm To The Base
Attaching the Arm to the Base With the base already installed on the desk. STEP 5 STEP 4 Plastic NOTE: Ensure Do not overtighten bolt as Steel nylon bushing is this may cause damage STEP 1 on the arm post to the product. -
Page 7: Keyboard Tilt
Keyboard Tilt Keyboard Storage Stop (+4° to -15°) To adjust the tray angle, place tray in desired tilt To adjust the maximum storage angle, place tray in position and adjust front set screw with the 1/8" the maximum storage location and tighten rear set Allen Key. -
Page 8: Cable Management Installation
Cable Management Installation After the technology has been installed, ensure there is enough slack in the cables from the monitor, keyboard and mouse along with any other peripherals. STEP 1 Locate the two cable management clips under the arm. Gently open each of the clips. -
Page 9: Tray Leveling Adjustments (Left To Right)
Tray Leveling Adjustments (Left to Right) STEP 2 Tray adjustment is to be made after all technology has been installed. 3/16" Allen ATTENTION: Tray must be parallel to the work surface and swiveled 90° to the base when adjusting. – –...
