SPECIFICATIONS
Effective pixels
: PAL: 510x492 / NTSC: 500x582
Electronic shutter
: 1/50 (1/60) to 1/100,000 seconds
Infrared lamps
: 20M
Infrared lamps
: LED array
Horizontal Resolution
: 420 TVL
Minimum illumination
: 0Lux
Lens options
: 3,6mm
S/N Ratio
: 48dB (AGC off)
White Balance
: Automatic tracking
Video Output
: 1.0Vp-p, 75 ohms
Video Output
: BNC
Power
: 12V DC/1000mA
Power Consumption
: 6W
SAFETY AND MAINTENANCE INSTRUCTIONS
GB
SICHERHEITS- UND WARTUNGSHINWEISE
D
VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES
NL
INSTRUCTIONS DE SECURITE ET D'ENTRETIEN
F
CCD422/3

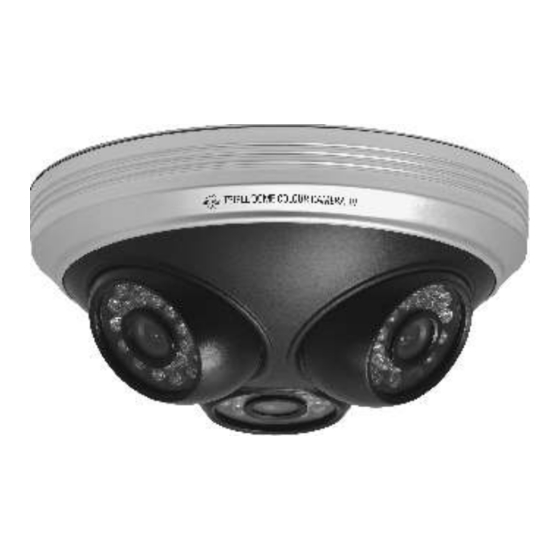

TRIPLE DOME CAMERA
Advertisement
Table of Contents
Related Manuals for ELRO CCD422
Summary of Contents for ELRO CCD422

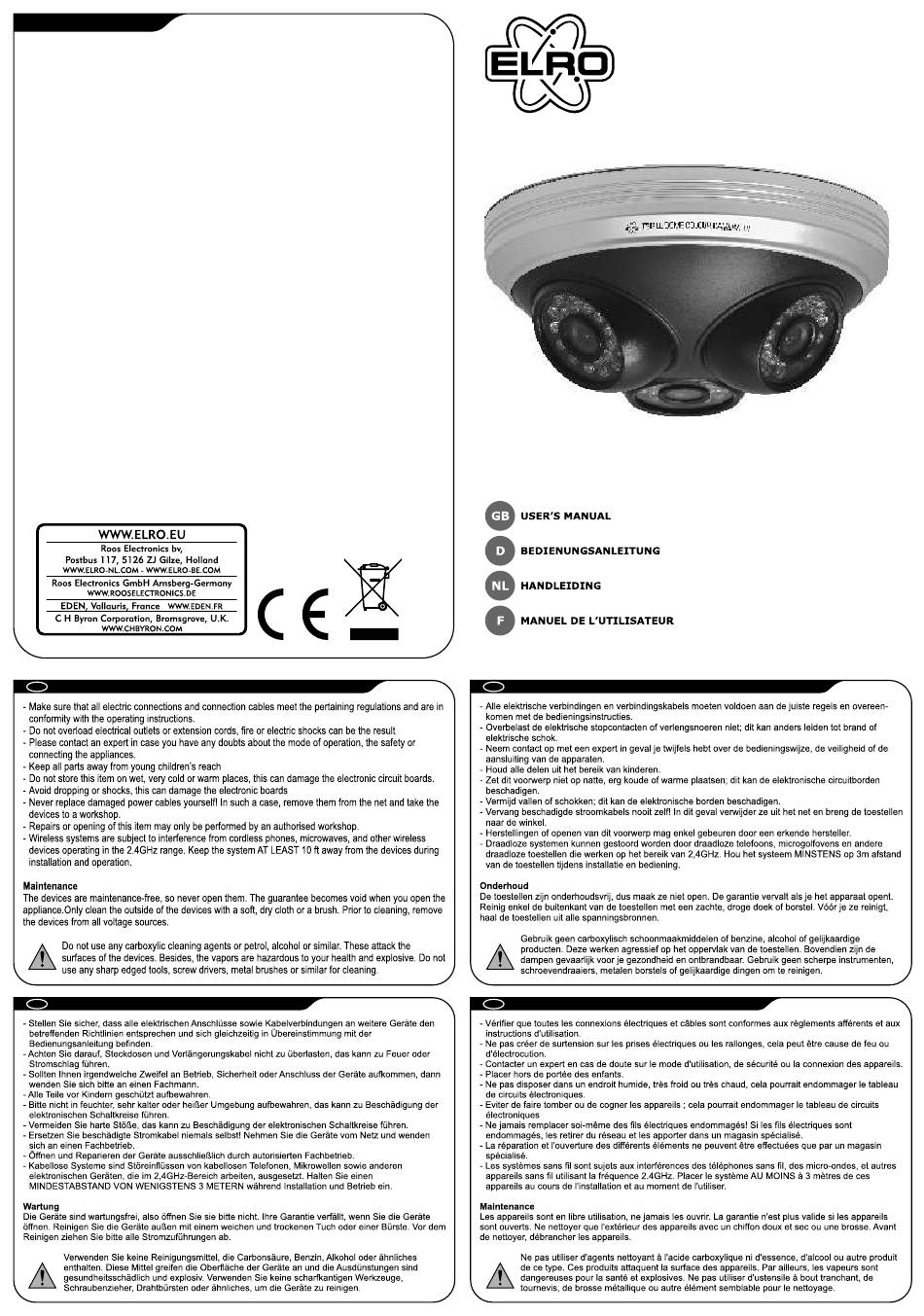

- Page 1 SPECIFICATIONS Effective pixels : PAL: 510x492 / NTSC: 500x582 Electronic shutter : 1/50 (1/60) to 1/100,000 seconds CCD422/3 Infrared lamps : 20M Infrared lamps : LED array Horizontal Resolution : 420 TVL TRIPLE DOME CAMERA Minimum illumination : 0Lux Lens options...
-
Page 2: Extension Cables
Overview a. Indoor triple camera b. camera lens c. IR leds for nightview d. Unscrew to open the camera housing and screw to close e. Mounting plate a. Innenraum-Dreifachkamera b. Kamera-Objektiv c. Infrarot-LEDs für Nachtsicht d. Auf- und Zuschrauben zum Öffnen und Schließen des Kameragehäuses e.
