Boxes and connectors
1.3.1.
CAN-bus box

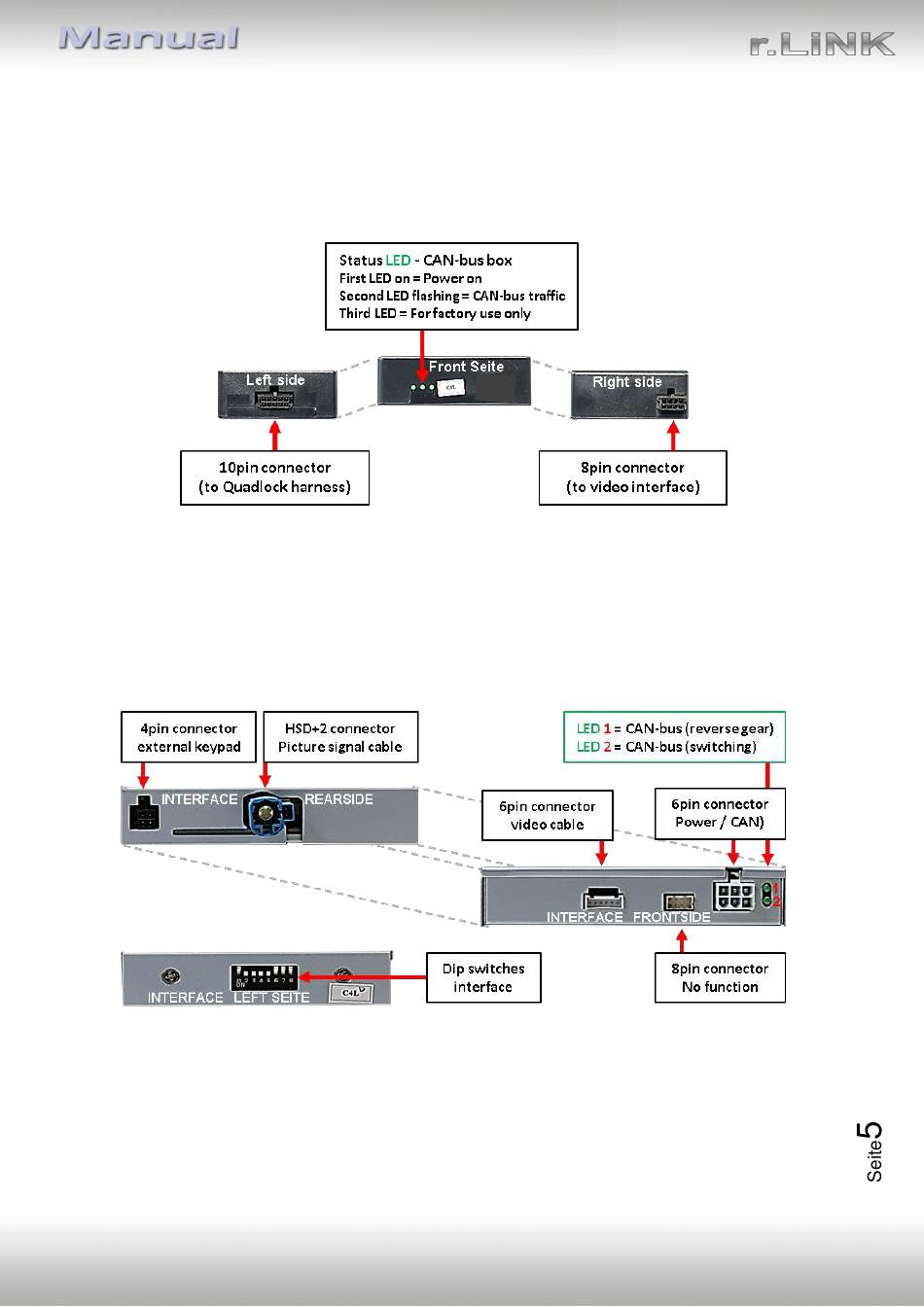

The CAN-bus box reads digital signals from the vehicle's CAN-bus and converts them for the
video-interface.
1.3.2.
Video-interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle's digital signals out of the vehicle's CAN-bus and
converts them for the video interface.
Version 22.01.2020
HW CAM(V31),(V22)
RL2-MBN45
