2.6.
Connection – video sources
It is possible to connect 2 after-market Video-sources and 1 after-market rear-view camera
to the video-interface.
Before final installation of the peripheral devices, we recommend a test-run of the
interface. Due to changes in the production of the vehicle manufacturer is always the
possibility of incompatibility.

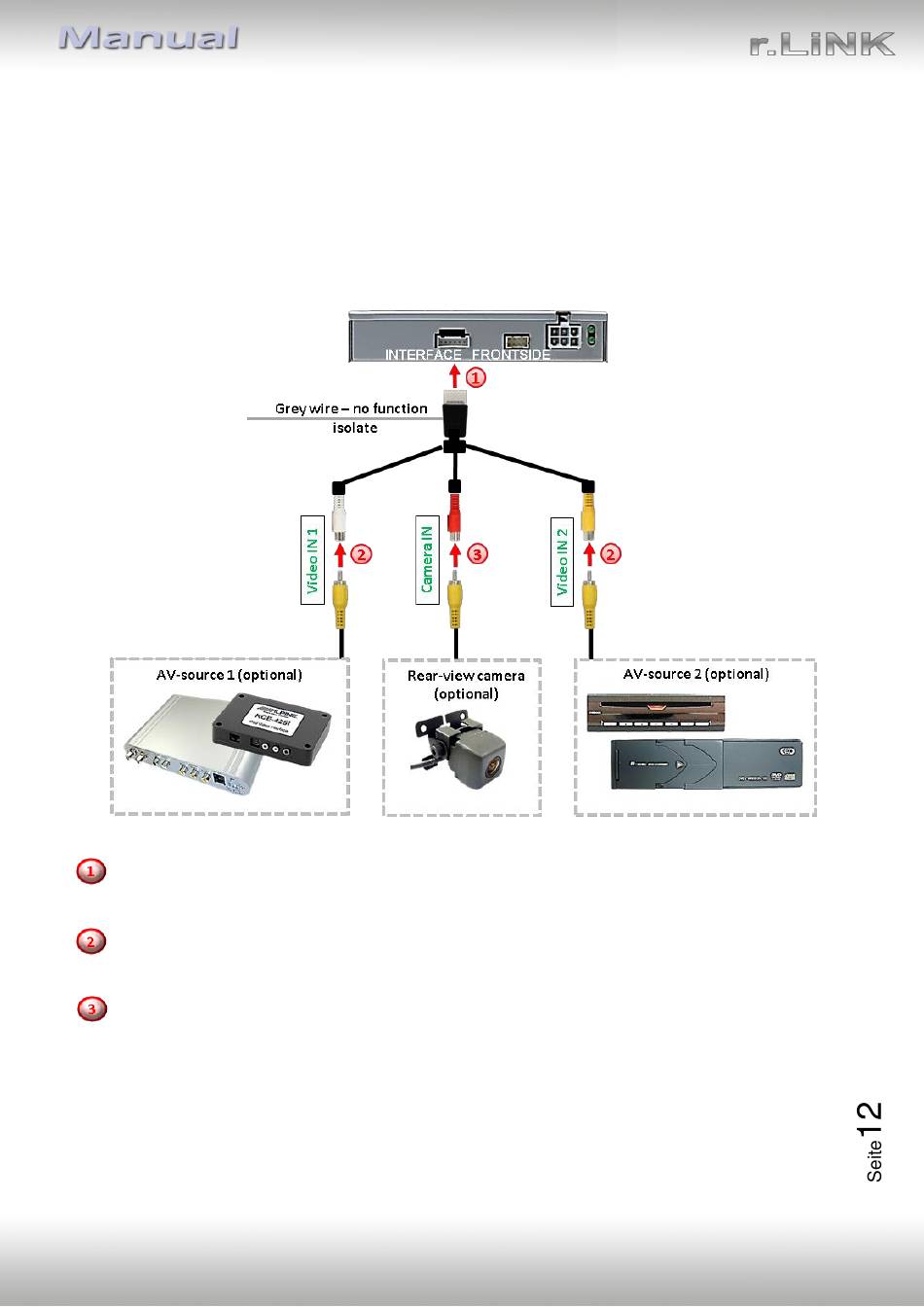

Connect the female 6pin connector of the video cable to the male 6pin connector of the
video-interface.
Connect the video RCA of the video source 1 and 2 to the female RCA connector
"Video IN1"
and
"Video IN 2"
of the 6pin video cable.
Connect the video RCA of the rear-view camera to the female RCA connector
"Camera IN"
of the 6pin video cable.
Version 22.01.2020
HW CAM(V31),(V22)
RL2-MBN45
