2.3.

Connection - video-interface and CAN-box

The CAN-bus box reads digital signals from the CAN-bus and converts them for the video-
interface. ACC +12V max. 0.5A (red of 6pin) and reverse gear +12V max. 0.5A (green of 6pin)
constant signal. Video-source switching (white of 6pin) as +12V impulse.

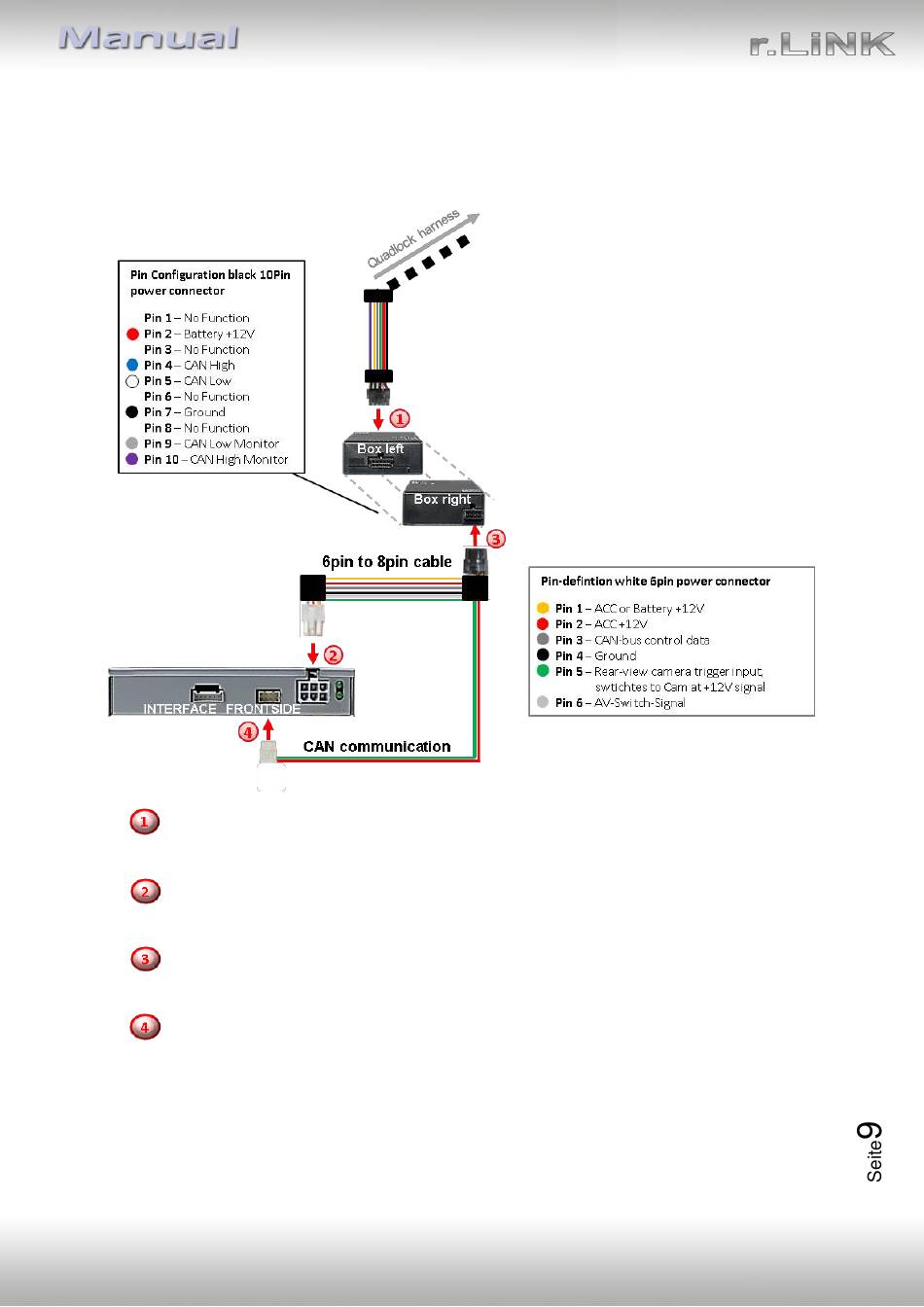

Connect theblack female 10pin connector of the Quadlock harness to the male 10pin
connector of the CAN-box.
Connect the white female 6pin connector of the 6pin to 8pin cable to the male 6pin
connector of the video-interface.
Connect the black female 8pin connector of the 6pin to 8pin cable to the male 8pin
connector of the CAN-box.
Connect the CAN communication cable's white female 8pin connector to the 8pin
connector of the video interface.
Note: Check the LEDs on CAN-box after reconnecting the battery, two must be on.
Not all vehicles are kompatible. If the CAN-box does not deliver ACC to pin2 of the video-
interface or blocks the thevehicle's CAN, it is possible to install the video interface without
the CAN-box. In this case see also note in chapter after-market rear-view camera if one is
supposed to be connected.
Version 22.01.2020 HW CAM(V31),(V22) RL2-MBN45
