2.5.

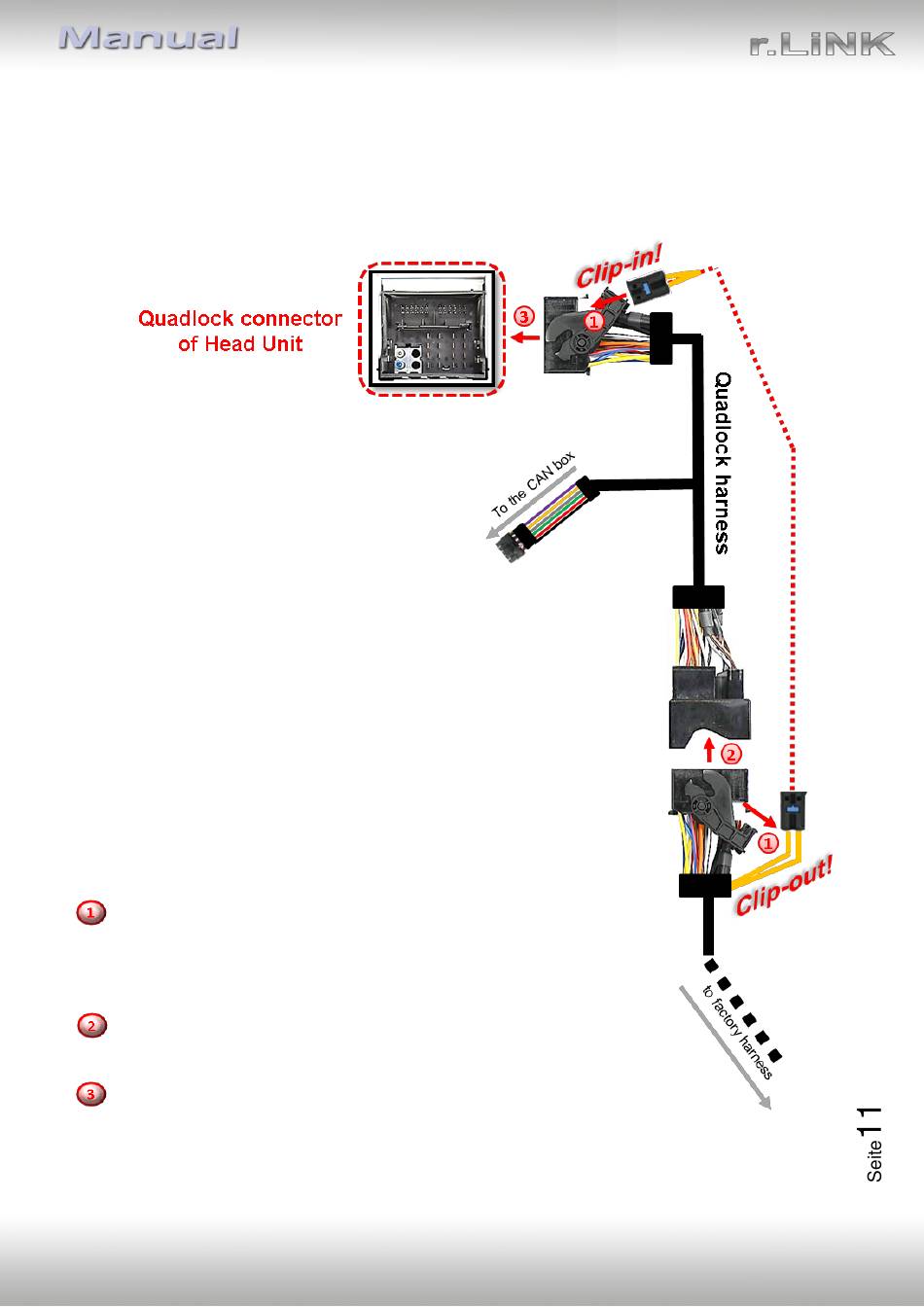

Connection - head-unit
Remove head-unit and unlock and disconnect the female 40pin Quadlock connector at the
head unit's rear-side.
Clip out the conceivably existing optical leads at the female Quadlock
connector of the factory harness and clip it in the prefabricated
plug-in location at the female Quadlock connector of the Quadlock
harness.
Connect the previously become free female Quadlock connector of the
factory harness to the male Quadlock connector of the Quadlock harness.
Connect the opposite female Quadlock connector of the Quadlock harness
to the Quadlock connector of the head unit.
Version 22.01.2020
HW CAM(V31),(V22)
RL2-MBN45
