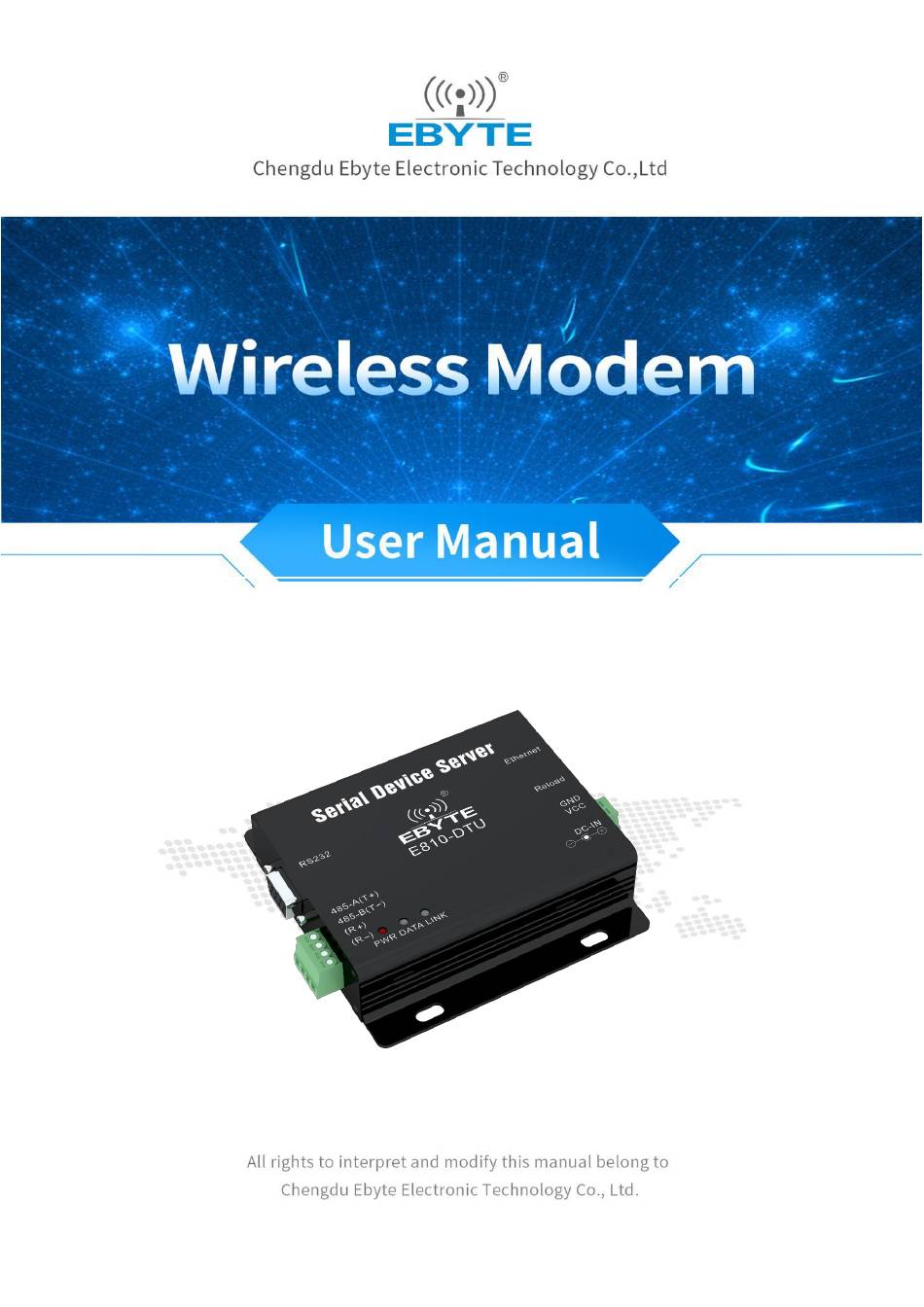

- Page 1 Ethernet to RS232/RS485/RS422 E810-DTU...
-
Page 2: Table Of Contents
5.1 Communication range is too short ........................25 5.2 Module is easy to damage ..........................25 5.3 High bit error rate ............................25 6. Revision history ............................... 26 7. About us ................................... 26 Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 3: Product Overview
1. Product overview 1.1.Product Introduction E810-DTU (1RS1E) is a single serial port server that transfers RS232 & RS485 & RS422 to ethernet. It realizes data transparent transmission between RJ45 and RS232 or RS485 or RS422. Equipped with M3 series 32-bit processor, it runs fast and has high efficiency. With adaptive network rate (up to 100M full duplex), TCP Server, TCP Client, UDP Server, UDP Client four communication mechanisms. -
Page 4: Product Design Introduction
Chengdu Ebyte Electronic Technology Co.,Ltd E810-DTU(1RS1E) User Manual 2. Product design introduction 2.1. Dimensions Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 5: Identity Definition
Power supply terminal, default 8~36V, recommended 12V/24V, can not be powered at the same time as the power socket (3.81mm terminal block) Power terminal block ground (3.81mm terminal block) Reload Restore the factory setting button, long press 5 to 10 seconds valid Ethernet RJ45 Network Interface Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 6: Communication Connection Diagram
Note: When wiring as full-duplex (RS422) or half-duplex (RS485), in order to prevent signal reflection and interference, a matching resistor (parameter 120 ohm 1/4W) must be connected at the end of the line! Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 7: Product Function Introduction
DNS is called Domain Name System. The distribution of domain names and IP addresses on the World Wide Web (www) is a database. After the device has the correct DNS server, it can interact with the external network (World Wide Web) server through the network domain name. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 8: Serial Port Function
TCP Client has the difference of connection and disconnection, thereby ensuring reliable exchange of data. It is commonly used for data interaction between devices and servers and is the most commonly used method of networked communication. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 9: Tcp Server Function
(4) TCP Server can set the maximum number of connections. When the number of connections reaches the maximum, it can choose to kick out the old connections or prohibit the establishment of new connections according to the configuration instructions. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 10: Udp Client Function
TCP because of its fast speed and frequency. Note: UDP Server cannot send data on its own initiative. Only after receiving data can it send data to IP and ports that have recently interacted with data. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 11: Special Function
The module can be accessed through a browser to configure the web page. When the web page is accessed, the access terminal and the module are in the same local area network, and after entering the user name and password, the web configuration page is entered. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 12: Heartbeat Package Function
Data carrying registration package: The sending data accesses the registration package at the front end of the data, and is mainly used for protocol transmission. The registration mechanism is only applicable to TCP client and UDP client, which is invalid under TCP server and UDP server. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 13: Transparent Cloud Function
The user can enable the transparent cloud function through instructions, and register and exchange data according to the related usage methods of the Ebyte cloud platform. For details, please refer to the "Ebyte Cloud Platform Transparent Transmission Guide". -
Page 14: Short Connection Function
The time of timeout restart can be set through the webpage. The normal working time of this function is set to 60~65535S, and the default value is 3600S. 0 is off, when the setting is out of range, it returns to the default value. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 15: Clear Cache
When there is data transmission on the serial port, the flashing indicates that the period is 60ms and the indicator is on for 10ms. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 16: Restore Factory Settings
Note: E810-TTL module supports cross network segment configuration. It is not necessary to set the PC side to be the same as the module IP address segment during configuration. However, when performing UDP/TCP communication on a LAN, the IP address segment must be the same, otherwise communication will fail. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 17: Default Parameters
Package length of serial port 1460 （byte） Socket A1 basic parameters TCPS,192.168.4.101,8886 Socket A1 Heartbeat package mode Socket A1 Heartbeat package content 0（s), Turn off heartbeat package function Socket A1 Registration package mode heartbeat msg Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 18: Socket Instructions
1. Set the IP address of the PC to be the same as the E810-TTL module and the PC. The subnet mask is the same. For example, the IP of the PC is 192.168.4.100, and the IP of the module is 192.168.4.101. PC side configuration: Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 19: Tcp Client Instructions
2. Set the device socket A1 network type to TCPC (TCP client), the destination IP is 192.168.4.100, the local port is 0 (random port), and the destination port is 8886. Click Save to restart the module. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 20: Tcp Server Instructions
1. Set "network debugging assistant" to TCP client, remote host IP to 192.168.4.101, and remote host port number to 8886. 2.Set the device socket A1 network type to TCPS (TCP server) and local port 8886. Click Save to restart the module. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 21: Udp Client Instructions
IP to 192.168.4.100, and local host port number to 8887. 2. Set the device socket A1 network type to udpc (UDP client), the target IP is 192.168.4.100, and the target port is 8887. Click Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 22: Udp Server Instructions
1. Set the "network debugging assistant" to UDP (this upper computer does not distinguish between UDP client and UDP server), the local host IP to 192.168.4.101, the local host port number to 8886, and the remote host to 192.168.4.101:8887. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... - Page 23 2. Set the device socket A1 network type to UDPs (UDP server), local IP to 192.168.4.100, and local port to 8887. Click Save to restart the module. 3. Open the serial port assistant, select the correct COM port and baud rate, and click "network debugging assistant" to open it for communication test. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd...
-
Page 24: Web Introduction
After the login is successful, the web page is entered. as the picture shows: Select one or more pages to browse and configure parameters according to specific needs (take serial port parameters as an example). Once you have filled in the parameters correctly, click Save Settings. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... - Page 25 Chengdu Ebyte Electronic Technology Co.,Ltd E810-DTU(1RS1E) User Manual The page will automatically jump to the module management page. After clicking restart module, the module will restart and the set parameters will take effect. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd...
-
Page 26: Faq
Unsatisfactory power supply may also cause garbled characters, and ensure the reliability of the power supply. If the extension cable or feeder is of poor quality or too long, the bit error rate will be high. Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd... -
Page 27: Revision History
Date Original version huaa Content added 2019-9-2 7.About us Website: www.ebyte.com Sales: info@cdebyte.com Support: support@cdebyte.com Tel: +86-28-61399028 Ext. 812 Fax: +86-28-64146160 ddress: Innovation Center B333~D347, 4# XI-XIN road,High-tech district (west), Chengdu, Sichuan, China Copyright ©2012–2019, Chengdu Ebyte Electronic Technology Co.,Ltd...
