Identifying Cables

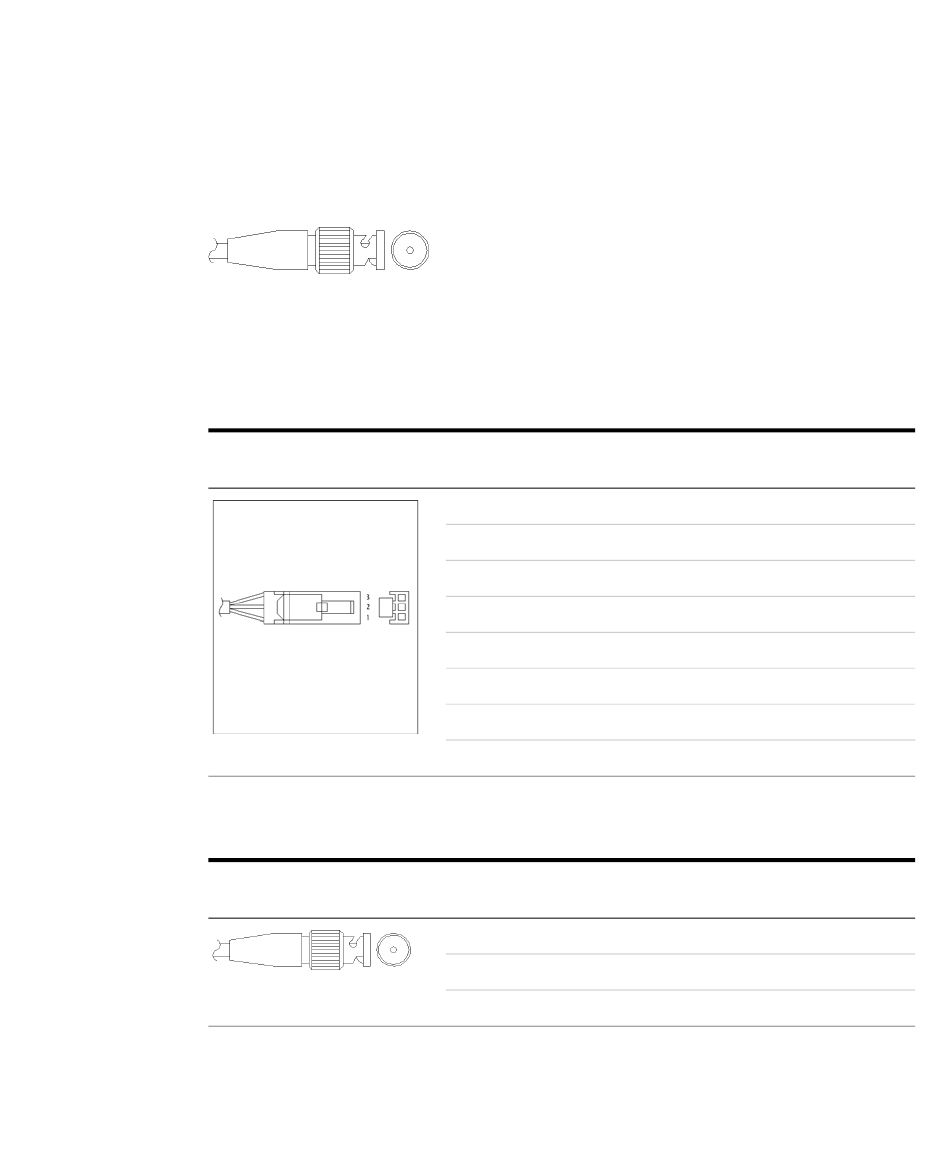

Analog cables
Analog cables
One end of these cables provides a BNC connector to be connected to Agilent
modules. The other end depends on the instrument to which connection is
being made.
Agilent Module to 3394/6 Integrators
p/n 35900-60750
Agilent Module to BNC Connector
p/n 8120-1840
166
Pin 3394/6 Pin Agilent
module
1
2 Shield
3 Center
Pin BNC Pin Agilent
module
Shield Shield
Center Center
Signal Name
Not connected
Analog -
Analog +
Signal Name
Analog -
Analog +
