Agilent Technologies 1290 Infinity User Manual page 18

8
Maintenance
Installing the capillaries
Configuration for sample enrichment

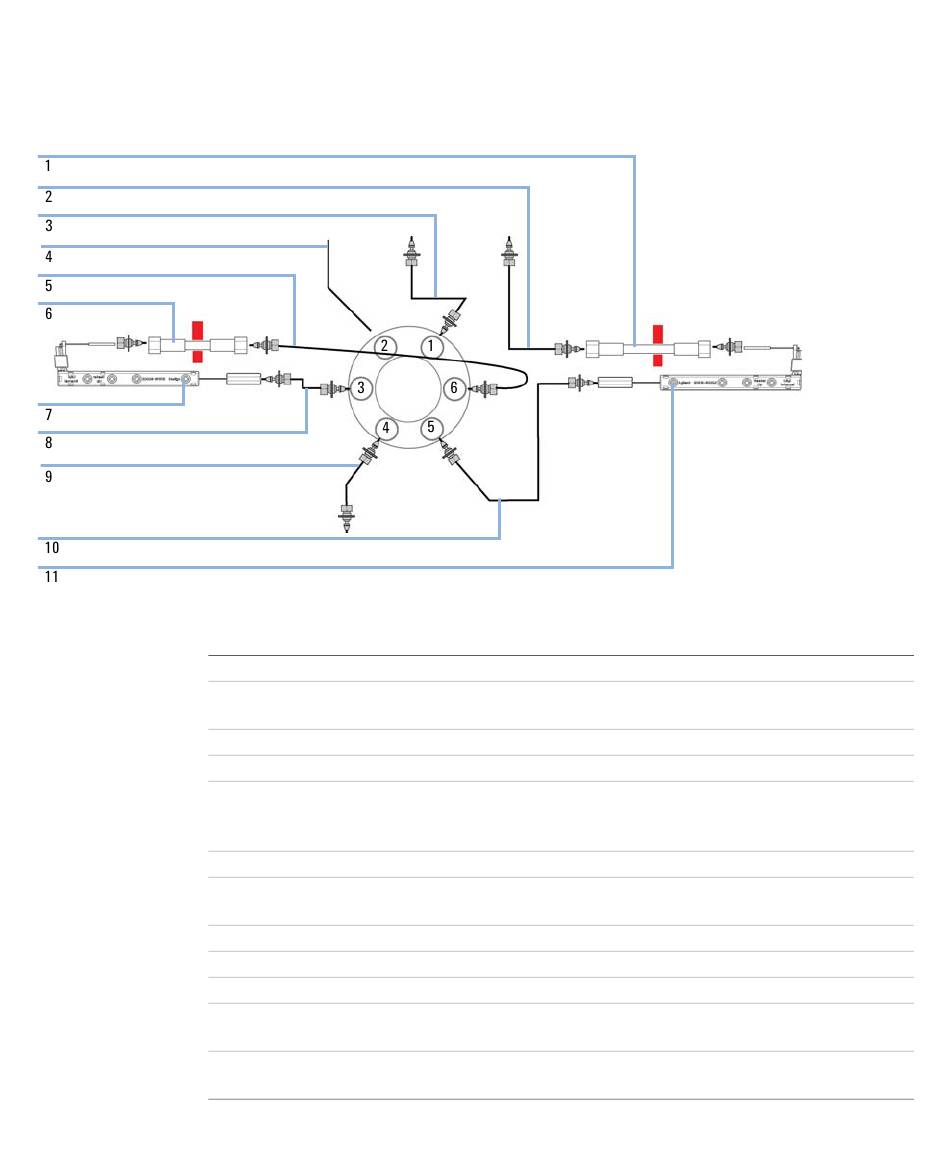

Figure 33
1
2
3
4
5
6
7
8
9
10
11
128
Installing the capillaries for a sample enrichment set-up
Analytical column with color code clip
280 mm length (column length > 100 mm) from analytical column to detector
Not pre-swaged on column-side!
340 mm length from autosampler and loading pump
To waste
150 mm length (column length up to 100 mm), 280 mm length (column length > 100 mm)
From column
Not pre-swaged on column-side!
Enrichment column with color code clip
Low dispersion heat exchanger or build-in 3 µL/6 µL heat exchanger and 90 mm length
capillary to column
90 mm length to heat exchanger
700 mm length (0.17 mm ID) from analytical pump
90 mm length to heat exchanger
Low dispersion heat exchanger or build-in 3 µL/6 µL heat exchanger and 90 mm length
capillary to column
Pos.1: Connection between ports 1-6 , 4-5, 2-3 , active column 1 = left (enrichment column)
Pos. 2: Connection between ports 1-2, 3-4, 5-6 active column 2 = right (analytical colum)
1290 Infinity TCC User Manual
