Bunn DUAL SH DBC Removal Instructions

INTRODUCTION
This kit is intended for use on all DUAL SH DBC
upper hot water faucet on the brewers can be removed using this kit.

KIT CONTENTS

ITEM PART NO.
1 12422.0001
2 05749.0004
3 29279.0000

INSTRUCTIONS

FAUCET REMOVAL MUST BE PERFORMED BY AUTHORIZED SERVICE PERSONNEL
ONLY!
WARNING: Disconnect brewer from power source before the removal of any panel or
replacement of any component.
WARNING: Water drained from the brewer and many internal parts are extremely
hot; allow contents of tank to cool before proceeding.

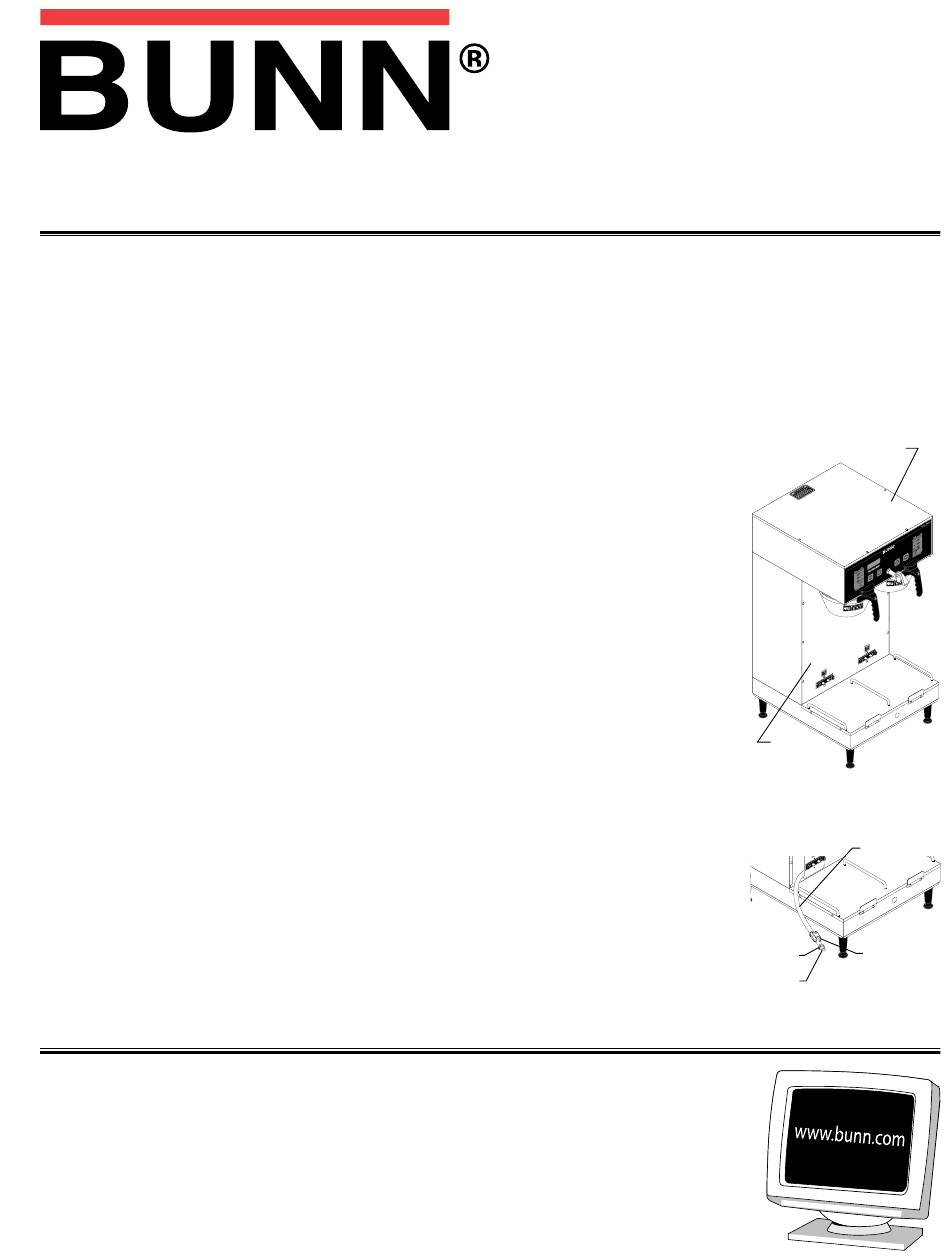

1. Remove the front access panel and top cover to gain access to the drain tube and
faucet tube. (FIG. 1)
2. Locate the end of the drain tube hose in the base of the brewer and pull it out.
(FIG. 2)
NOTE: If the brewer has been in service, the tank must be drained before proceeding.
44859.0000A 04/11 ©2011 Bunn-O-Matic Corporation
QTY. DESCRIPTION
1 Clamp, Hose-Snap Type
1 Plug, Hole Black .50"
1 Cap, Tube-Silicone
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
DUAL SH DBC/
SINGLE SH DBC
and SINGLE SH DBC
®
FAX: (217) 529-6644
FAUCET REMOVAL
INSTRUCTIONS
models with the Hi-Lime tank. The
®
Access
Panel
Clamp
Plug
Top Cover
O N
NT ER
U TI DE CA
C A CA RD
! DIS
IF: D TY
. CRA ATC CKE HED EMP ME
. SCR LED DRY WH EN H FLA CTR IC
. BOI TED ON D HIG ELE
. HEA . USE D EXP TS OSE Y
. OR MEN UR N
EN TS ELE KS INJ ATIO
NT RIS C COR POR
EL E HO CO T MP LY N-O- MATI
FU NN AR TO CO 1985 BUN
RE
FA ILU
658
PN:
O N ER
U TI CA NT
DE
C A CA RD
! DIS
IF: D
CKE HED EM PTY
. SCR . CRA D ATC DRY EN FLA ME IC
. BO ILE TED WH HIG H ELE CTR
. HEA D ON OSE D
. USE EXP NTS Y
. OR ELE ME INJ UR N
FIG 1 EN TS KS POR ATIO
CO NT LY RIS IC COR
E HO EL T MP N-O- MAT
FU NN AR TO CO BUN
RE 1985
FA ILU
PN: 658
Drain Tube
Pinch Valve
FIG 2
