GENERAL
The purpose of these instructions is to serve as a guide when installing one of the following kits and to pro-
vide a list of service replacement parts.
43147.0000
AUDIBLE ALERT KIT:
02618.0000
Relay, 120V SPDT
07441.0000
Bracket, Solenoid/Relay Mounting
02328.0000
Screw, Pan Head #6-32 X .375"
01510.0000
Lockwasher, Ext. Tooth #6
43142.0000
Wiring Harness
INSTRUCTIONS
WARNING: Disconnect the brewer from the power source before the removal of any panel or replacement of
any component.
1. Remove the Top Cover, Front Access Panel and the Server Platform
Cover from the Brewer.
2. Remove the Keps Nut securing the Transformer Holddown Strap, Fig 1.
3. From the Kit, position Relay/Mounting Bracket Assembly over stud and
secure with the Keps Nut.
4. Disconnect the white wire of the Main Harness, from the Refill Valve.
5. Connect the piggy back terminal on the short white wire of the Relay/
Bracket Assembly to the Refill Valve and the white wire of the Main
43148.0000A 05/10 ©2010 Bunn-O-Matic Corporation
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
DUAL SH DBC
ALERT KIT INSTRUCTIONS
43147.0001
02618.0000
07441.0000
02328.0000
01510.0000
43142.0000
29969.1040
(continued)
FAX: (217) 529-6644
FRESHNESS AUDIBLE
AUDIBLE ALERT KIT:
Relay, 120V SPDT
Bracket, Solenoid/Relay Mounting
Screw, Pan Head #6-32 X .375"
Lockwasher, Ext. Tooth #6
Wiring Harness
Circuit Board Assy, Dual SH DBC

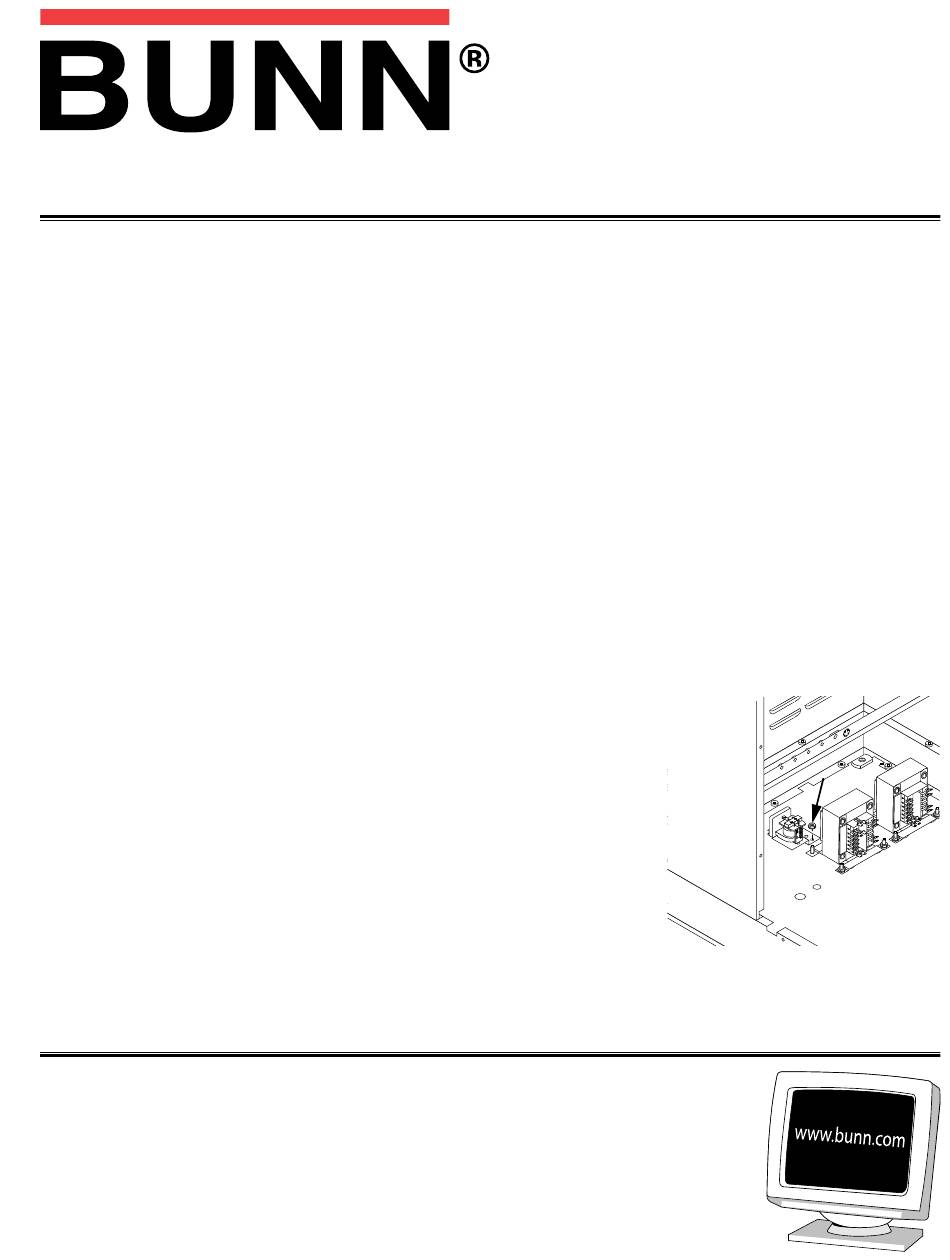

FIG 1

Advertisement

loading

Summary of Contents for Bunn DUAL SH DBC

  • Page 1 Wiring Harness 43142.0000 Wiring Harness 29969.1040 Circuit Board Assy, Dual SH DBC INSTRUCTIONS WARNING: Disconnect the brewer from the power source before the removal of any panel or replacement of any component. 1. Remove the Top Cover, Front Access Panel and the Server Platform Cover from the Brewer.
  • Page 2 Violet wires from termi- nals 5 & 7 of the relay to be routed out the bottom WHITE wires from termi- of brewer thru the power nals A & B of the relay to cable connector refill valve and J11-1 on main circuit board FIG 2 Harness to the piggy back terminal.
