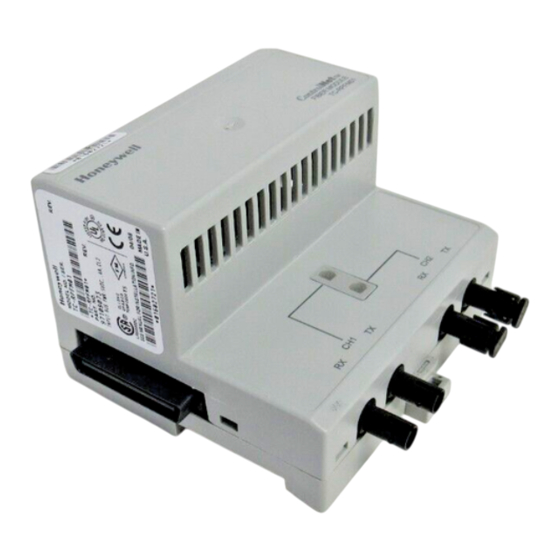

Honeywell TC-RPFM01 Implemenation Manual

Experion pks controlnet fiber optic
Hide thumbs

Advertisement

Quick Links

Experion PKS
ControlNet Fiber Optic
Implemenation Guide
EP-DCX293
R210
10/04

Advertisement

loading

  Summary of Contents for Honeywell TC-RPFM01

  • Page 1 Experion PKS ControlNet Fiber Optic Implemenation Guide EP-DCX293 R210 10/04...
  • Page 2 In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information and specifications in this document are subject to change without notice.
  • Page 3: About This Document

    10/25/04 Initial Release References The following list identifies all documents that may be sources of reference for material discussed in this publication. Document Title Doc ID ControlNet Installation Guide EP-DCXX43 R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 4 About This Document Contacts World Wide Web The following lists Honeywell’s World Wide Web sites that will be of interest to our industrial automation and control customers. Honeywell Organization WWW Address (URL) Corporate http://www.honeywell.com Automation & Control Solutions http://www.acs.honeywell.com International http://www.honeywell.com/Business/global.asp...
  • Page 5 The symbol appears next to required information in the manual. WARNING, Risk of electrical shock: Potential shock hazard where HAZARDOUS LIVE voltages greater than 30 Vrms, 42.4 Vpeak, or 60 VDC may be accessible. R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 6 Chassis Ground: Identifies a connection to the chassis or frame of the equipment shall be bonded to Protective Earth at the source of supply in accordance with national and local electrical code requirements. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 7: Table Of Contents

    Short-Distance Fiber Module....................24 Medium-Distance Fiber Module ...................25 Specifications ......................26 ControlNet Repeater Adapter TC-RPA002................26 Short-Distance Fiber Module TC-RPFS01 ................27 Medium-Distance Fiber Module TC-RPFM01 ..............28 Appendix A ....................25 CSA Hazardous Location Approval ................25 About CSA ...........................25 R210 Experion PKS ControlNet Fiber Optic Implemenation Guide...
  • Page 8 Temperature Ratings......................26 Notices ..........................26 Approbation d’utilisation dans des environments dangereux par la CSA ....27 La CSA..........................27 La certification CSA......................27 Autour de temperature ......................27 Discerner ..........................28 viii Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 9 Figure 2 Front view ControlNet Repeater Adapter model TC-RPA002......8 Figure 3 Example of redundant ControlNet cabling using fiber media......13 Figure 4 Front view ControlNet Fiber Module model TC-RPFM01 or TC-RPFS01..14 Figure 5 Typical Repeater/Fiber hub cabling for non-redundant ControlNet media..18 Figure 6 Typical Repeater/Fiber hub cabling for non-redundant ControlNet media using a second hub in series to extend cable distance.
  • Page 10 Figures Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 11: Controlnet Fiber Media

    Each Repeater Adapter supports up to four Fiber Modules. Each Fiber Module has a pair of Receive and Transmit ports for fiber optic cable connections. ControlNet ControlNet Repeater Adapter Fiber Module TC-RPA001 TC-RPFM01 MODULE STATUS CH 1 CH 2 Transmit Receive Channel 2 Channel 1...
  • Page 12: Repeater/Fiber Hub

    The Fiber Module is available in a short distance model TC-RPFS01 and a medium distance model TC-RPFM01. The TC-RPFS01 short-distance, Fiber Module supports fiber optic trunk segments up to 300 meters (984 feet) in length. The TC-RPFM01 medium-distance, Fiber Module supports fiber optic trunk segments up to 3 kilometers (9,842 feet) or more in length.
  • Page 13 300 meters 1786-FS300 Cable Making Accessories Allen-Bradley Part Number Bulk Cable (500 meters) 1786-FSB500 Connector Kit (10 blue v-pins, 10 black v- 1786-FSKIT pins, and 10 clamshells) Termination Kit 1403-NTOL R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 14: Fiber Optic Cable Handling Guidelines

    Review all cable parameters and specifications before installation. Be sure you have the proper amount of connectors and installation equipment. Never attempt to use non- compatible connectors and installation tools. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 15: Segment And Link Planning Considerations

    Each Fiber Module used to connect one fiber optic segment to another in the path. • The total length of ControlNet coax and fiber optic cable between any two nodes can not be more than 10 km (32,808 ft). R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 16: Network Update Time (Nut) Considerations

    You can use the Network Tools (NTools) utility supplied with the Experion PKS Engineering Tools to change the network parameters (Keeper Values) in a CNI with an address of one. Please refer to the NTools online Help for more information. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 17: About The Optical Power Budget

    The suitability of the enclosure and installed system shall be acceptable to the local “authority having jurisdiction,” as defined in the NEC, or “authorized person” as defined in the CEC. R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 18: Installing Controlnet Repeater Adapter

    For redundant ControlNet media support, a second Repeater Adapter is required. • Be sure you install the ControlNet Repeater Adapter at the left end of a Repeater Adapter and Fiber Module hub. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 19 Leave the protective covers on the connectors until you are ready to make the connections. For redundant ControlNet media, repeat this procedure to mount a second Repeater Adapter on a separate DIN rail. R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 20: Wiring

    Failure to do so may cause damage to the Repeater. • Do not connect more that four Fiber Modules or exceed the power limit (1.6 A @ 5 Vdc) to avoid damaging the Repeater and Fiber Modules. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 21 (COAX) LED (which will be lit to indicate no cable is connected). Otherwise, use a coax drop cable to make a connection to a local trunk cable as noted above.) R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 22 If applicable, use the B (+ V) and D (– COM) terminals to “daisy chain” 24 Vdc power to another module. Use the red and yellow cable markers supplied with taps to mark the A and B cables, respectively, in a redundant-media system. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 23: Figure 3 Example Of Redundant Controlnet Cabling Using Fiber Media

    Fiber Hub Cont rolNet Cont rolNet Cont rolNet Cont rolNet Repeat er Adapter Fiber Module Repeat er Adapt er Fib er Mo dule TC-RPA001 TC-RPFM01 TC-RPA001 TC-RPFM01 Chan 1 Chan 1 Chan 2 Chan 2 24Vdc 24Vdc Fiber B Coax B Coax B Figure 3 Example of redundant ControlNet cabling using fiber media.
  • Page 24: Installing Controlnet Fiber Module

    DIN Rail Receive Channel 1 Locking Tab Channel 2 Figure 4 Front view ControlNet Fiber Module model TC-RPFM01 or TC- RPFS01. Mounting on a DIN rail ATTENTION This procedure assumes that a ControlNet Repeater Adapter with or without a ControlNet Fiber Module is already installed and that the power supply is turned Off.
  • Page 25 ) Leave the protective cover on the backplane bus connector on the right side of the module until you are ready to make the connection. R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 26: Wiring

    TX connector in Step a. Never connect the cable between channel 1 or channel 2 on the same Fiber Module or a different Fiber Module on the same Repeater/Fiber hub. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 27 (Note that the Fiber Module does not have a power switch, so it is powered whenever the Repeater Adapter is powered.) If applicable, repeat Step 1 for redundant ControlNet media. Refer to Figures 5, 6, and 7 for examples of Repeater/Fiber hub cabling. R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 28: Figure 5 Typical Repeater/Fiber Hub Cabling For Non-Redundant Controlnet Media

    ControlNet Fiber Media Installing ControlNet Fiber Module TC-RPFM01 TC-RPA001 TC-RPA001 TC-RPFM01 CH 1 CH 2 CH 1 CH 2 24Vdc 24Vdc Fiber Optic Segment Local Coax Trunk Remote Coax Trunk Figure 5 Typical Repeater/Fiber hub cabling for non-redundant ControlNet media.
  • Page 29: Figure 7 Typical Repeater/Fiber Hub Cabling For Non-Redundant Controlnet Media In Support Of Two Coax Segments

    ControlNet Fiber Media Installing ControlNet Fiber Module TC-RPFM01 TC-RPFM01 TC-RPA001 TC-RPA001 CH 2 CH 1 CH 1 CH 2 RX TX RX TX RX TX RX TX 24Vdc 24Vdc Fiber Optic Segment Local Coax Trunk A Remote Coax Trunk A...
  • Page 30: Interpreting Component Led Indications

    • If a jabber condition is not causing the fault, replace the Repeater. If either LED is flashing . . . This means . . . Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 31: Fiber Module Leds

    The Fiber Module is not receiving power from the Repeater Adapter or the Fiber Module is faulted. Flashing Green/Off No data activity on the associated channel. Green Normal channel operation R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 32: Checking Fiber Optic Cable Measurements

    Distance to an event (splice, bend, connector) that attenuates the light. • Distance between two attenuating events. • Light attenuation between two points of the cable. • Total reflected light or light reflected from a single event. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 33: Dimensions

    ControlNet Fiber Media Dimensions Dimensions ControlNet Repeater Adapter R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 34: Short-Distance Fiber Module

    ControlNet Fiber Media Dimensions Short-Distance Fiber Module Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 35: Medium-Distance Fiber Module

    ControlNet Fiber Media Dimensions Medium-Distance Fiber Module R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 36: Specifications

    Non-Operating: 50g peak acceleration, 11 (+/-1) ms pulse width Vibration Test 5 g @ 10 to 500Hz, according to IEC 68-2-6 Physical Power Conductor Wire Size Minimum: 24 AWG Maximum: 14 AWG Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 37: Short-Distance Fiber Module Tc-Rpfs01

    ControlNet Fiber Media Specifications ControlNet Cable Drop cable from ControlNet tap See Experion PKS Specifications. The Experion PKS specifications can be found on the Honeywell website: http://www.acs.honeywell.com/ . Just follow the Experion PKS product links. Weight Approximately 230g (0.5lb) Short-Distance Fiber Module TC-RPFS01...
  • Page 38: Medium-Distance Fiber Module Tc-Rpfm01

    ControlNet Fiber Media Specifications Medium-Distance Fiber Module TC-RPFM01 Parameter Description General Backplane Power 400mA at 5Vdc maximum Requirements Fiber Operating Wavelength 1300nm Optical Power Budget 9.3dB Communication Rate 5M bits/s Operating Conditions Ambient Temperature 0 C to 60 C (32 F to 140 F) Storage Temperature –40 C to 85 C (–40 F to 185 F)
  • Page 39: Csa Hazardous Location Approval

    Groups A, B, C, D) are certified for use in other equipment where the suitability of combination (that is, application or use) is determined by the CSA or the local inspection office having jurisdiction. R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 40: Temperature Ratings

    15 Newton (3.4 lbf) separating force applied for a minimum of one minute. • If the Product contains batteries, they must only be changed in an area known to be non-hazardous. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 41: Approbation D'utilisation Dans Des Environments Dangereux Par La Csa

    De par la nature modulaire des systèmes de commande programmables, le produit ayant le code de température le plus élevé détermine le code de température global du système dans un environnement de Classe 1, Division R210 Experion PKS ControlNet Fiber Optic Implemenation Guide 10/04 Honeywell...
  • Page 42: Discerner

    • S'assurer que l'environnement est classé non dangereux avant de changer les piles. Le sigle CSA est une marque déposée de l’Association des Standards pour le Canada. Experion PKS ControlNet Fiber Optic Implemenation Guide R210 Honeywell 10/04...
  • Page 44 Automation and Control Solutions Honeywell International Inc. 1100 Virginia Drive Fort Washington, PA 19034...
