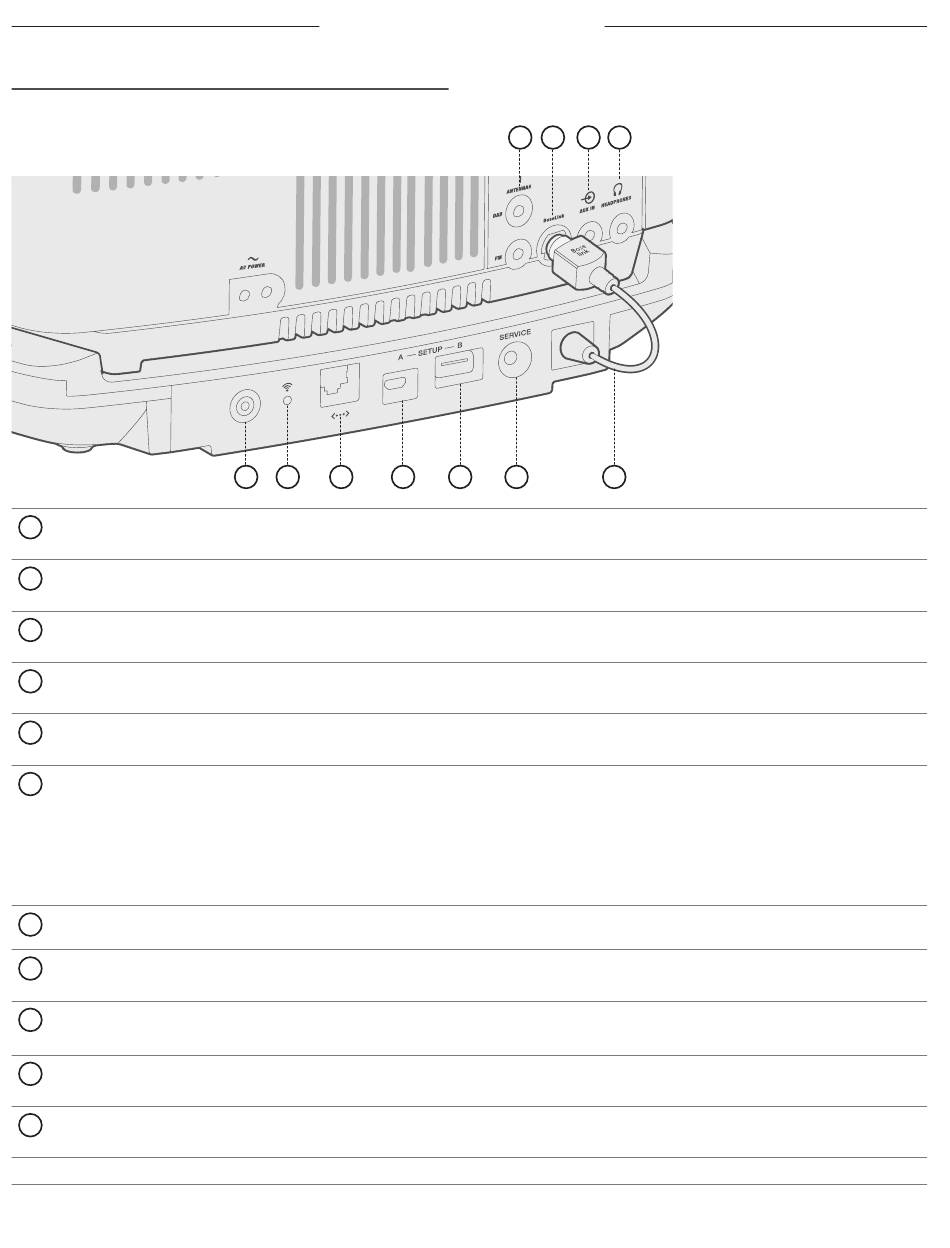

System connections

The connector panel provides connections for external equipment.
1 ANTENNA
3.5 mm FM antenna and 2.5 mm DAB antenna connectors .
2
BoseLink connector
Input connector for the SoundTouch pedestal.
3 AUX IN connector
3.5 mm stereo input connector for external sources.
4 HEADPHONES
3.5 mm input connector for headphones
5
Control button
Disables Wi-Fi, initiates setup mode or restarts the SoundTouch pedestal (see page 11).
6 Wi-Fi indicator:
• Blinking white – Searching for Wi-Fi network
• Solid white (dim) – Power-saving mode and connected to Wi-Fi network
• Solid white (bright) – System is on and connected to Wi-Fi network
• Solid amber – System is in setup mode
• Off – Wi-Fi networking disabled or system is connected to Ethernet
7 Ethernet connector
Used for a wired network connection.
8
SETUP A
USB Micro-B connector for network setup using a computer.
9 *
SETUP B
USB Standard A connector reserved for future use.
10 SERVICE connector
Used for special service functions. Not for customer use.
SoundTouch pedestal Bose link cable
11
Plugs into the Bose link connector. It provides power and control signals to the SoundTouch pedestal.
*
The USB connectors are not designed to charge smartphones, tablets or similar devices.
OTH ER EQU I P ME N T CONNE CTIO NS
5 6 7 8
1 2 3 4
9 10 11
|
