SIM802 Hardware Design

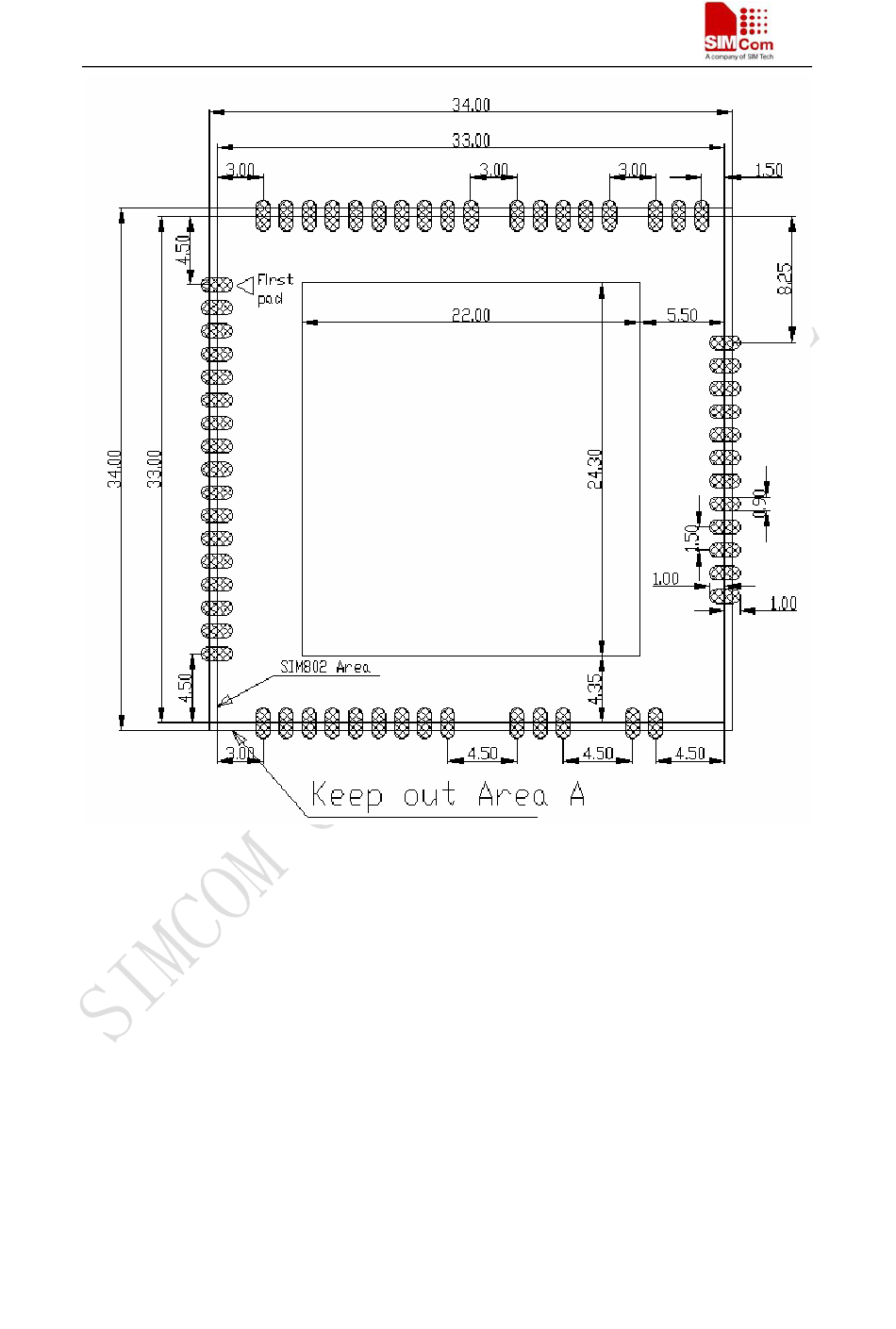

Figure 41: Footprint recommendation

：
Notes
Keep out on the user mainboard below the test point and the keep out area, as these are solder
mask.
For maintain this module, the placement must be keep a distance between the module and other
component about 3 mm, and the height of near components must less than 16mm.
68
SIM802_HD_V2.01 12.01.2010
